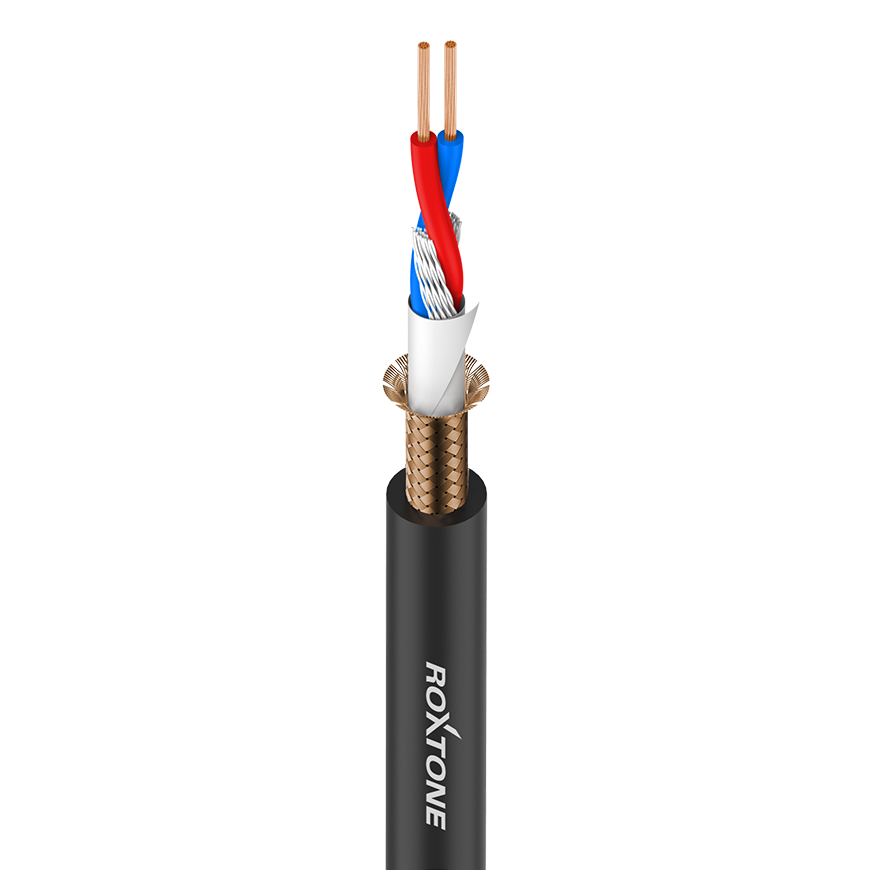

MC214
Balanced patch cable for installation - 22AWG - 2 x 0.14mm²

Features

• Very thin PVC jacket with a diameter of 4,4mm, suitable for the wiring inside the cabinet, save more space

• Durability due to the special robust PVC jacket

• Highly flexible due to a professional stranded wire technology


Applications

• Internal wiring of racks, audio and HiFi components


Cable Colour

• Black


Technical Data

Jacket, diameter
PVC 4.4 mm
AWG
22
No. of inner conductors
2 x 0.14 mm²
Copper strand per conductor
18 x 0.10 mm
Conductor insulation
PE 1.10 mm
Shielding

Copper sprial shielding

with 96 x 0.10mm

Shielding factor
85 %
Temperature range
min.-20 °C
Temperature range
max.70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
57.5 pF
Capac. cond./shield. per 1 m
102 pF
Cond. resistance per 1 km
117.45 Ω
Shield. resistance per 1 km
24.55 Ω



Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
