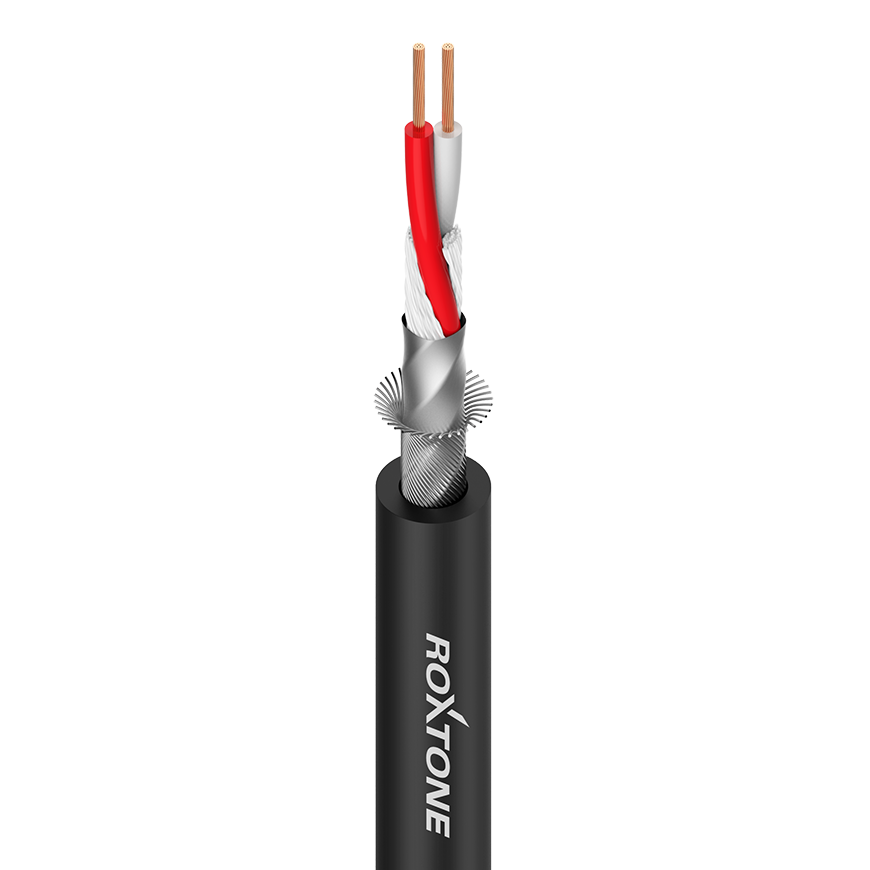

MC022
Balanced microphone cable - 20AWG - 2 x 0.50mm²

Features

• Optimum transmission quality even for long lengthsdue to the large wire diameter of 2 x 0.50 mm²

• 100 % Copper spiral shielding and additional AL fleece

• High durability due to a thick PVC jacket with a diameter of 6.8mm

• Easy to wind and good tensile strength


Applications

• Broadcast and building installation

• Professional studio technology

• Tough stage application for long lengths use


Cable Colour

• Black

• Blue


Technical Data

Jacket, diameter
PVC 6.8 mm
AWG
20
No. of inner conductors
2 x 0.50 mm²
Copper strand per conductor
28 x 0.15 mm
Conductor insulation
PE 1.65 mm
Shielding

tin plated copper spiral
shielding with 80 x 0.10 mm
+  AL fleece

Shielding factor
100 %
Temperature range
min.-20 °C
Temperature range
max.70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
87 pF
Capac. cond./shield. per 1 m
165 pF
Cond. resistance per 1 km
34 Ω
Shield. resistance per 1 km
29 Ω
Insulation resist. per 1 km
> 1 GΩ



Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
