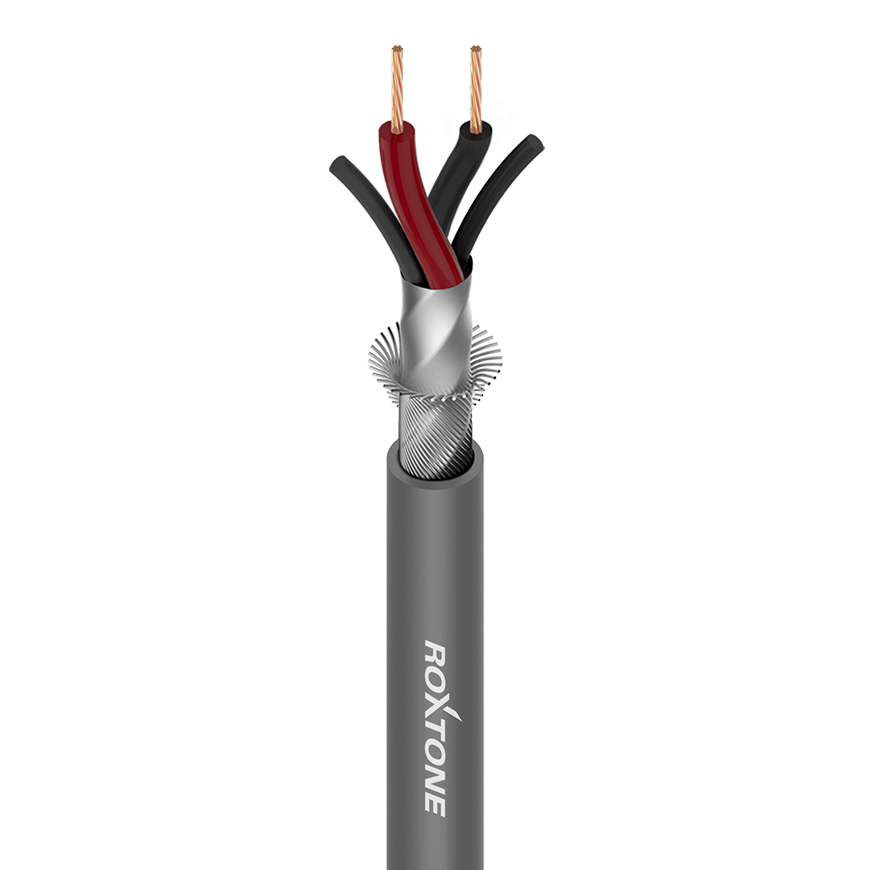

Features
• Optimum transmission quality even for long lengths due to the large wire diameter of 2 x 0.50 mm²
•
100 % Copper spiral shielding and additional AL fleece
•
High durability due to a thick LSZH jacket with a diameter of 5.2mm
• Easy to wind and good tensile strength
• Low smoking and zero halogen suitable for permanent installation in places with specific security condition
Applications
• Broadcast and building installation
• Professional studio technology
• Tough stage application for long lengths use
Cable Colour
• Grey
Technical Data
|
MC022L
|
Jacket, diameter
|
LSZH 5.2 mm
|
AWG
|
20
|
No. of inner conductors
|
2 x 0.50 mm²
|
Copper strand per conductor
|
28 x 0.15 mm
|
Conductor insulation
|
LLDPE
|
Shielding
|
Tin plated copper spiral shielding
with 80 x 0.10 mm + AL fleece
|
Shielding factor
|
100 %
|
Temperature range
|
min. -40 °C
|
Temperature range
|
max. +90 °C
|
Packaging
|
100/200 m roll
|
|
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
100 pF
|
Capac. cond./shield. per 1 m
|
185 pF
|
Cond. resistance per 1 m
|
35 mΩ
|
Shield. resistance per 1 m
|
30.4 mΩ
|
