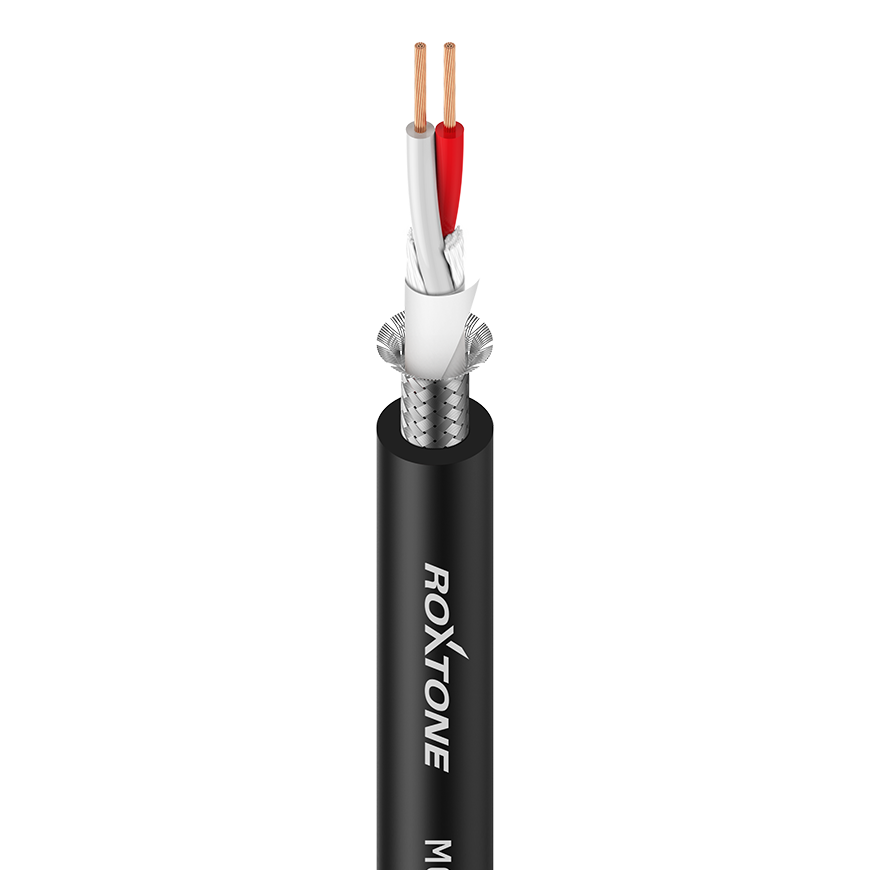

MC010
Balanced microphone cable - 22AWG - 2 x 0.30mm²

Features

• High transmission quality through the use of OFC stranding with a large wire diameter of 2 x 0.30 mm²

• Very low capacity due to the PE insulation

• Good protection due to the dense copper braided shielding

• High flexibility makes it easy to wind


Applications

• Stage

• Mobile

• Studio

• Installations


Cable Colour

• Black

• Blue


Technical Data

Jacket, diameter
PVC 6.5 mm
AWG
22
No. of inner conductors
2 x 0.30 mm²
Copper strand per conductor
38 x 0.10 mm
Conductor insulation
PE 1.50 mm
Shielding

tin plated copper braided

shielding

with 128 x 0.10 mm

Shielding factor
95%
Temperature range
min. -20 °C
Temperature range
max. 70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
60 pF
Capac. cond./shield. per 1 m
120 pF
Cond. resistance per 1 km
53 Ω
Shield. resistance per 1 km
25 Ω
Insulation resist. per 1 km
> 1 GΩ
Surge impedance
approx. 100Ω


Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
