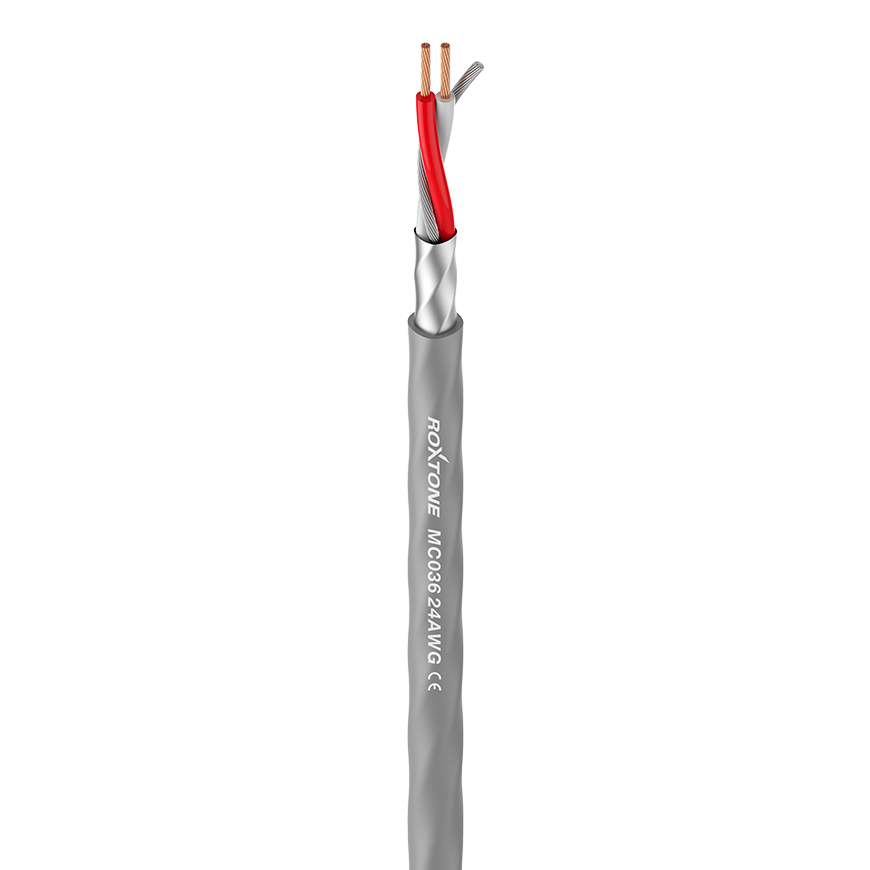

MC036
Balanced microphone cable - 24AWG - 2 x 0.22mm²

Features
• Very thin PVC jacket with a diameter of 3.7mm, suitable for the wiring inside thecabinet, save more space

• Durability due to the special robust PVC jacket

• Use special LLDPE for the insulation, ensure a good electrical performanceand tensile strength

• Wonderful shielding 100% provided by AL fleece and drain wire

• Highly flexible due to a professional stranded wire technology


Applications

• Internal wiring of racks

• audio and HiFi components


Cable Colour

• Grey

• Black


Technical Data

Jacket, diameter
PVC 3.7 mm
AWG
24
No. of inner conductors
2 x 0.22 mm²
Copper strand per conductor
20 x 0.12 mm
Conductor insulation
LLDPE 1.40 mm
Drain Wire
25 x 0.12mm Tin copper
Shielding
AL fleece
Shielding factor
100%
Temperature range
min. -20 °C
Temperature range
max. 70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
68 pF
Capac. cond./shield. per 1 m
130 pF
Cond. resistance per 1 km
53 Ω





Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
