MC080

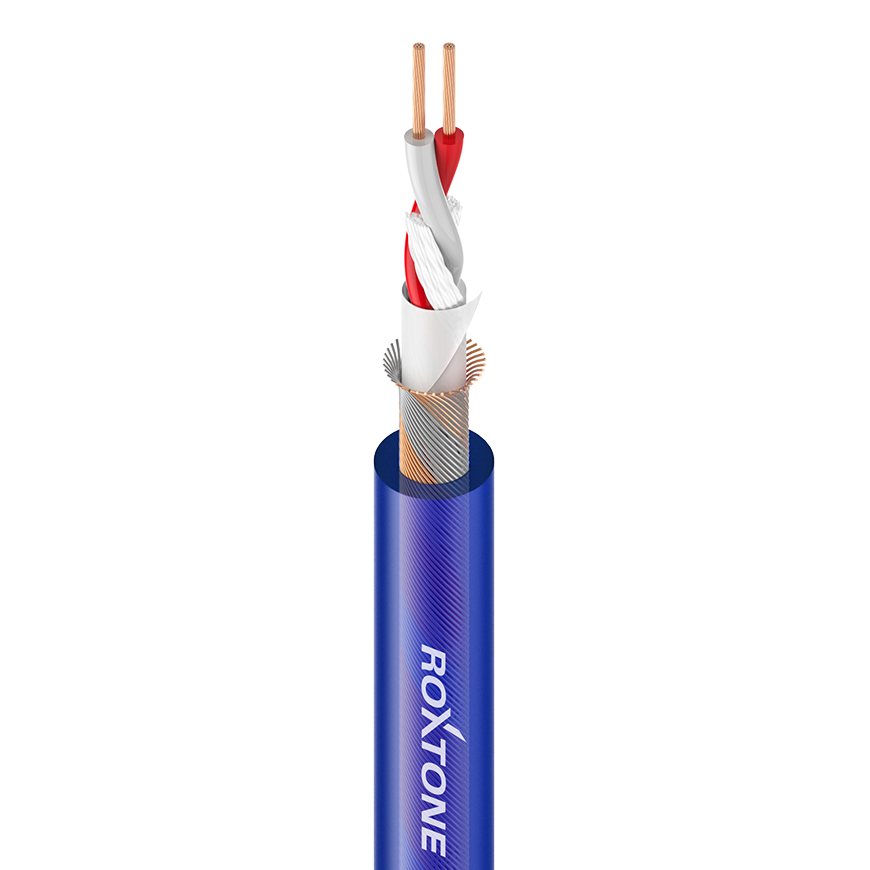

Matte transparent microphone cable - 23AWG - 2 x 0.25mm²

Features

• Excellent tensile strength due to use of Tinsel wire

• The use of OFC strands and a large conductor cross-section of 2 x 0.25 mm² ensure high-quality signal transmission

• Very low capacitance due to thick PE insulation

• Good shielding provided by dense copper and Tinsel wire spiral shielding

• Highly flexible due to high quality material and professional stranded wire technology


Applications

• Stage

• Mobile

• KTV


Cable Colour

• Transparent Blue

• Transparent Red


Technical Data

Jacket, diameter PVC
6.8 mm
AWG
23
No. of inner conductors
2 x 0.25 mm²
Copper strand per conductor

32 x 0.10mm Bare copper

+ 3 x 0.23mm Tinsel wire

Conductor insulation
LLDPE 1.55 mm
Shielding

32 x 0.12 mm Tin copper

+ 40 x 0.23 mm Tinsel wire

spiral shielding

Shielding factor
95 %
Temperature range
min.-20 °C
Temperature range
max.70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
60 pF
Capac. cond./shield. per 1 m
115 pF
Cond. resistance per 1 km
< 80 Ω
Shield. resistance per 1 km
53 Ω
Insulation resist. per 1 km
> 1 GΩ
Surge impedance approx.100Ω



Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
