MC006

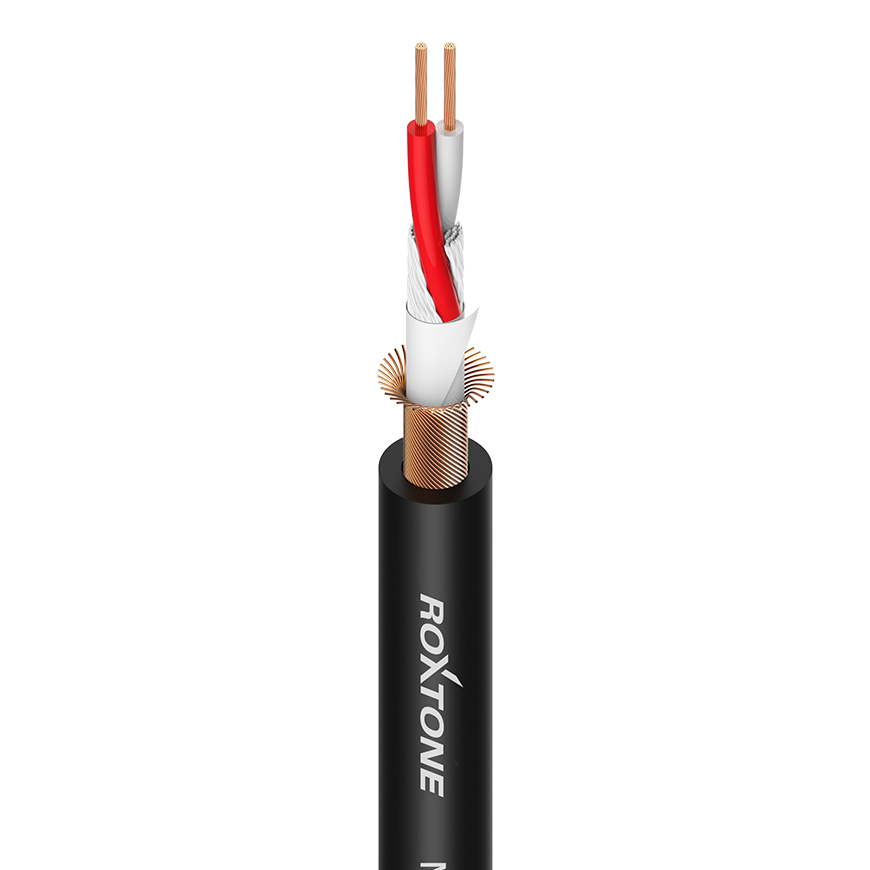

Balanced microphone cable - 22AWG - 2 x 0.34mm²

Features

The use of OFC strands and a large conductor cross-sectionof 2 x 0.34 mm² ensure high-quality signal transmission

Very low capacitance due to thick PE insulation

Good shielding provided by dense copper spiral shielding

• Highly flexible, well-suited for use with cable drums

Applications

Stage

Studio

Installations

Cable Colour

• Black
• Blue


Technical Data

Jacket, diameter
PVC 6.5mm
AWG
22
No. of inner conductors
2 x 0.34 mm²
Copper strand per conductor
19 x 0.15 mm
Conductor insulation
PE 1.50 mm
Shielding

copper spiral shielding

with 80 x 0.10 mm

Shielding factor
95 %
Temperature range
min. -20 °C
Temperature range
max70 °C
Packaging
100/300 m roll


Electrical Data
Capac. cond./cond. per 1 m
58 pF
Capac. cond./shield. per 1 m
115 pF
Cond. resistance per 1 km
53 Ω
Shield. resistance per 1 km
25 Ω
Insulation resist. per 1 km
> 1 GΩ
Surge impedance
approx.100 Ω




Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
