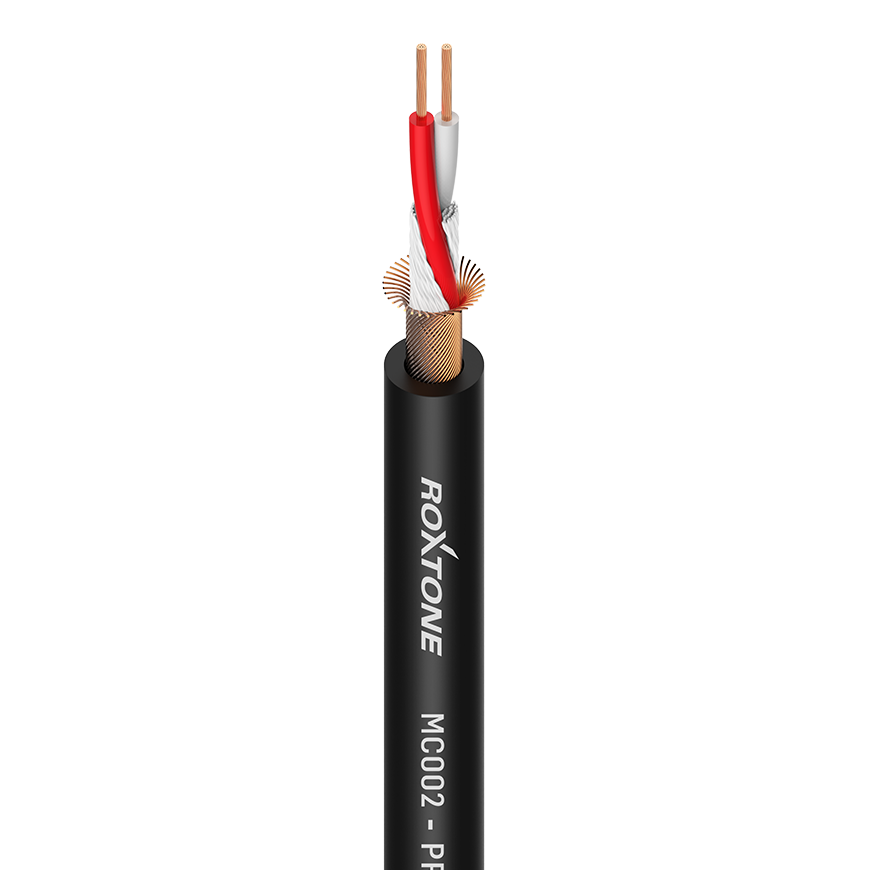

MC002
Balanced microphone cable - 24AWG - 2 x 0.22mm²

Features

• Fine stranded wire for high-quality signal transmission

• Very robust, with thick soft PVC jacket

• Good shielding provided by dense copper spiral shielding

• Highly flexible, well-suited for use with cable drums

• Attractively priced

Applications
• Stage

• Home recording

Cable Colour
• Black
• Red
• Yellow
• Blue
• Green


Technical Data

Jacket, diameter
PVC 6.0 mm
AWG
24
No. of inner conductors
2 x 0.22 mm²
Copper strand per conductor
28 x 0.10 mm
Conductor insulation
PE 1.40 mm
Shielding

copper spiral shielding

with 80 x 0.10 mm

Shielding factor
95 %
Temperature range
min. -20 °C
Temperature range
max70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
58 pF
Capac. cond./shield. per 1 m
115 pF
Cond. resistance per 1 km
53 Ω
Shield. resistance per 1 km
25 Ω
Insulation resist. per 1 km
> 1 GΩ
Surge impedance
approx.100 Ω




Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
