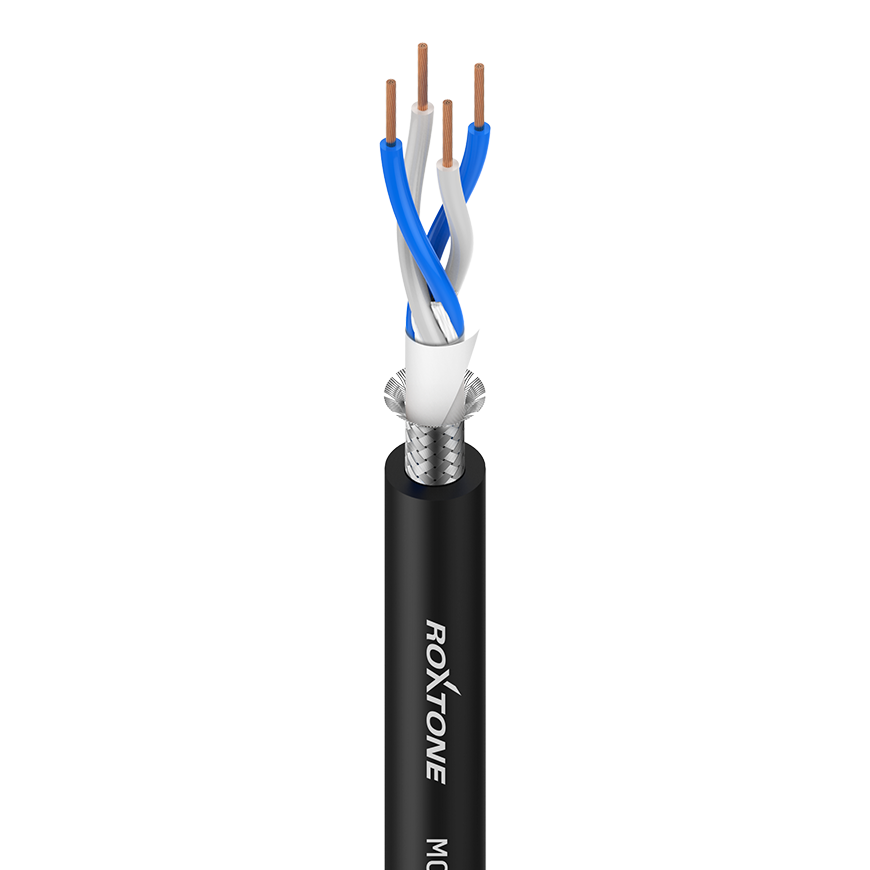

MC040
Starquad microphone cable - 24AWG - 4 x 0.22mm²

Features

• Noise-free due to the crossover connection of 4 individual wires

• Very low capacitance when 4 conductors to be wired crossover

• Very good transmission safety and linear sound transmission

• The shields are super flexible and offer outstanding noise rejection


Applications

• Professional studio and microphone technology

• Connection of effect and control units needing a return signal

• Professional MIDI-technology transmission cable

• High end connection of HiFi-units


Cable Colour

• Black

• Blue


Technical Data

Jacket, diameter
PVC 6.2 mm
AWG
24
No. of inner conductors
4 x 0.22 mm²
Copper strand per conductor
28 x 0.10 mm
Conductor insulation
PE 1.40 mm
Shielding

tin plated copper braided

shielding with 128 x 0.10mm

Shielding factor
95 %
Temperature range
min.-20 °C
Temperature range
max.70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
60 pF (37 pF Crossover)
Capac. cond./shield. per 1 m
115 pF (76 pF Crossover)
Cond. resistance per 1 km
<93 Ω
Shield. resistance per 1 km
21 Ω
Insulation resist. per 1 km
> 1 GΩ



Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
