MC214F

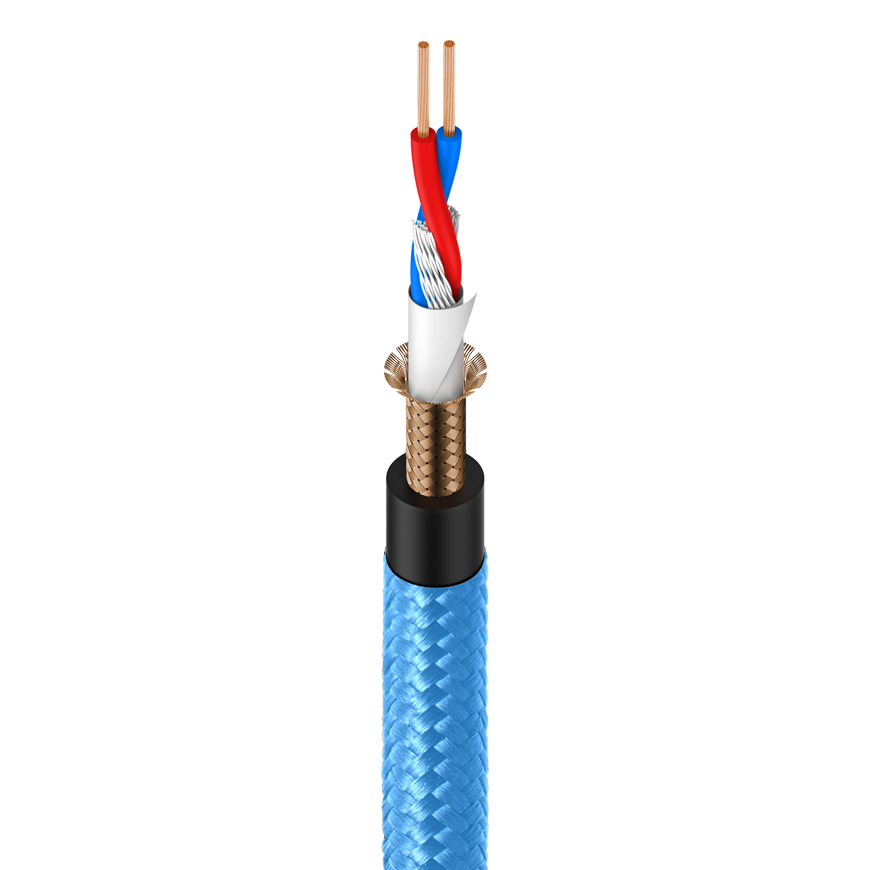

Balanced patch cable for installation - 26AWG - 2 x 0.14mm²
Qtys:
30
Unit: metre(s)
INQUIRY LIST

Features

• Ideal for patch cables owing to its small outside diameter
• Thin jacket, suitable for the internal wiring, save more space
• High quality and flexibility, well-suited for use with mini XLR
• Use special LLDPE for the insulation, ensure a good electrical performance and tensile strength


Applications

• Professional studio patch connection
• Interior rack wiring and connection of audio components and effects devices
• Long-distance MIDI cabling
• High-quality mini XLR microphone cable


Cable Colour

• Black(Robust textile jacket)


• Blue(Robust textile jacket)

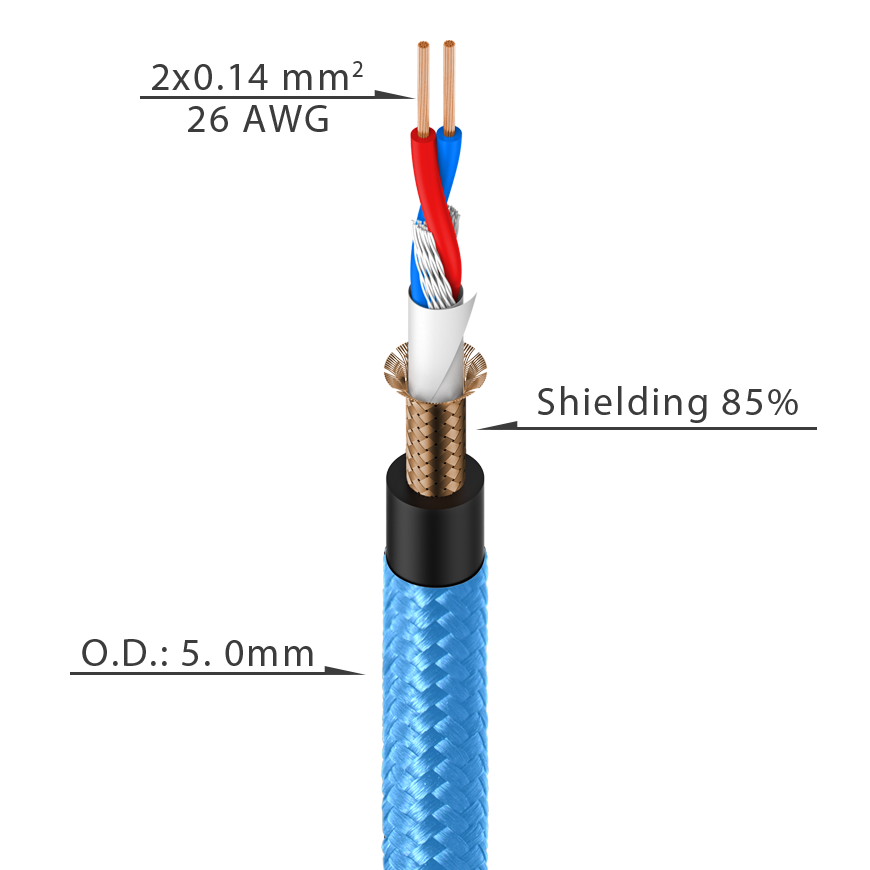

Technical Data
MC214F
Jacket, diameter
PVC with fabric 5.0mm
AWG
26
No. of inner conductors
2 x 0.14 mm²
Copper strand per conductor
18 x 0.10 mm
Conductor insulation
LLDPE
Shielding

Braided shielding

with 96 x 0.10mm

Shielding factor
85 %
Temperature range
min. -20 °C
Temperature range
max. +70 °C
Packaging
100/200 m roll


Electrical Data

Capac. cond./cond. per 1 m
52 pF
Capac. cond./shield. per 1 m
106 pF
Cond. resistance per 1 m
119.7 mΩ
Shield. resistance per 1 m
23.35 mΩ
