Features
• Optimum shielding with dense copper spiral shielding + AL/PT-foil
• Small diameter, thus suitable for use with RCA-connectors
• Very reasonable price
• Low smoking and zero halogen suitable for permanent installation in places with specific security condition
Applications
• Studio patch cabling
• Control of lighting, scanner units, and displays
• Permanent installation
Cable Colour
• Grey

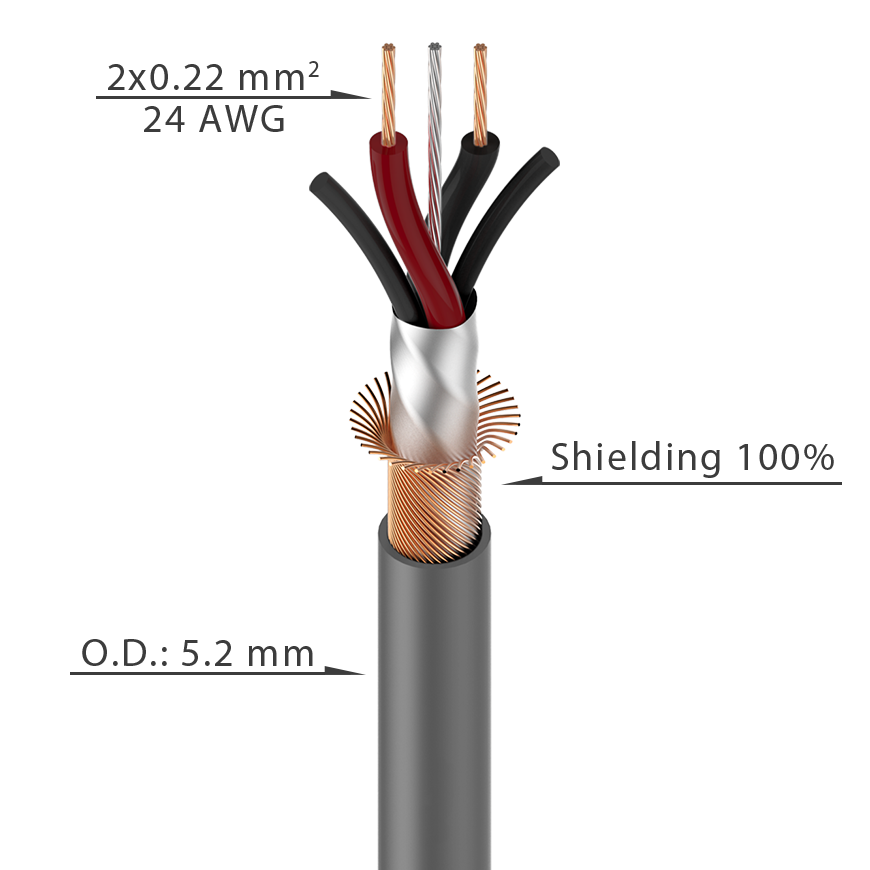

Technical Data
|
|
Jacket, diameter
|
LSZH 5.2 mm
|
AWG
|
24
|
No. of inner conductors
|
2 x 0.22 mm²
|
Copper strand per conductor
|
7 x 0.20 mm
|
Conductor insulation
|
Flame retardant PE
|
Drain Wire
|
Tin plated copper 10 x 0.15 mm
|
Shielding
|
Copper spiral shielding
with 80 x 0.10 mm
+ AL/PT-foil+PE filler
|
Shielding factor
|
100 %
|
Temperature range
|
min. -40 °C
|
Temperature range
|
max. +105 °C
|
Packaging
|
100/300 m roll
|
|
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
67 pF
|
Capac.
cond./shield. per 1 m
|
125 pF
|
Cond.
resistance per 1 m
|
82 mΩ
|
Shield.
resistance per 1 m
|
24 mΩ
|
