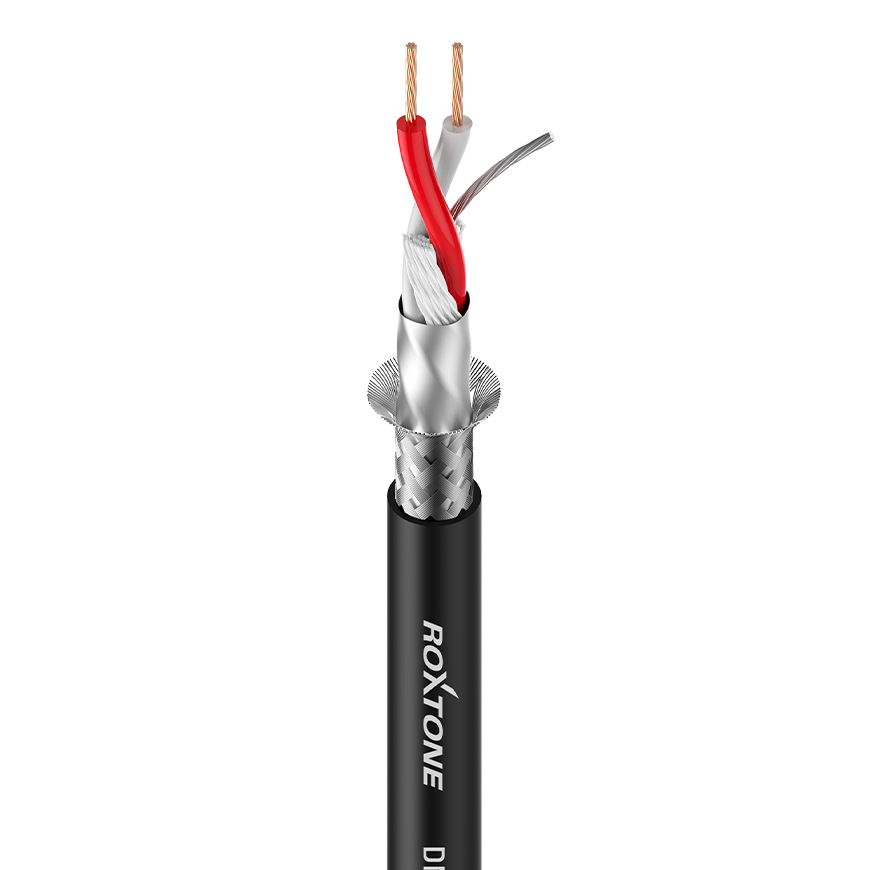

Features
• AES/EBU and DMX-conformant, highly flexible
• Double shielding with copper braided and 100% AL fleece shielding
Applications
• Networking of scanners, lighting units, digital mixing boards, etc.
• For indoor and outdoor installation
• Connection of digital audio amplifiers, DAT-recorders, etc.
Cable Colour
• Black
• Blue
Technical Data
|
|
Jacket, diameter
|
PVC 5.8 mm
|
AWG
|
24
|
No. of inner conductors
|
2 x 0.22 mm²
|
Copper strand per conductor
|
28 x 0.10 mm
|
Conductor insulation
|
PE 1.70 mm
|
Shielding
|
Tin copper braided shielding
with 64 x 0.10 mm + AL/PT-foil
+ drain wire 7 x 0.20 mm Tin copper
|
Shielding factor
|
100 %
|
Temperature range
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
|
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
50 pF
|
Capac. cond./shield. per 1 m
|
108 pF
|
Cond. resistance per 1 km
|
76.26 mΩ
|
Shield. resistance per 1 m
|
29.62 mΩ
|
