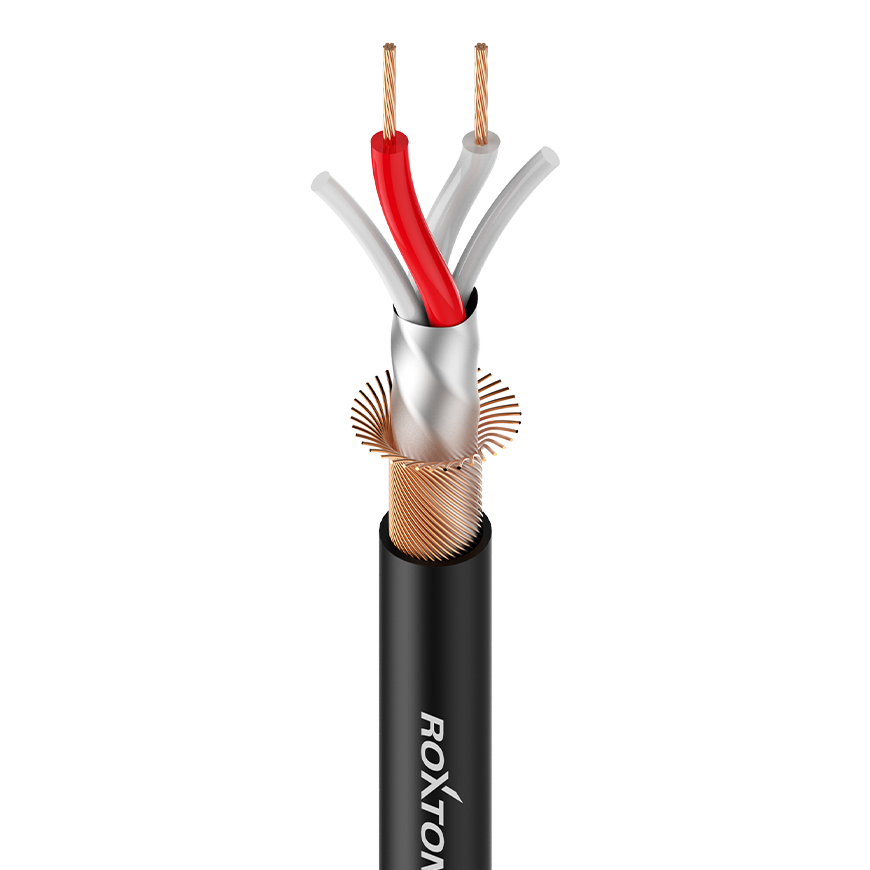

DMX002
AES/EBU & DMX cable - 22AWG - 2 x 0.34mm²

Features

• AES/EBU- and DMX-conformant, highly flexible

• Very good shielding through the use of copper spiral shielding + AL/PT-foil

• The use of OFC strands and a large conductor cross-section 2 of 2 x 0.34 mm ensure high-quality signal


Applications

• Networking of scanners, lighting units, digital mixing boards, etc.

• For indoor and outdoor installation

• Connection of digital audio amplifiers, DAT-recorders, etc.


Cable Colour

• Black

• Blue


Technical Data

Jacket, diameter
PVC 6.5 mm
AWG
22
No. of inner conductors
2 x 0.34 mm²
Copper strand per conductor
7 x 0.25 mm
Conductor insulation
PE 1.70 mm
Shielding

copper spiral shielding

with 80 x 0.10 mm

+ AL/PT-foil+PE filler

Shielding factor
100 %
Temperature range
min. -20 °C
Temperature range
max. 70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
< 65 pF
Capac. cond./shield. per 1 m
115 pF
Cond. resistance per 1 km
53 Ω
Shield. resistance per 1 km
17 Ω
Insulation resist. per 1 km
> 10 GΩ
Surge impedance
120 Ω



Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
