Features
• Lockable 4 pin speaker connector, dust and water resistant according to IP66 in mated condition
• Brass contacts supply excellent contact and ensure the conductivity
• Replaceable color ring on connector indicates cable of different equipment or length, easy for cooperation
• Patent protected
Available Color Rings
Technical Data
|
|
Housing
|
PA6 30% GF
|
Insert
|
PA6 30% GF
|
Latch
|
Zinc Alloy diecast
|
Contacts
|
Brass
|
Contacts plating
|
Nickel
|
|
Strain relief
|
PA6
|
Termination
|
Screw type terminals
|
Rated current per contact
|
30 A rms
|
Cable O.D. range
|
8-10 mm
|
|
|
Order Code
|
Description
|
RS4FP-WP
|

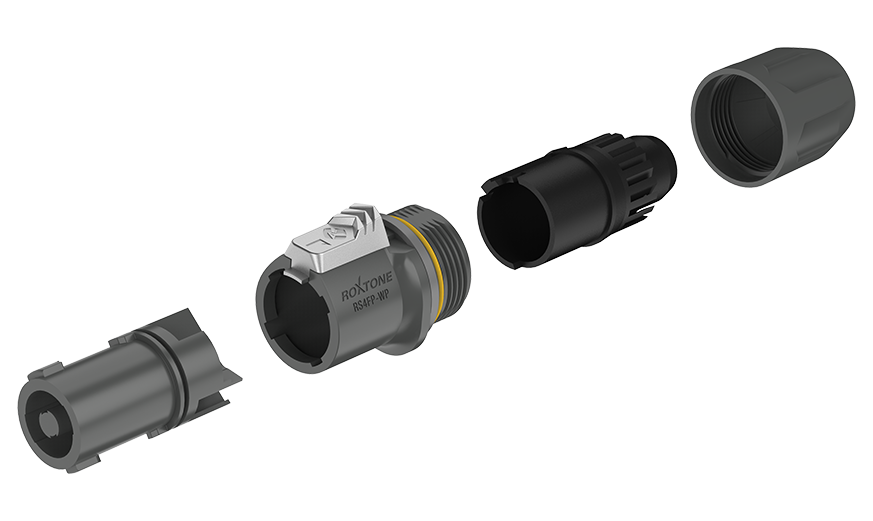

4 pole Speaker female connector
|
Engineering Drawing
