Features
• Lockable 4 pin speaker connector
• Brass contacts supply excellent contact and ensure the conductivity
• Heavy duty zinc alloy insert for longlife use(RS4FP-HD)
• Replaceable color ring on connector indicates cable of different equipment or length, easy for operation

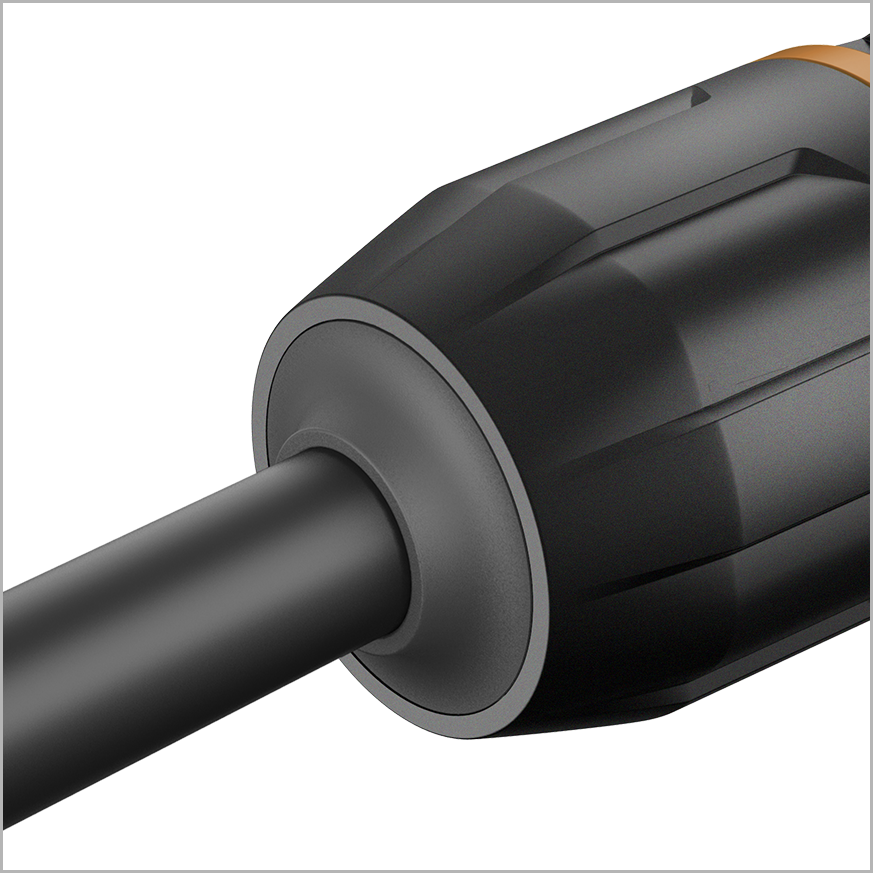

• Dust-proof design of the bushing makes the additional protection
• Patent protected
Available Color Rings
Technical Data
|
|
Housing
|
PA6 30% GF
|
Insert
|
PA66 20% GF
|
Latch
|
Zinc Alloy diecast
|
Contacts
|
Brass
|
Contacts plating
|
Nickel
|
Strain relief
|
POM
|
|
Color ring
|
PA6 30% GF
|
|
Number of contacts
|
4
|
Termination
|
Screw type terminals
|
Rated current per contact
|
30 A rms
|
Cable O.D. range
|
6-12 mm
|
|
|
Order Code
|
Description
|
RS4FP-HD
|
4 p ole Speaker female connector, heavy duty version
|
Engineering Drawing
