RS4FP
Speaker female connector

FEATURES

• Lockable 4 pin speaker connector
• Brass contacts supply excellent contact and ensure the conductivity
• Heavy duty zinc alloy insert for longlife use(RS4FP-HD)
• Replaceable color ring on connector indicates cable of different equipment or length, easy for operation

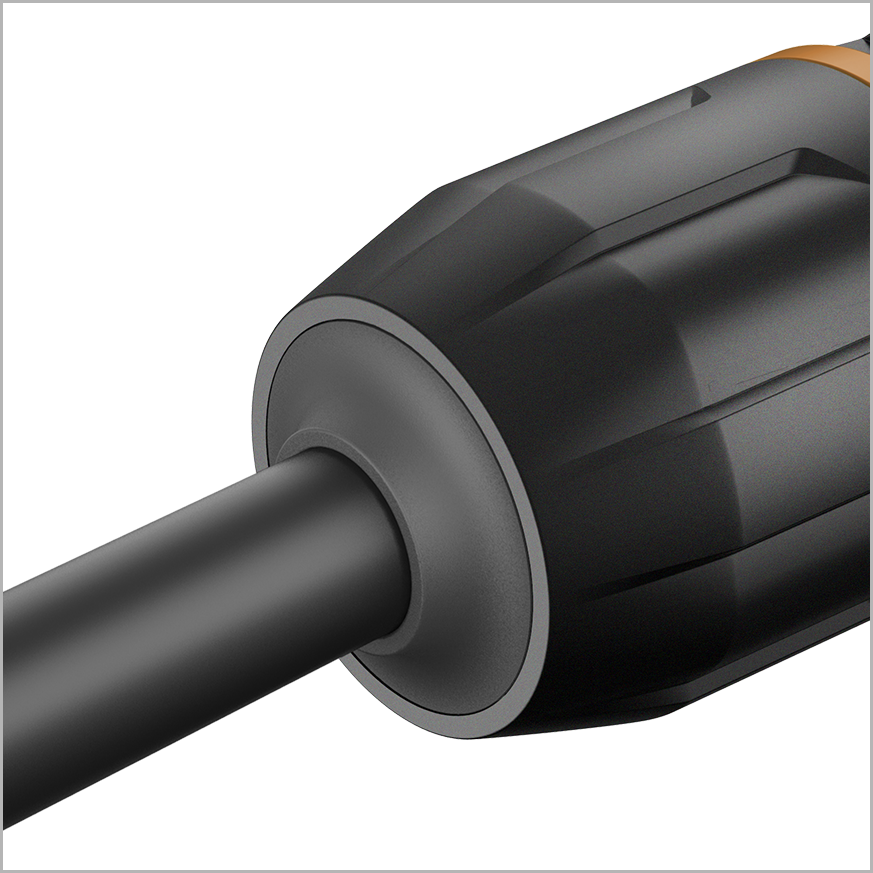

• Dust-proof design of the bushing makes the additional protection
• Patent protected






AVAILABLE COLOR RINGS



TECHNICAL DATA

Housing
PA6 30% GR
Insert
PA66 20% GR
Latch
Zinc Alloy diecast
Contacts
Brass
Contacts plating
Nickel
Strain relief
POM
Color ring PA6 30% GR
Number of contacts 4
Rated current per contact
30 A rms
Cable O.D. range
6-12 mm


ENGINEERING DRAWING
