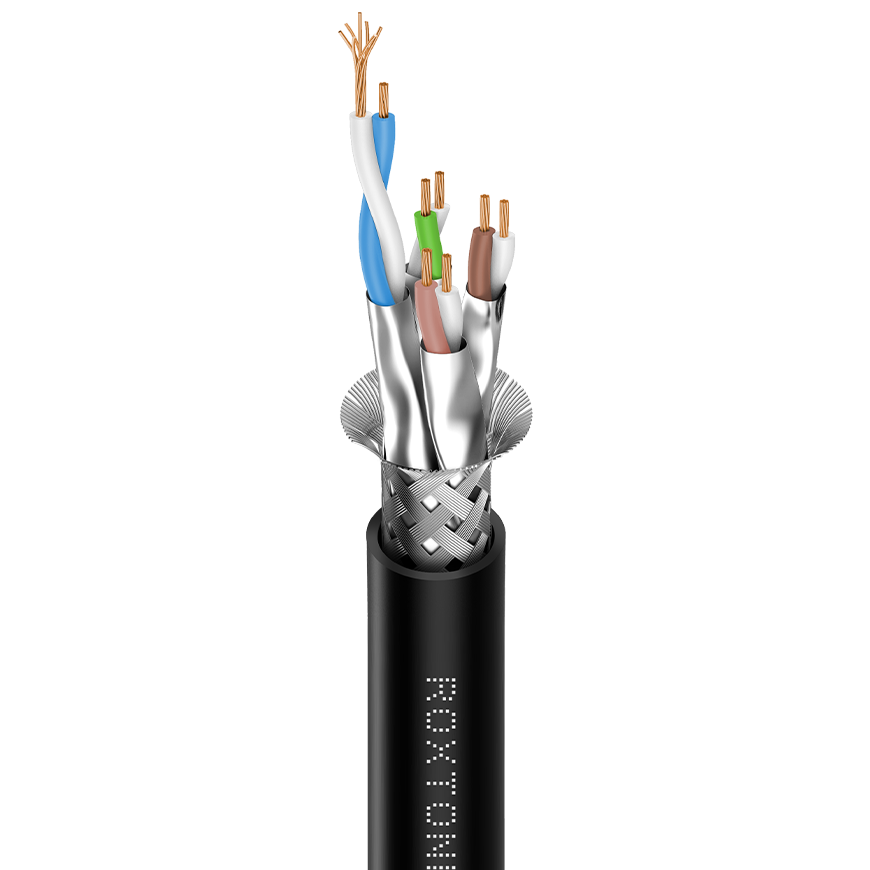

HFC6AP/HFC6AP75
Flexible CAT6a data cable S/FTP
Qtys:
32
Unit: metre(s)
INQUIRY LIST

Features

• Robust cable with thicker PVC jacket, makes it to be more flexible
• Super flexible due to a special cable design, excellent for mobile use
• Foamed-skin PE insulation and shielded in pairs with AL foil


Applications

• Excellent for mobile use and cable drum storage
• Use for digital audio and video signals up to 60m


Cable Colour

• Black



Technical Data


Order Code HFC6AP
HFC6AP75
Jacket, diameter
PVC 6.5 mm
PVC 7.5 mm
AWG
26
26
No. of inner conductors
4 x 2 x 0.14 mm²
4 x 2 x 0.14 mm²
Copper strand per conductor
7 x 0.16 mm
7 x 0.16 mm
Conductor insulation
Foamed-skin PE 1.04 mm Foamed-skin PE 1.04 mm
Shielding

Braided shielding

Braided shielding
Shielding factor
100%
100%
Temperature range
min. -20 °C
min. -20 °C
Temperature range
max. +75 °C
max. +75 °C
Packaging
100/300 m roll
100/300 m roll



Electrical Data


Cond. resistance 20°C
≤145 Ω/ km
≤145 Ω/ km
Pairs/shielding cond.(Unbalance) 1kHz
≤160 pF/100m
≤160 pF/100m
Insulation resist.per 1Km 20°C
≥5000 MΩ.km
≥5000 MΩ.km
Surge impedance
1~100 MHz: 100±15 Ohm
1~100 MHz: 100±15 Ohm
Delay skew
≤45 ns/100 m
≤45 ns/100 m


Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
