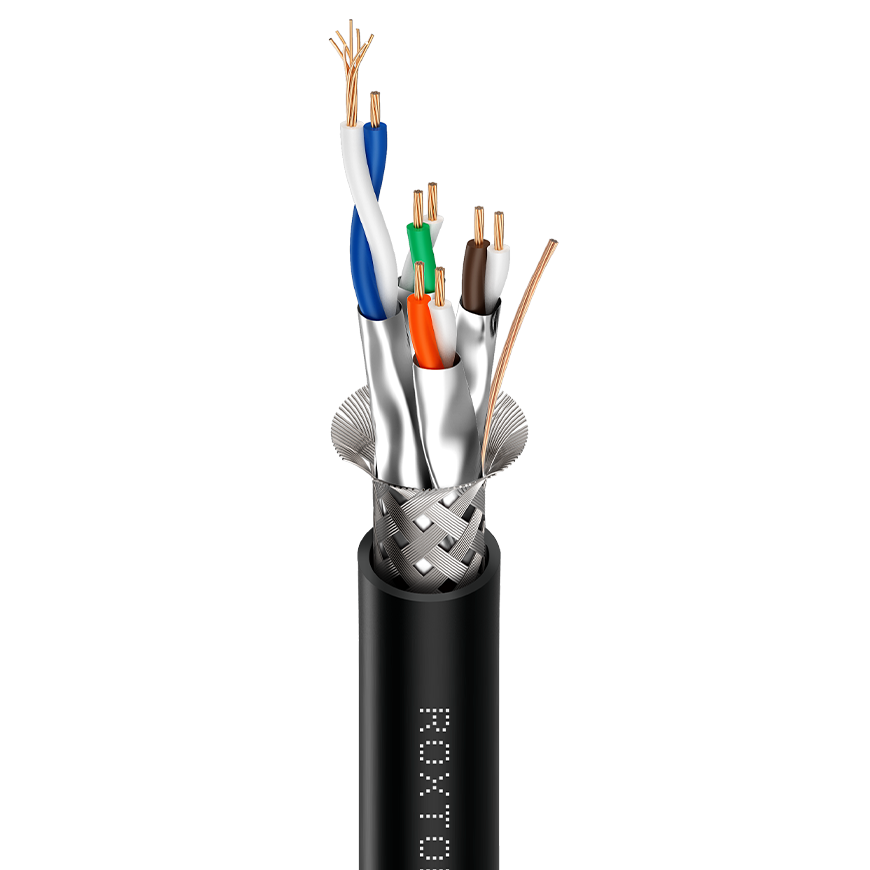

C6AP/C6AE
Flexible CAT6a data cable S/FTP
Qtys:
30
Unit: metre(s)
INQUIRY LIST

Features

• Highly Flexible due to special wire stranded technology and PVC jacket
• Great durability, outdoor temperature resistant, easy to reel
• Large wire cross-section AWG24 for long distance use up to 70m
• Foam-skin PE insulation and shielded in pairs with an AL foil


Applications

• It's excellent data cable for mobile outdoor transmissions of digital audio or network signals

• Use for all CAT5e, CAT6, CAT6a transmissions


Cable Colour

• Black



Technical Data


Order Code C6AP
C6AE
Jacket, diameter
PVC 8.0 mm
TPE 8.0 mm
AWG
24
24
No. of inner conductors
4 x 2 x 0.22 mm²
4 x 2 x 0.22 mm²
Copper strand per conductor
7 x 0.20 mm
7 x 0.20 mm
Conductor insulation
Foam-skin PE Foam-skin PE
Shielding

Braided shielding with

128 x 0.12 mm

+ AL/PT-foil

+ drain wire 7 x 0.2 mm

Braided shielding with

128 x 0.12 mm

+ AL/PT-foil

+ drain wire 7 x 0.2 mm


Shielding factor
100%
100%
Temperature range
min. -20 °C
min. -20 °C
Temperature range
max. +60 °C
max. +60 °C
Packaging
100/300 m roll
100/300 m roll



Electrical Data


Capac. cond./cond. per 1 m
38.3 pF
38.3 pF
Capac. cond./shield. per 1 m
82 pF
82 pF
Cond. resistance per 1 m
85 mΩ
85 mΩ
Shield. resistance per 1 m
7.5 mΩ
7.5 mΩ


Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
