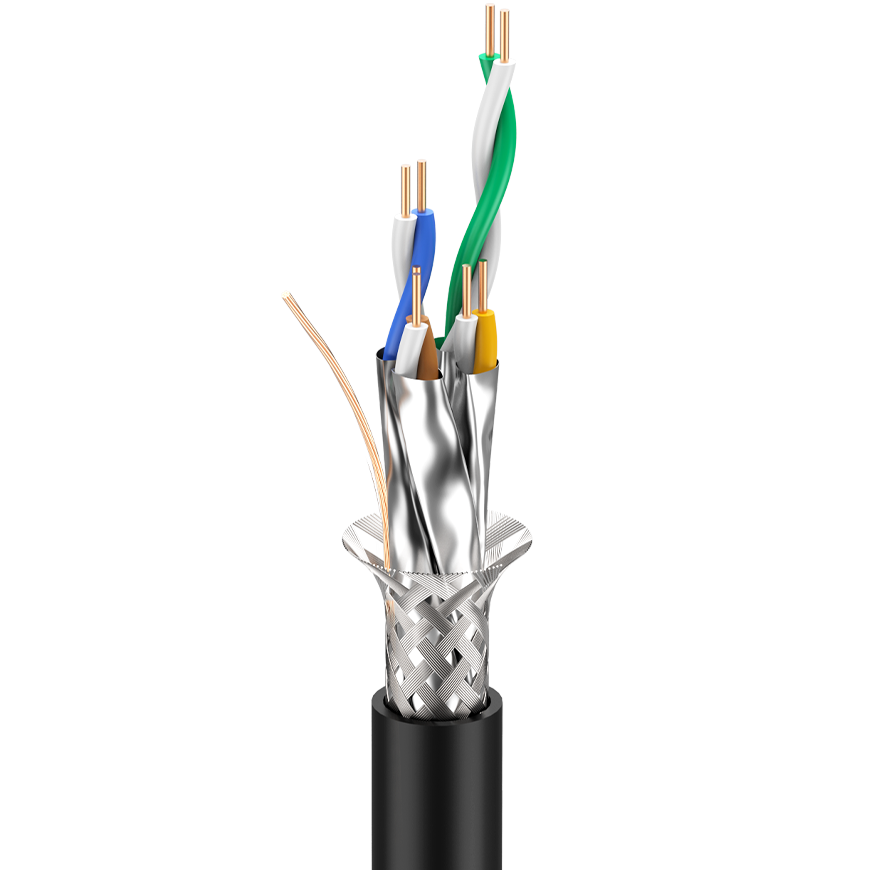

C6APX/C6AEX
Low delay skew CAT6a data cable, S/FTP
Qtys:
30
Unit: metre(s)
INQUIRY LIST

Features

• Low delay skew due to the special structure
• Highly flexible due to special wire stranded technology and PVC jacket
• Great durability, outdoor temperature resistant, easy to reel
• Large wire cross-section AWG23 for long distance use up to 100m
• Foam-skin PE insulation and shielded in pairs with AL-foil


Applications

• Designed for digital mixer and compatible with DMX lighting applications

• Used for all CAT5e,CAT6,CAT6a transmissions


Cable Colour

• Black



Technical Data
C6APX
C6AEX
Jacket, diameter
PVC 8.0 mm
TPE 8.0 mm
AWG
23
23
No. of inner conductors
4 x 2 x 0.26 mm²
4 x 2 x 0.26 mm²
Copper strand per conductor
1 x 0.58 mm
1 x 0.58 mm
Conductor insulation
Foam-skin PE Foam-skin PE
Shielding

Braided shielding with

128 x 0.12mm

+ AL/PT-foil

+ drain wire 7 x 0.16mm

Braided shielding with

128 x 0.12mm

+ AL/PT-foil

+ drain wire 7 x 0.16mm

Shielding factor
100%
100%
Temperature range
min. -20 °C
min. -20 °C
Temperature range
max. +60 °C
max. +60 °C
Packaging
100/300 m roll
100/300 m roll



Electrical Data

Capac. cond./cond. per 1 m
36.5 pF
36.5 pF
Capac. cond./shield. per 1 m
79 pF
79 pF
Cond. resistance per 1 m
68.8 mΩ
68.8 mΩ
Shield. resistance per 1 m
12 mΩ
12 mΩ



Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
