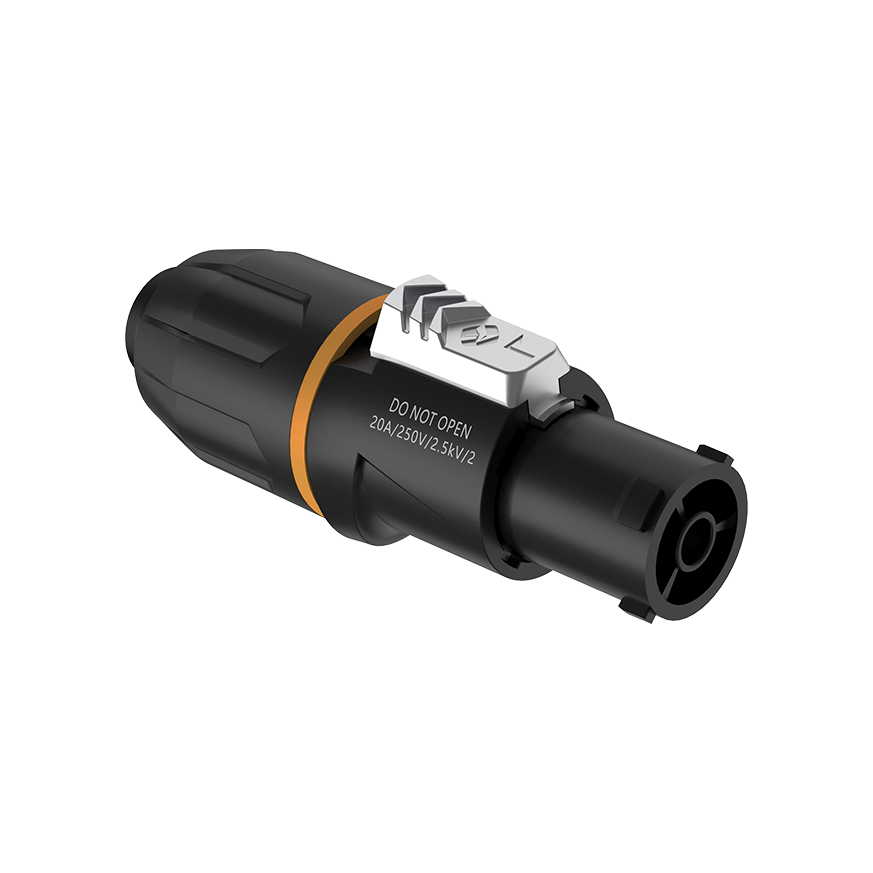

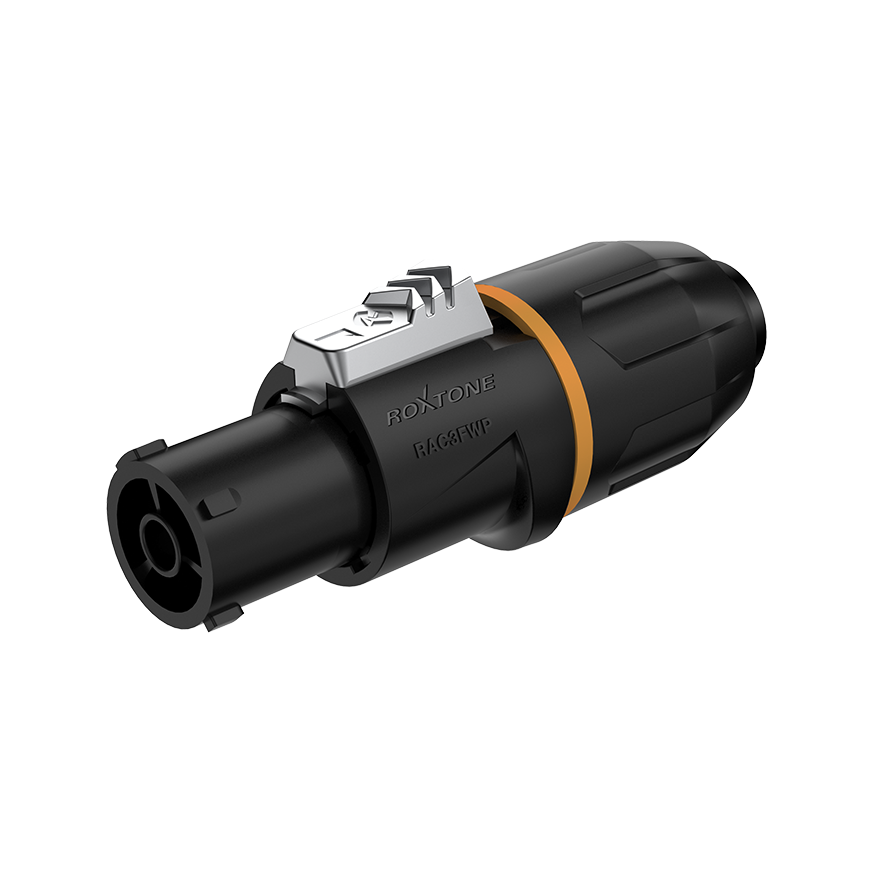

RAC3FWP
XROSSLINK series power connector - Waterproof IP65

FEATURES

• Unique design lockable 3 pin equipment(AC)connector, ideal for LED screen, lighting and other equipments
• Dust and water resistant according to IP65 in mated condition

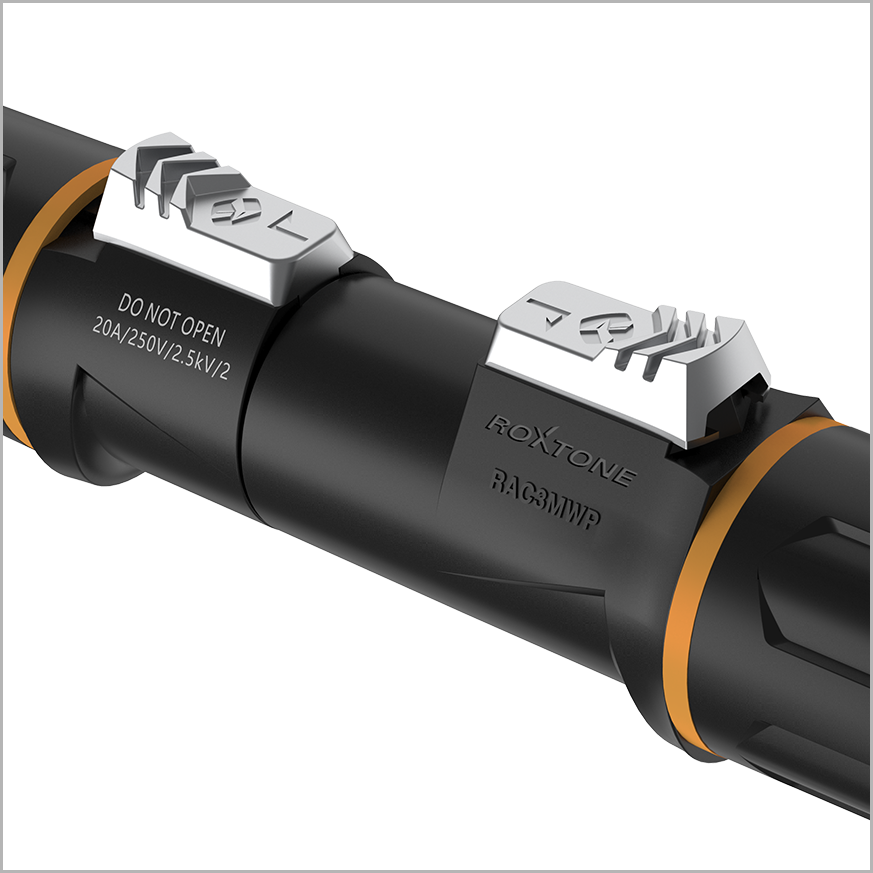

• Fast and easy twist lock system
• Flame retardant materials create safer use
• Glass fiber composite material, extremely robust and reliable
• ROXTONE brand engraved ont the shell
• Patent protected

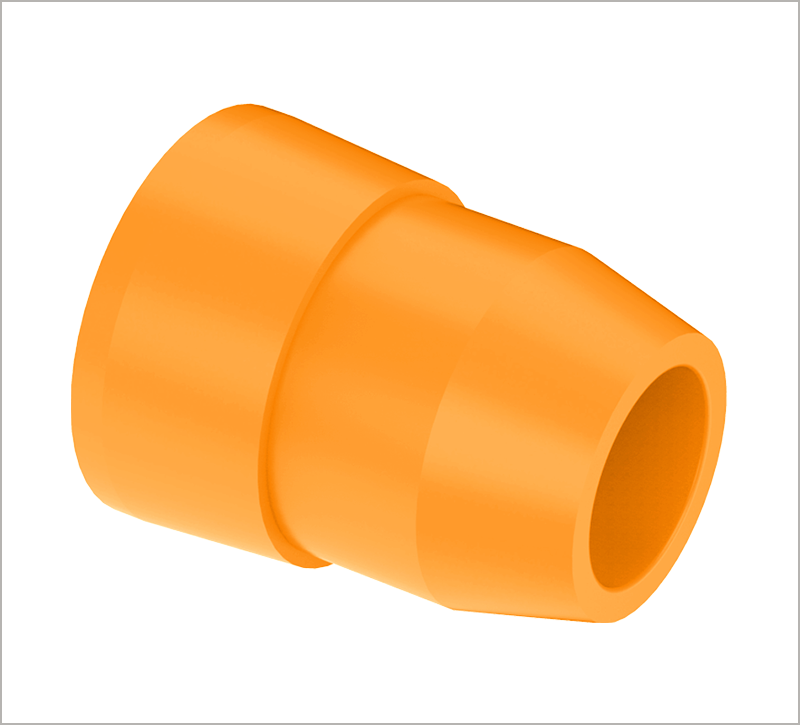

AVAILABLE COLOR RINGS




TECHNICAL DATA

Housing
PA6 30% GR
Insert
PA66 20% GR
Latch
Zinc Alloy diecast
Unitary contacts
Bronze
Contacts plating
Silver

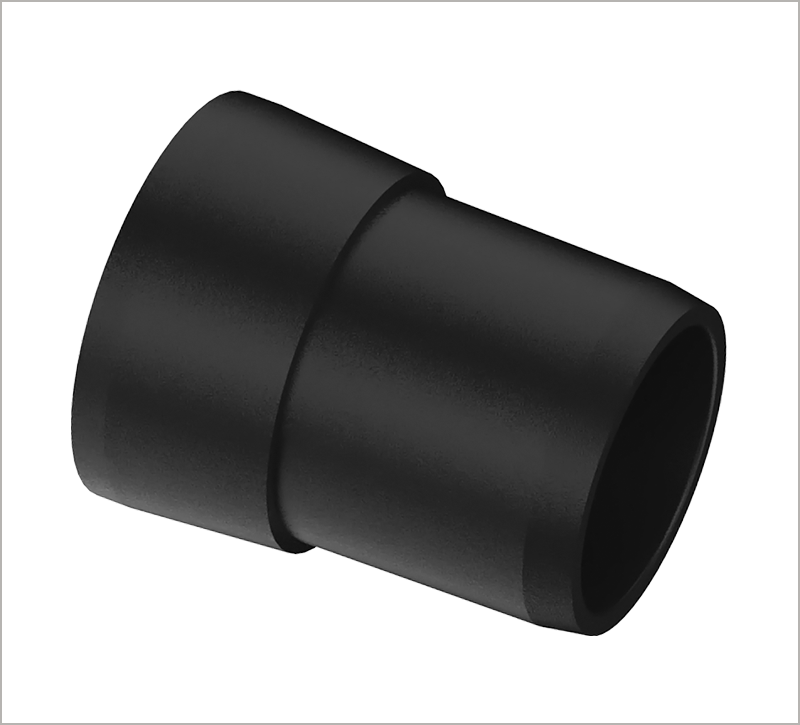

Strain relief POM
Sealing bushing
Silicone
Color ring PA6 20% GR
Number of contacts
3
Rated current per contact
20 A rms
Rate voltage
250 V ac
Cable O.D. range
6-12 mm
Protection class(mated)
IP65
Fammability
UL V-0



ENGINEERING DRAWING

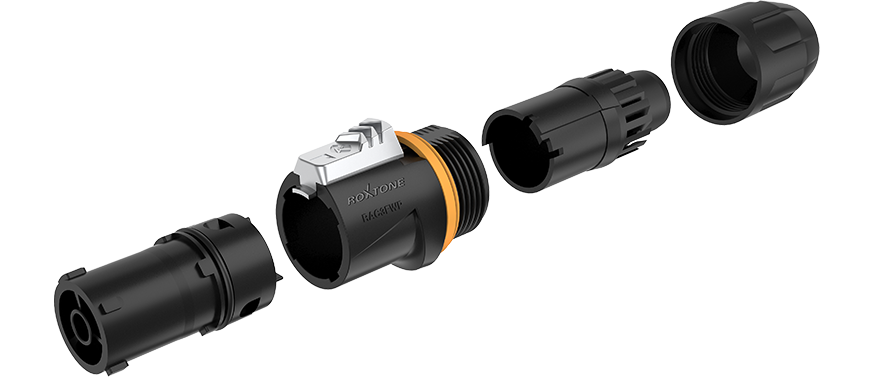

APPLICATION & ASSEMBLY INSTRUCTION
                             DOWNLOAD
