RAC3MPO

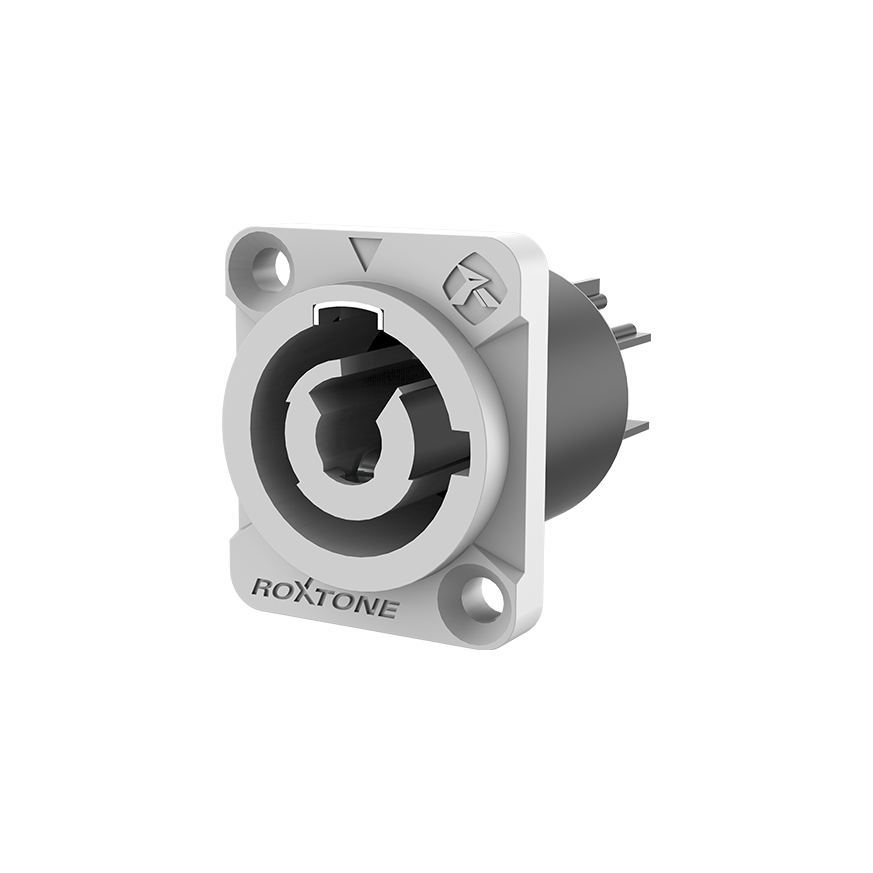

Power Link series power out socket
Qtys:
400
Unit: piece(s)
INQUIRY LIST

Features

• Lockable 3 pole equipment(AC) connectors
• Silver plated brass and brzone contacts supply excellent contact and conduction properties
• Replaceable color ring on connector indicates cable of different equipment or length easy for works

• Dust resistant bushing for longlife use
• Raw material according with UL-V0 for safe use
• 2 pieces strain-relief be provided for different cable diameter
• Patent protected


Technical Data

Housing
PA6 30% GR
Contacts Bronze
Contacts plating
Silver
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Fammability UL V-0


Engineering Drawing



Application & Assembly Instruction
                             DOWNLOAD
