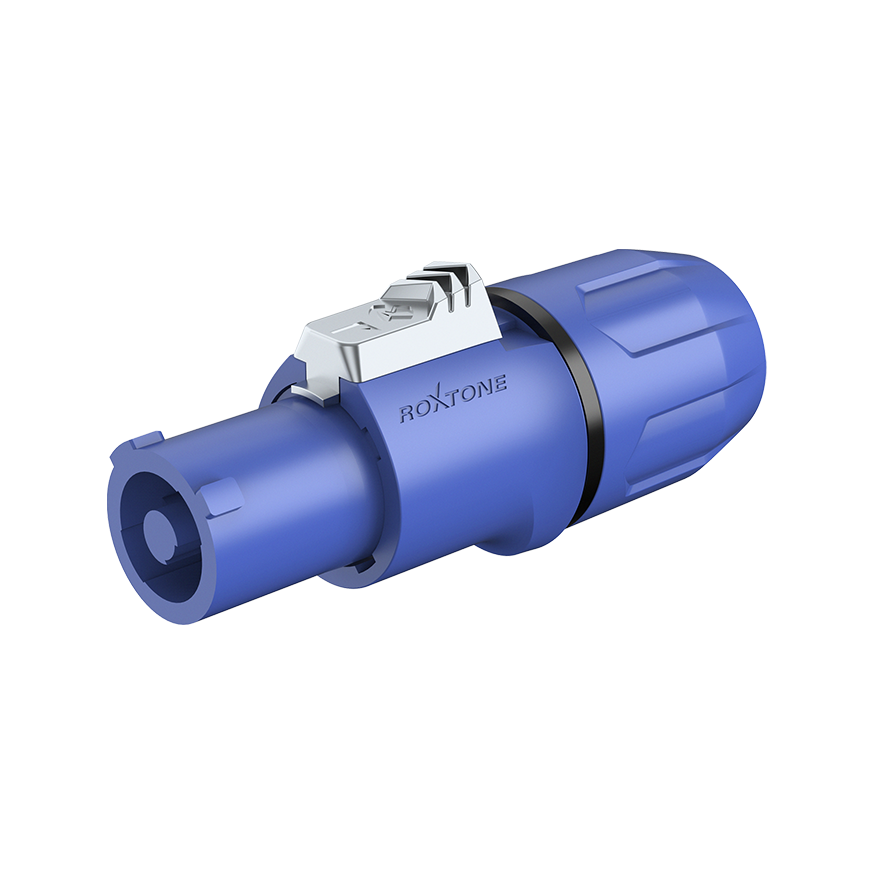

RAC3FCI
Power Link series power in connector

FEATURES

• Lockable 3 pole equipment(AC) connectors
• Silver plated brass and brzone contacts supply excellent contact and conduction properties
• Replaceable color ring on connector indicates cable of different equipment or length easy for works

• Dust resistant bushing for longlife use
• Raw material according with UL-V0 for safe use

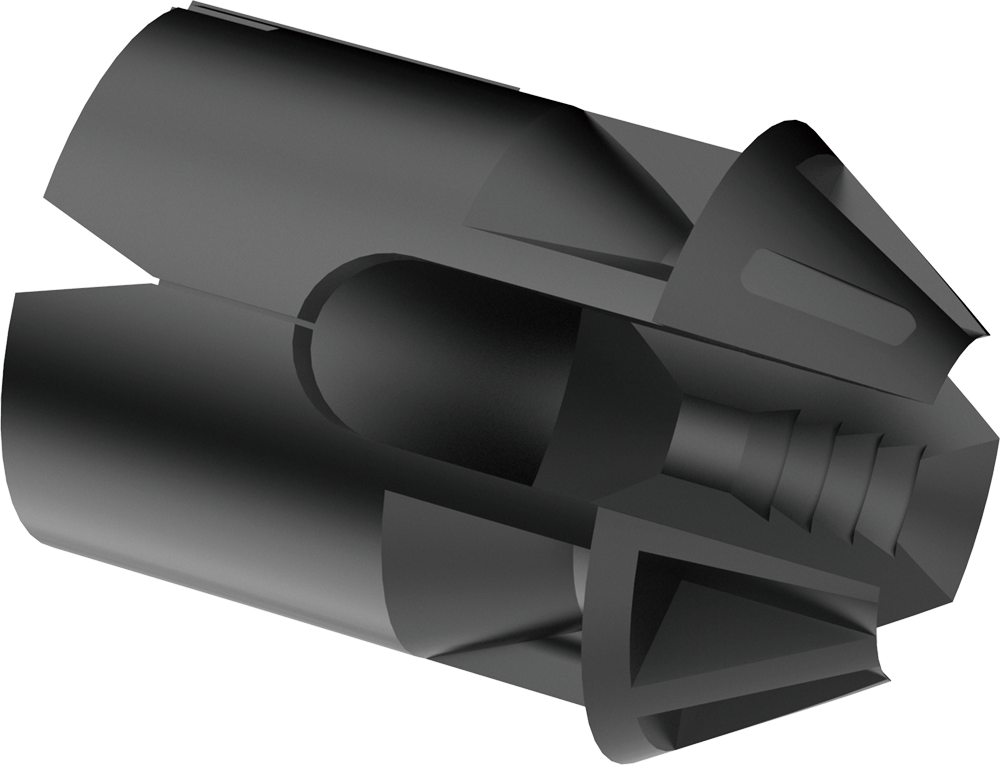

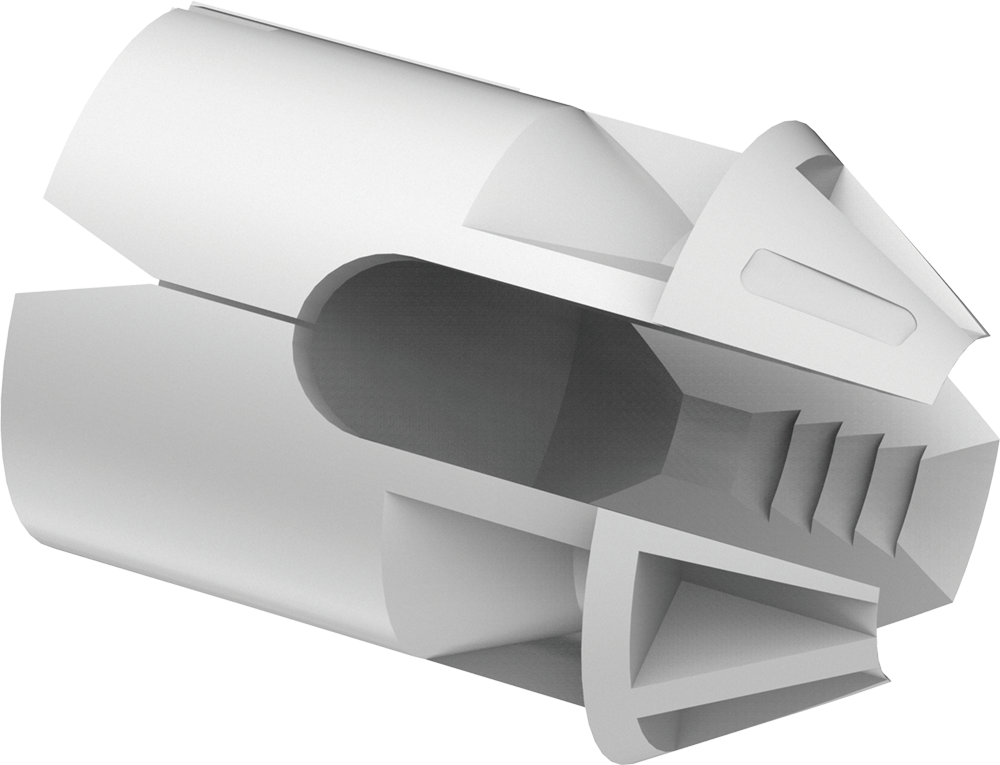

• 2 pieces strain-relief be provided for different cable diameter
• Patent protected

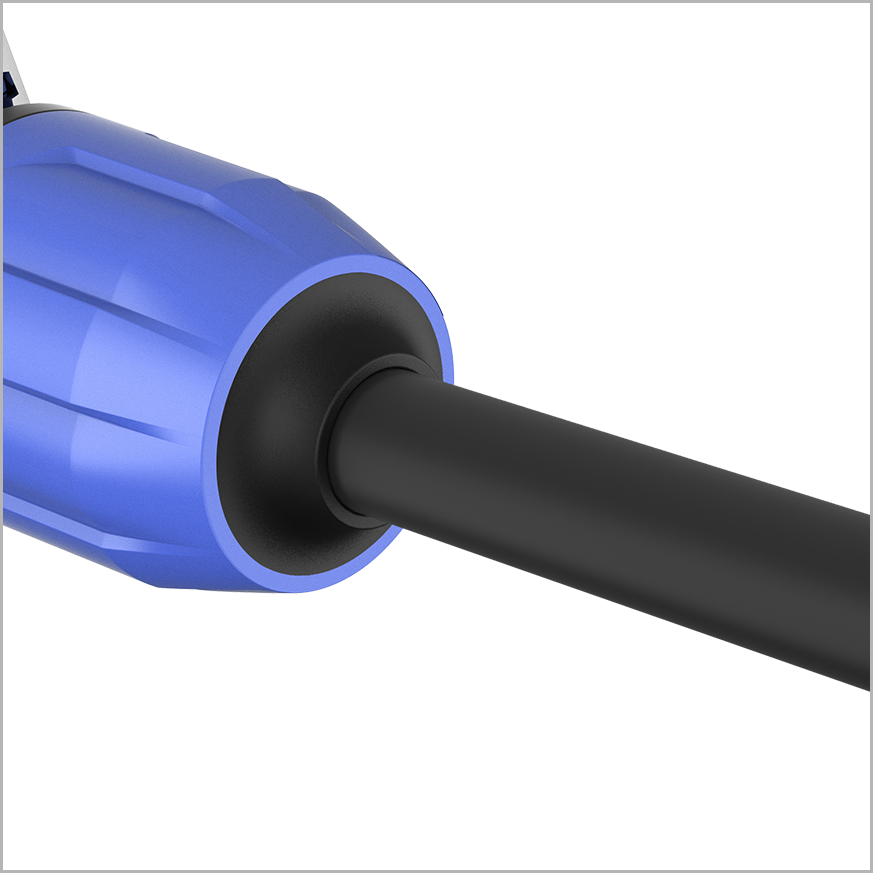

TPE Dust-proof structure



AVAILABLE COLOR RINGS


TECHNICAL DATA

Housing
PA6 30% GR
Insert
PA66 20% GR
Latch
Zinc Alloy diecast
Unitary contacts
Brass
Contacts plating
Nickel or Silver
Strain relief POM
Color ring PA6 20% GR
Number of contacts
3
Rated current per contact
20 A rms
Rate voltage
250 V ac
Cable O.D. range
6-12 mm
Fammability
UL V-0



ENGINEERING DRAWING




APPLICATION & ASSEMBLY INSTRUCTION
                             DOWNLOAD
