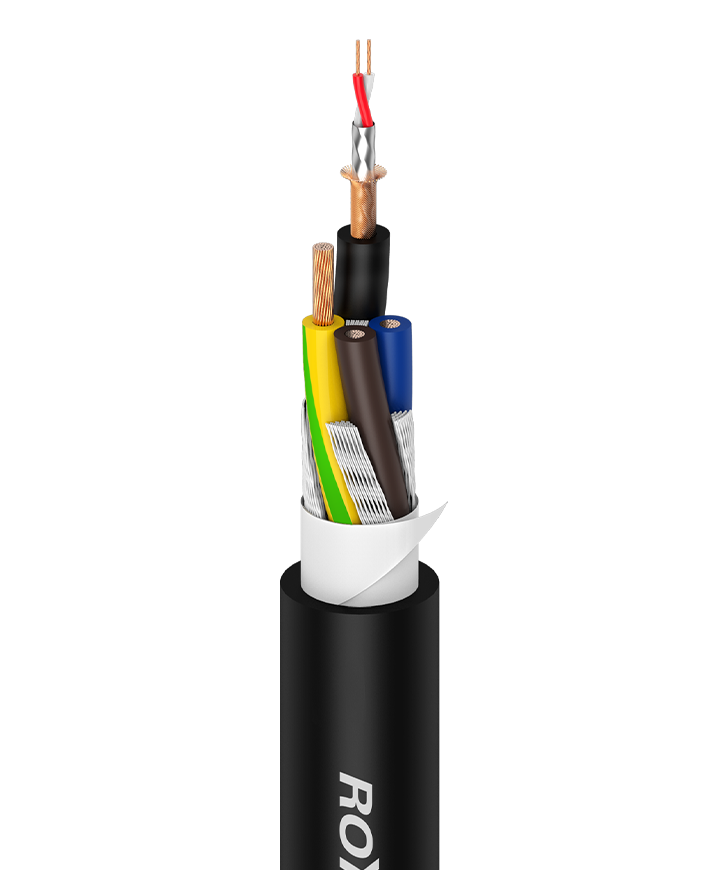

Features
• Parallel controls for active speakers via power line and Analog-signal via audio cable
• Very good paired shielding of the audio cable due to dense spiral copper shielding and additional AL/PT-foil
Applications
• Controls for active speakers
• Analog audio multipair with power supply
Cable Colour
• Black
Technical Data
|
|
|
|
Order Code
|
PSC015
|
PSC025
|
Total jacket, diameter
|
PVC 15.0 mm
|
PVC 17.0 mm
|
No. of power conductors
|
3 x 1.5 mm²
|
3 x 2.5 mm²
|
Diameter of power cable
|
8.0 mm
|
10.0 mm
|
No. of inner conductors
|
2 x 0.22 mm²
|
2 x 0.22 mm²
|
AWG
|
24
|
24
|
Copper strand per conductor
|
28 x 0.10 mm
|
28 x 0.10 mm
|
Conductor insulation
|
PE 1.40 mm
|
PE 1.40 mm
|
Shielding
|
Copper spiral shielding
48 x 0.10 mm+ AL/PT-foil
|
Copper spiral shielding
48 x 0.10 mm+ AL/PT-foil
|
Shielding factor
|
100 %
|
100 %
|
Diameter of signal cable
|
4.0 mm
|
4.0 mm
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
|
|
|
Electrical Data
|
|
|
Capac. cond./cond. per 1 m
|
60 pF(Signal)
|
60 pF(Signal)
|
Capac. cond./shield. per 1 m
|
120 pF(Signal)
|
120 pF(Signal)
|
Cond. resistance per 1 m
|
77 mΩ(Signal)
|
77 mΩ(Signal)
|
Shield. resistance per 1 m
|
48 mΩ(Signal)
|
48 mΩ(Signal)
|
