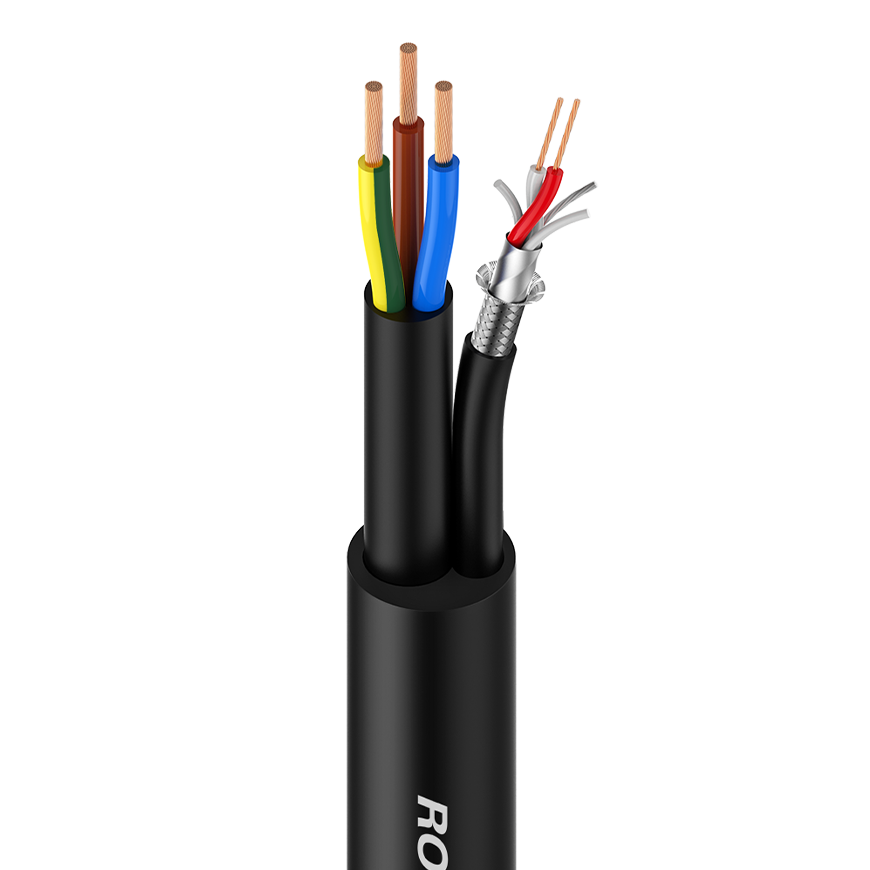

Features
• Parallel controls for light mixing boards via power line and DMX-signal via cable
• Very good paired shielding of the DMX-cables due to tin plated copper braided shielding
Applications
• Controls for DMX-light mixing board (surge impedance of 110 Ohm)
• Analog + digital audio multipair with power supply
Cable Colour
• Black
Technical Data
|
|
|
|
Order Code
|
PDC015
|
PDC025
|
Total jacket, diameter
|
PVC 15.0 mm
|
PVC 17.0 mm
|
No. of power conductors
|
3 x 1.5 mm²
|
3 x 2.5 mm²
|
Diameter of power cable
|
8.0 mm
|
10.0 mm
|
No. of inner conductors
|
2 x 0.22 mm²
|
2 x 0.22 mm²
|
AWG
|
24
|
24
|
Copper strand per conductor
|
7 x 0.20 mm
|
7 x 0.20 mm
|
Conductor insulation
|
PE 1.70 mm
|
PE 1.70 mm
|
Shielding
|
PE filler, tin plated copper
braided shielding with
96 x 0.10 mm + AL
|
PE filler, tin plated copper
braided shielding with
96 x 0.10 mm + AL
|
Shielding factor
|
95 %
|
95 %
|
Diameter of DMX cable
|
5.0 mm
|
5.0 mm
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
|
|
|
Electrical Data
|
|
|
Capac. cond./cond. per 1 m
|
47 pF(Signal)
|
47 pF(Signal)
|
Capac. cond./shield. per 1 m
|
102 pF(Signal)
|
102 pF(Signal)
|
Cond. resistance per 1 m
|
80 mΩ(Signal)
|
80 mΩ(Signal)
|
Shield. resistance per 1 m
|
18.2 mΩ(Signal)
|
18.2 mΩ(Signal)
|
