Features

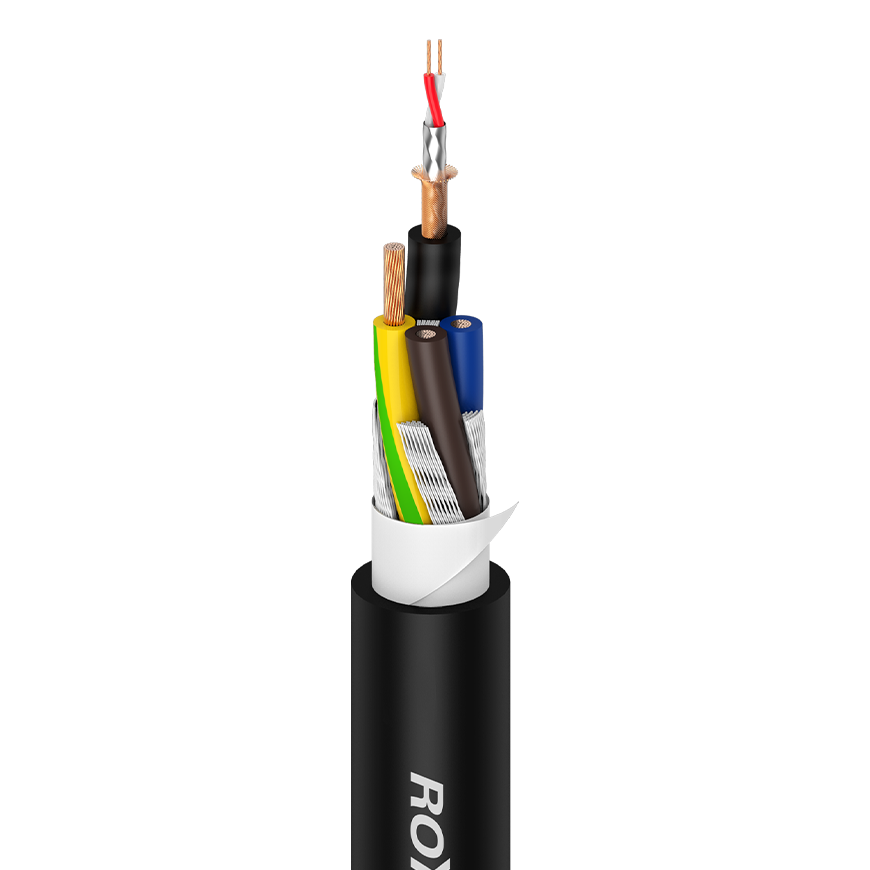

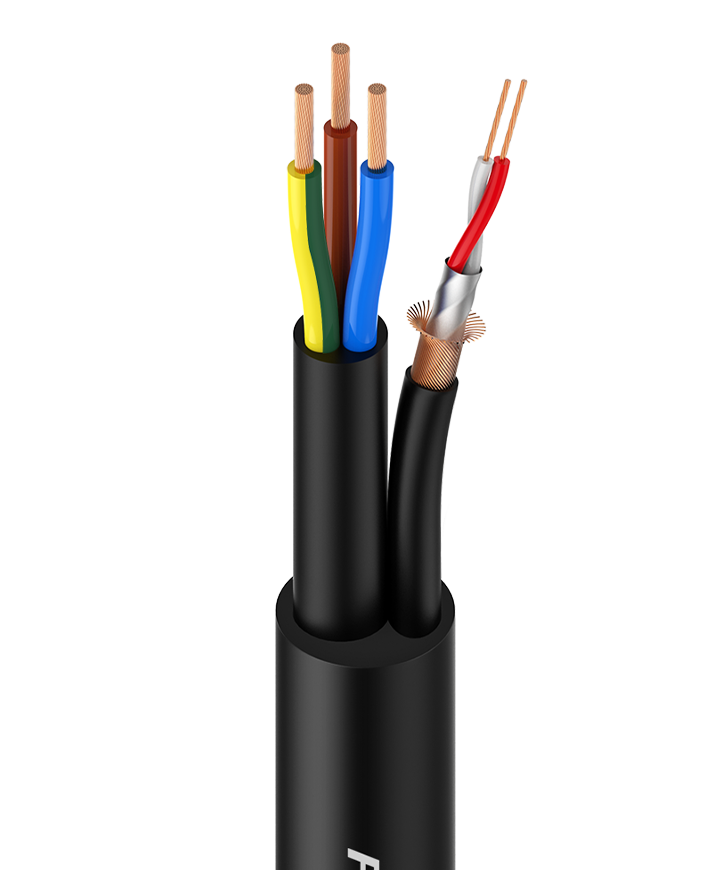

• Small diameter and flexible due to the special cable structure
• Parallel controls for active speakers via power line and Analog-signal via audio cable
• Very good paired shielding of the audio cable due to dense spiral copper shielding and additional AL/PT-foil
Applications
• Controls for active speakers
• Analog audio multipair with power supply
Cable Colour
• Black
Technical Data
|
|
|
Total jacket, diameter
|
PVC 12.0 mm
|
|
|
|
|
|
Power Cable
|
|
|
|
AWG
|
16
|
|
No. of power conductors
|
3 x 1.50 mm²
|
|
Copper strand per conductor
|
192 x 0.10 mm
|
|
Insulation material
|
PVC
|
|
|
|
|
|
Signal Cable
|
|
|
Jacket, diameter
|
PVC 4.0 mm
|
|
AWG
|
24
|
|
No. of inner conductors
|
2 x 0.22 mm²
|
|
Copper strand per conductor
|
28 x 0.10 mm
|
|
Insulation material
|
LDPE
|
|
Shielding
|
48 x 0.1mm+ Aluminum-plastics tape
|
|
|
|
|
Temperature range
|
min. -20 °C
|
|
Temperature range
|
max. +70 °C
|
|
Packaging
|
100m roll
|
|
|
|
|
Electrical Data
|
Power Cable
|
Signal Cable
|
Capac. Cond./cond.
|
123 pF/m
|
67 pF/m
|
Capac. Cond./shield.
|
n/a
|
138 pF/m
|
Cond. resistance
|
12 mΩ/m
|
82 mΩ/m
|
Shield resistance
|
n/a
|
48 mΩ/m
|
