Features

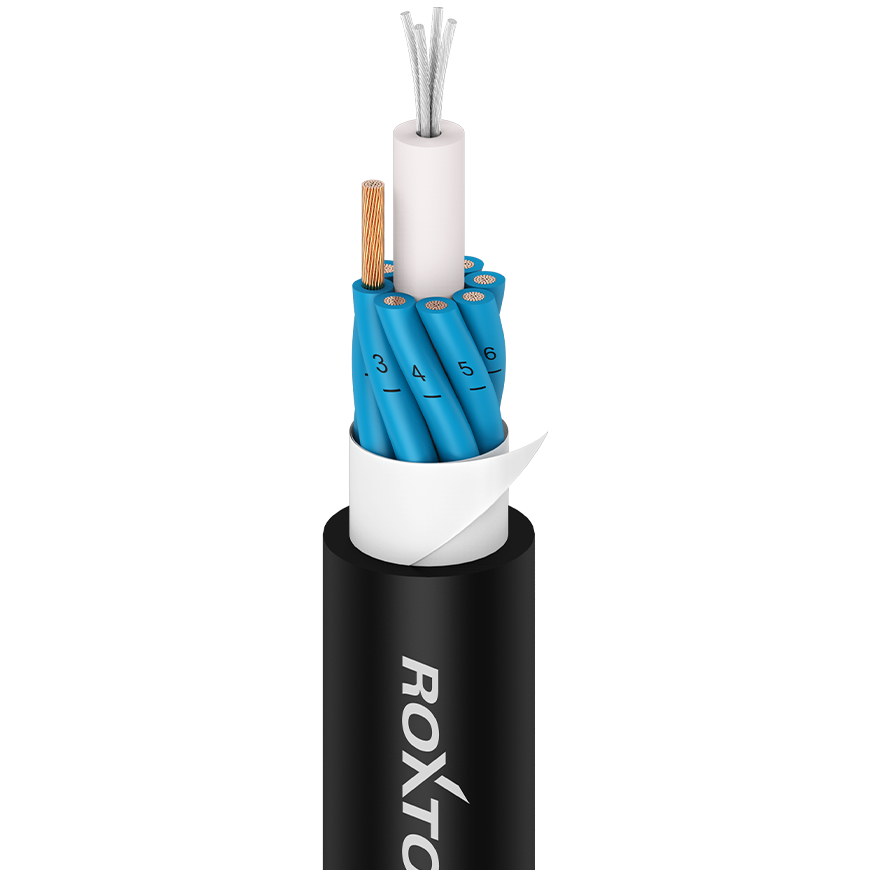

• Soft PVC jacket and cores twisted to a StarQuad grant a perfectwinding
• Loss-free transmission due to the special stranding
• Easy to work with due to good insulation and numbered wiring
Applications
• Professional PA/sound systems
• Surround and woofer systems
• For fixed installation in building technology
Cable Colour
• Black
• Blue
Technical Data
|
|
|
|
Order Code
|
SC080B
|
SC080C
|
Jacket, diameter
|
Flame retardant PVC
|
Flame retardant PVC
|
|
15.3 mm
|
18.5 mm
|
AWG
|
14
|
12
|
No. of inner conductors
|
8 x 2.5 mm²
|
8 x 4.0 mm²
|
Copper strand per conductor
|
80 x 0.20 mm
|
128 x 0.20 mm
|
Insulation material, diameter
|
Flame retardant PVC blue
|
Flame retardant PVC blue
|
|
3.25 mm
|
3.75 mm
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
|
|
|
|
Electrical Data
|
|
|
Capac. cond./cond. per 1 m
|
135.8 pF
|
111.5 pF
|
Cond. resistance per 1 m
|
6.58 mΩ
|
3.65 mΩ
|
