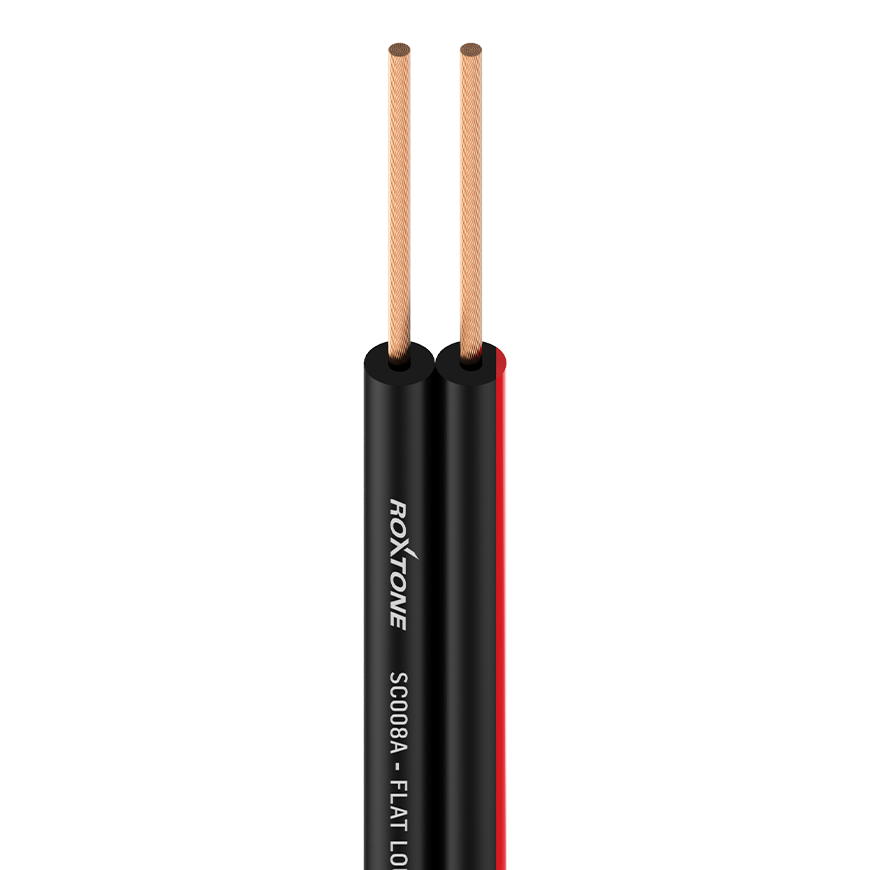

Features
• Inconspicuous in color
• Flat cable, easy to install
Applications
• Development and fast wiring of prototypes
• Fixed installation in dry and closed buildings
• Interior wiring for electrical units
Cable Colour
• Black
Technical Data
|
|
|
|
|
|
Order Code
|
SC008A
|
SC008B
|
SC008C
|
SC008D
|
Jacket, diameter
|
PVC 3 x 6 mm
|
PVC 3.4 x 7 mm
|
PVC 4 x 8 mm
|
PVC 5 x 10 mm
|
AWG
|
19
|
16
|
14
|
12
|
No. of inner conductors
|
2 x 0.75 mm²
|
2 x 1.5 mm²
|
2 x 2.5 mm²
|
2 x 4.0 mm²
|
Copper strand per conductor
|
24 x 0.20 mm
|
48 x 0.20 mm
|
80 x 0.20 mm
|
80 x 0.25 mm
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
max. +70 °C
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
|
|
|
|
|
|
Electrical Data
|
|
|
|
|
Capac. cond./cond. per 1 m
|
55 pF
|
56 pF
|
78 pF
|
66 pF
|
Cond. resistance per 1 m
|
24 mΩ
|
13.5 mΩ
|
4.1 mΩ
|
2.7 mΩ
|
