Features
• Soft PVC jacket and cores twisted to a StarQuad grant a perfectwinding
• Loss-free transmission due to the special stranding
• Easy to work with due to good insulation and numbered wiring
Applications
• Professional PA/sound systems
• Surround and woofer systems
• For fixed installation in building technology
Cable Colour
• Black
• Blue
Technical Data
|
|
PVC Jacket, diameter
|
13 mm
|
AWG
|
14
|

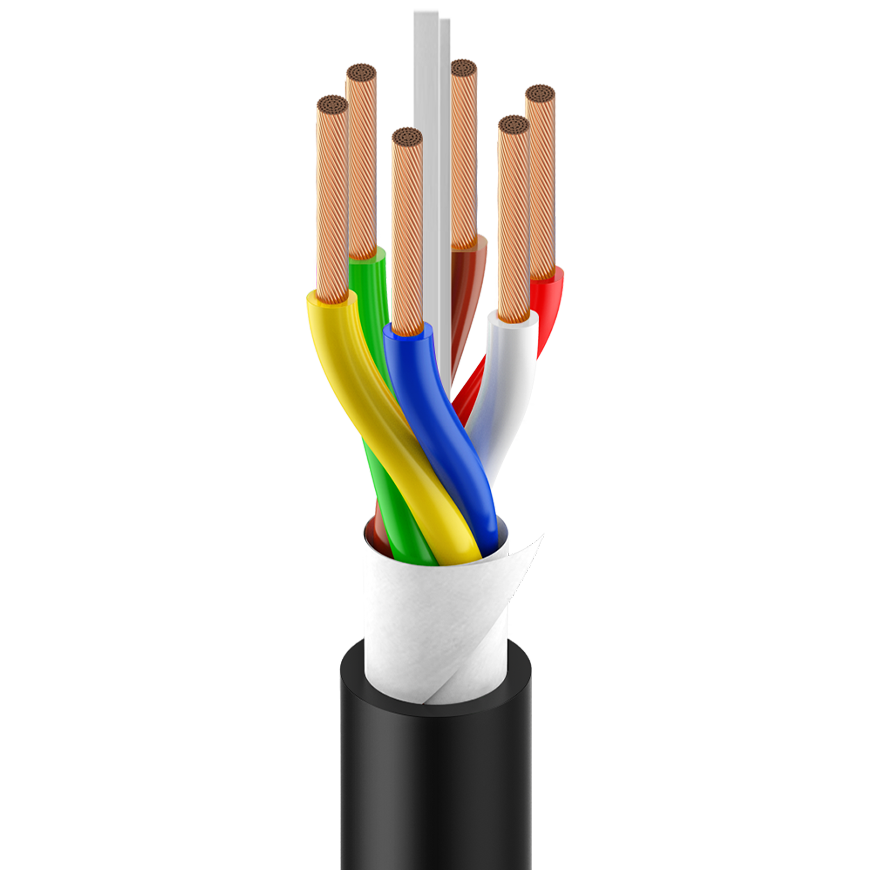

No. of inner conductors
|
6 x 2.5 mm²
|
Copper strand per conductor
|
80 x 0.20 mm
|
Cond. PVC insulation, diameter
|
3.1 mm
|
Temperature range
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
|
|
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
110 pF
|
Cond. resistance per 1 m
|
5.3 mΩ
|
