Features
• Only 3 parts, easy for assembly
• Improved design for latch lock
• Improved brass contacts ensure the conductivity, have higher current rating for the operation of high power speakers and amplifiers
• 1 piece strain-relief for easy tightening the cable diameter form 8 to 12mm, with an additional accessory RSA from 5-7mm
• Patent protected
Technical Data
|
|
Housing
|
PA6 30% GF
|
Insert
|
PA6 30% GF
|
Latch
|
Zinc Alloy diecast
|
Contacts
|
Brass
|
Contacts plating
|
Nickel
|
|
Strain relief
|
POM
|
|
Bushing
|
PA6 30% GF
|
Termination
|
Screw type terminals
|
|
|
Order Code
|
Description
|
RS4F-N-BU
|
4 pole Speaker female connector, Nickel plated contacts, Blue color ring
|
RS4F-N-GN
|

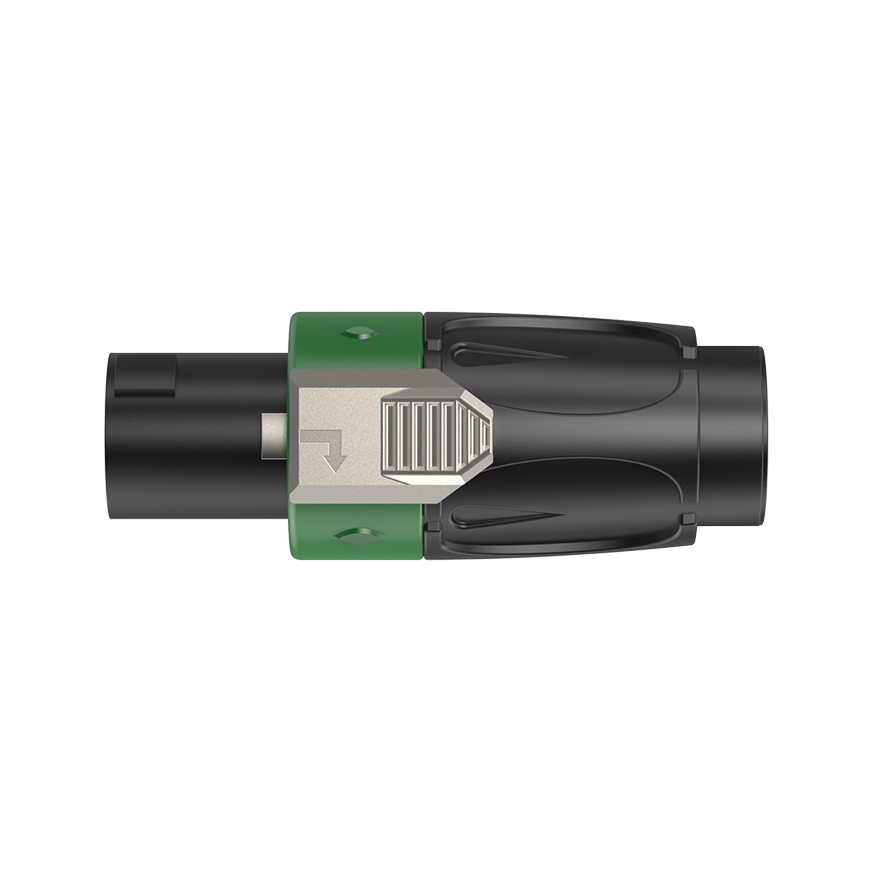

4 pole Speaker female connector, Nickel plated contacts, Green color ring
|
RS4F-N-RD
|
4 pole Speaker female connector, Nickel plated contacts, Red color ring
|
Engineering Drawing
