Features

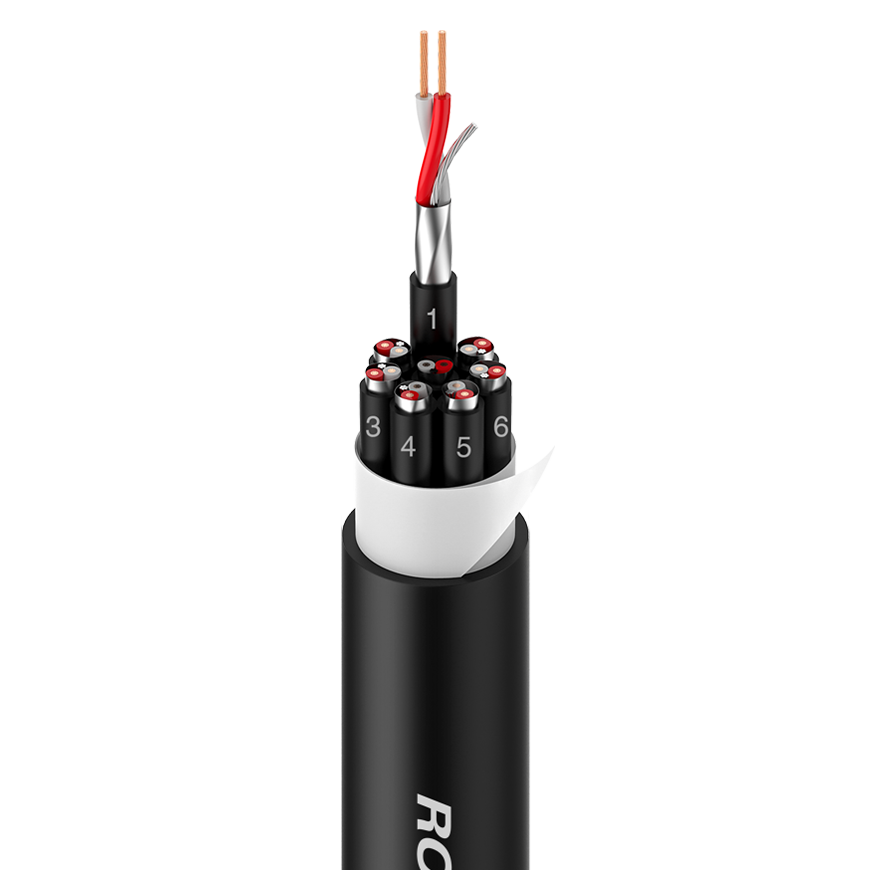

• Each pair is individually insulated with black and number-printed PVC jacket
• Excellent to work with due to the use of a special AL/PT-foil
• Flexible due to the special wire construction
• Good shielding due to the overall and individual wire pair shielding
Applications
• Reasonable cable for the construction of stage box systems and multi-pair systems
• Dependable cable for permanent installation in installation technologies
Cable Colour
• Black
Technical Data
|
|
|
|
Order Code
|
TCG4
|
TCG8
|
PVC jacket, diameter
|
10.5 mm
|
15 mm
|
Cond. PVC jacket,diameter
|
3.2 mm
|
3.2 mm
|
AWG
|
24
|
24
|
No. of inner conductors
|
4 x 2 x 0.22 mm²
|
8 x 2 x 0.22 mm²
|
Copper strand per conductor
|
28 x 0.10 mm
|
28 x 0.10 mm
|
Conductor insulation
|
PE 1.2 mm
|
PE 1.2 mm
|
Shielding
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
Shielding factor
|
100 %
|
100 %
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. 70 °C
|
max. 70 °C
|
|
|
|
Electrical Data
|
|
|
Capac. cond./cond. per 1 m
|
70 pF
|
70 pF
|
Capac. cond./shield. per 1 m
|
147 pF
|
147 pF
|
|
Cond. resistance per 1 m
|
80 mΩ
|
80 mΩ
|
|
Shield. resistance per 1 m
|
100 mΩ
|
100 mΩ
|
