Features

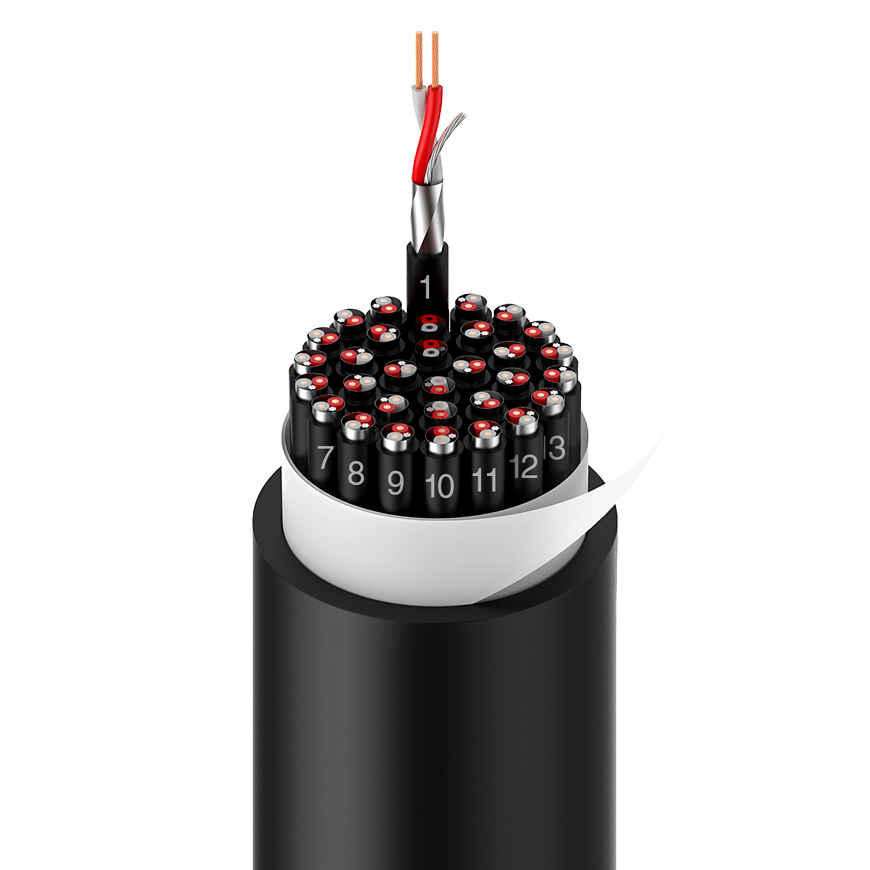

• Each pair is individually insulated with black and number-printed PVC jacket
• Excellent to work with due to the use of a special AL/PT-foil
• Flexible due to the special wire construction
• Good shielding due to the overall and individual wire pair shielding
Applications
• Reasonable cable for the construction of stage box systems and multi-pair systems
• Dependable cable for permanent installation in installation technologies
Cable Colour
• Black
Technical Data
|
|
|
|
|
|
Order Code
|
TCE2
|
TCE4
|
TCE8
|
TCE12
|
PVC jacket, diameter
|
8.5 mm
|
10 mm
|
14 mm
|
15 mm
|
Cond. PVC jacket,diameter
|
3.0 mm
|
3.0 mm
|
3.0 mm
|
3.0 mm
|
AWG
|
26
|
26
|
26
|
26
|
No. of inner conductors
|
2 x 2 x 0.14 mm²
|
4 x 2 x 0.14 mm²
|
8 x 2 x 0.14 mm²
|
12 x 2 x 0.14 mm²
|
Copper strand per conductor
|
18 x 0.10 mm
|
18 x 0.10 mm
|
18 x 0.10 mm
|
18 x 0.10 mm
|
Conductor insulation
|
PE 1.05 mm
|
PE 1.05 mm
|
PE 1.05 mm
|
PE 1.05 mm
|
Shielding
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
Shielding factor
|
100 %
|
100 %
|
100 %
|
100 %
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. 70 °C
|
max. 70 °C
|
max. 70 °C
|
max. 70 °C
|
|
|
|
|
|
Electrical Data
|
|
|
|
|
Capac. cond./cond. per 1 m
|
66 pF
|
66 pF
|
66 pF
|
66 pF
|
Capac. cond./shield. per 1 m
|
140 pF
|
140 pF
|
140 pF
|
140 pF
|
|
Cond. resistance per 1 m
|
126.5 mΩ
|
126.5 mΩ
|
126.5 mΩ
|
126.5 mΩ
|
|
Shield. resistance per 1 m
|
105.2 mΩ
|
105.2 mΩ
|
105.2 mΩ
|
105.2 mΩ
|
Technical Data
|
|
|
|
|
|
Order Code
|
TCE16
|
TCE20
|
TCE24
|
TCE32
|
PVC jacket, diameter
|
18 mm
|
20 mm
|
22 mm
|
25 mm
|
Cond. PVC jacket,diameter
|
3.0 mm
|
3.0 mm
|
3.0 mm
|
3.0 mm
|
AWG
|
26
|
26
|
26
|
26
|
No. of inner conductors
|
16 x 2 x 0.14 mm²
|
20 x 2 x 0.14 mm²
|
24 x 2 x 0.14 mm²
|
32 x 2 x 0.14 mm²
|
Copper strand per conductor
|
18 x 0.10 mm
|
18 x 0.10 mm
|
18 x 0.10 mm
|
18 x 0.10 mm
|
Conductor insulation
|
PE 1.05 mm
|
PE 1.05 mm
|
PE 1.05 mm
|
PE 1.05 mm
|
Shielding
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
Shielding factor
|
100 %
|
100 %
|
100 %
|
100 %
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. 70 °C
|
max. 70 °C
|
max. 70 °C
|
max. 70 °C
|
|
|
|
|
|
Electrical Data
|
|
|
|
|
Capac. cond./cond. per 1 m
|
66 pF
|
66 pF
|
66 pF
|
66 pF
|
Capac. cond./shield. per 1 m
|
140 pF
|
140 pF
|
140 pF
|
140 pF
|
|
Cond. resistance per 1 m
|
126.5 mΩ
|
126.5 mΩ
|
126.5 mΩ
|
126.5 mΩ
|
|
Shield. resistance per 1 m
|
105.2 mΩ
|
105.2 mΩ
|
105.2 mΩ
|
105.2 mΩ
|
Technical Data
|
|
|
Order Code
|
TCE40
|
PVC jacket, diameter
|
26.7 mm
|
Cond. PVC jacket,diameter
|
3.0 mm
|
AWG
|
26
|
No. of inner conductors
|
40 x 2 x 0.14 mm²
|
Copper strand per conductor
|
18 x 0.10 mm
|
Conductor insulation
|
PE 1.05 mm
|
Shielding
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
Shielding factor
|
100 %
|
Temperature range
|
min. -20 °C
|
Temperature range
|
max. 70 °C
|
|
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
66 pF
|
Capac. cond./shield. per 1 m
|
140 pF
|
|
Cond. resistance per 1 m
|
126.5 mΩ
|
|
Shield. resistance per 1 m
|
105.2 mΩ
|
