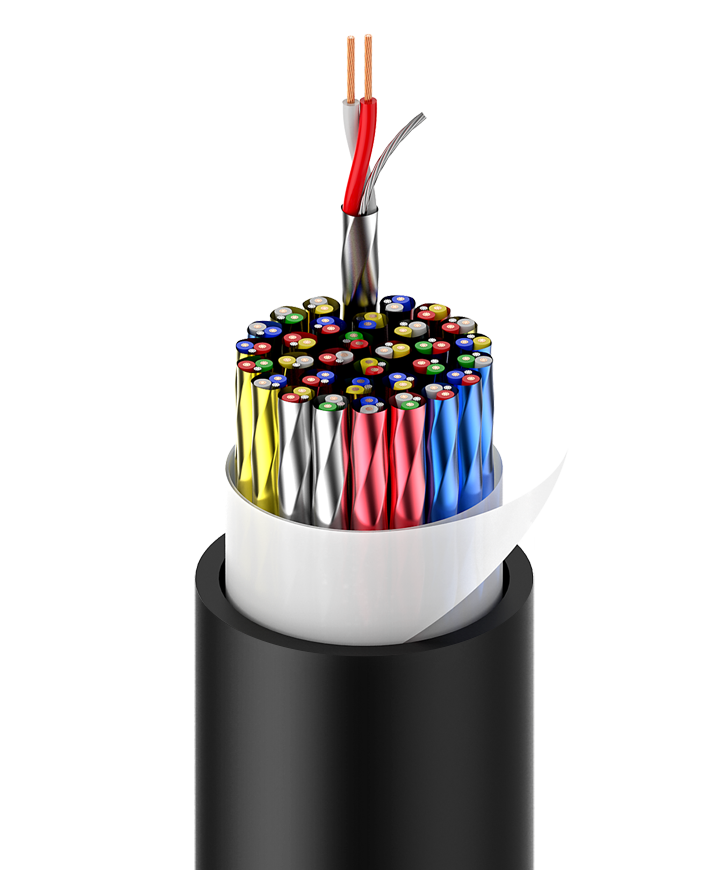

Features
• Compact diameter
• Excellent to work with due to the use of a special AL/PT-foil
• Flexible due to the special wire construction
• Good shielding due to the overall and individual wire pair shielding
• Very good pricing
Applications
• Reasonable cable for the construction of stage box systems and multi-pair systems
• Dependable cable for permanent installation in installation technologies
Cable Colour
• Black
Technical Data
|
|
|
|
|
|
Order Code
|
TCC8
|
TCC12
|
TCC16
|
TCC20
|
PVC jacket, diameter
|
9.5 mm
|
11.5 mm
|
13.5 mm
|
14.5 mm
|
AWG
|
26
|
26
|
26
|
26
|
No. of inner conductors
|
8 x 2 x 0.14 mm²
|
12 x 2 x 0.14 mm²
|
16 x 2 x 0.14 mm²
|
20 x 2 x 0.14 mm²
|
Copper strand per conductor
|
18 x 0.10 mm
|
18 x 0.10 mm
|
18 x 0.10 mm
|
18 x 0.10 mm
|
Conductor insulation
|
PE 1.05 mm
|
PE 1.05 mm
|
PE 1.05 mm
|
PE 1.05 mm
|
Shielding
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
Shielding factor
|
100 %
|
100 %
|
100 %
|
100 %
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. 70 °C
|
max. 70 °C
|
max. 70 °C
|
max. 70 °C
|
|
|
|
|
|
Electrical Data
|
|
|
|
|
Capac. cond./cond. per 1 m
|
65 pF
|
65 pF
|
65 pF
|
65 pF
|
Capac. cond./shield. per 1 m
|
130 pF
|
130 pF
|
130 pF
|
130 pF
|
|
Cond. resistance per 1 m
|
125 mΩ
|
125 mΩ
|
125 mΩ
|
125 mΩ
|
|
Shield. resistance per 1 m
|
110 mΩ
|
110 mΩ
|
110 mΩ
|
110 mΩ
|
Technical Data
|
|
|
|
|
Order Code
|
TCC24
|
TCC32
|
TCC40
|
PVC jacket, diameter
|
16 mm
|
18 mm
|
20 mm
|
AWG
|
26
|
26
|
26
|
No. of inner conductors
|
24 x 2 x 0.14 mm²
|
32 x 2 x 0.14 mm²
|
40 x 2 x 0.14 mm²
|
Copper strand per conductor
|
18 x 0.10 mm
|
18 x 0.10 mm
|
18 x 0.10 mm
|
Conductor insulation
|
PE 1.05 mm
|
PE 1.05 mm
|
PE 1.05 mm
|
Shielding
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
|
Shielding factor
|
100 %
|
100 %
|
100 %
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. 70 °C
|
max. 70 °C
|
max. 70 °C
|
|
|
|
|
Electrical Data
|
|
|
|
Capac. cond./cond. per 1 m
|
65 pF
|
65 pF
|
65 pF
|
Capac. cond./shield. per 1 m
|
130 pF
|
130 pF
|
130 pF
|
|
Cond. resistance per 1 m
|
125 mΩ
|
125 mΩ
|
125 mΩ
|
|
Shield. resistance per 1 m
|
110 mΩ
|
110 mΩ
|
110 mΩ
|
