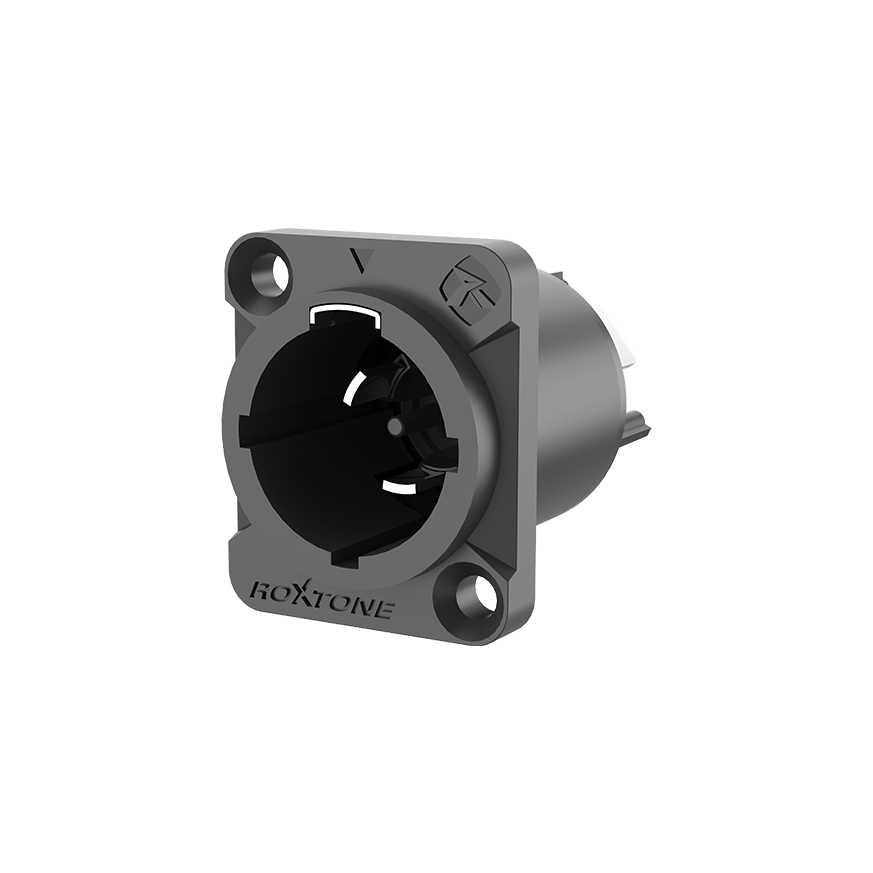

RAC3MPWP
XROSSLINK series power socket - Waterproof IP65

FEATURES

• Unique design lockable 3 pin equipment(AC)connector, ideal for LED screen,lighting and other equipments

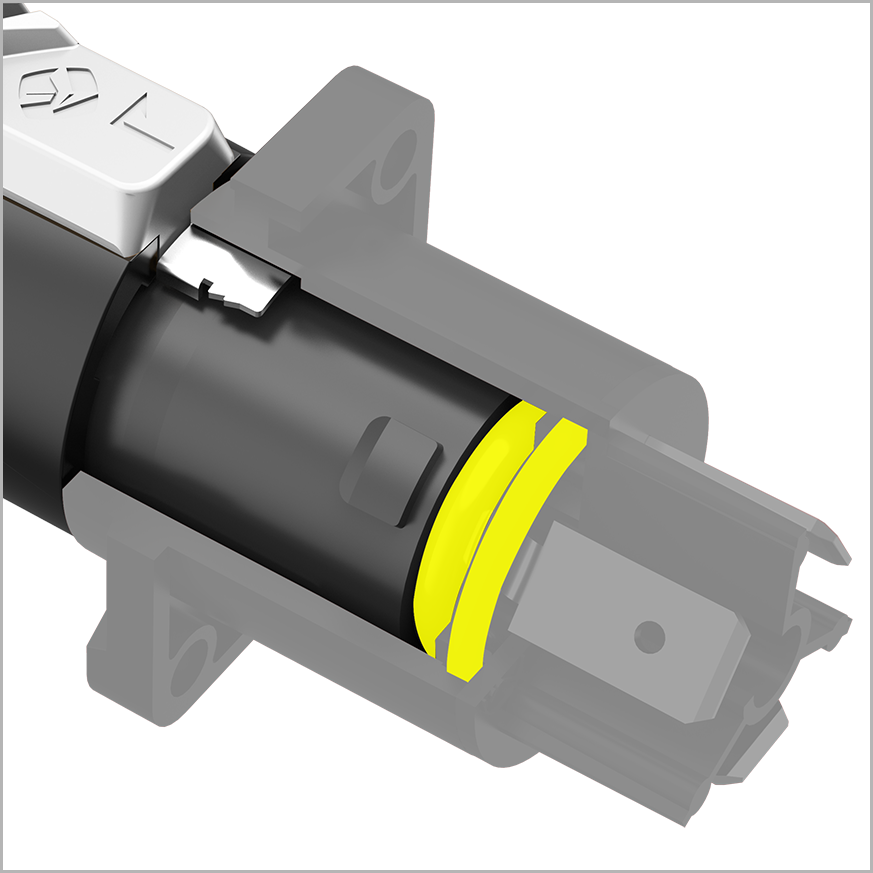

• Dust and water resistant according to IP65 in mated condition
• Fast and easy twist lock system
• Flame retardant materials create safer use
• Glass fiber composite material, extremely robust and reliable
• ROXTONE brand engraved ont the shell
• Patent protected



TECHNICAL DATA

Housing
PA6 30% GR
Contacts Brass
Contacts plating
Silver
Dust cover
Silicone
Sealing ring
Silicone
Number of contacts 3
Rated current per contact 20 A rms
Rate voltage 250 V ac
Protection class(mated)
IP65
Fammability UL V-0


ENGINEERING DRAWING





APPLICATION & ASSEMBLY INSTRUCTION
                             DOWNLOAD
