Features

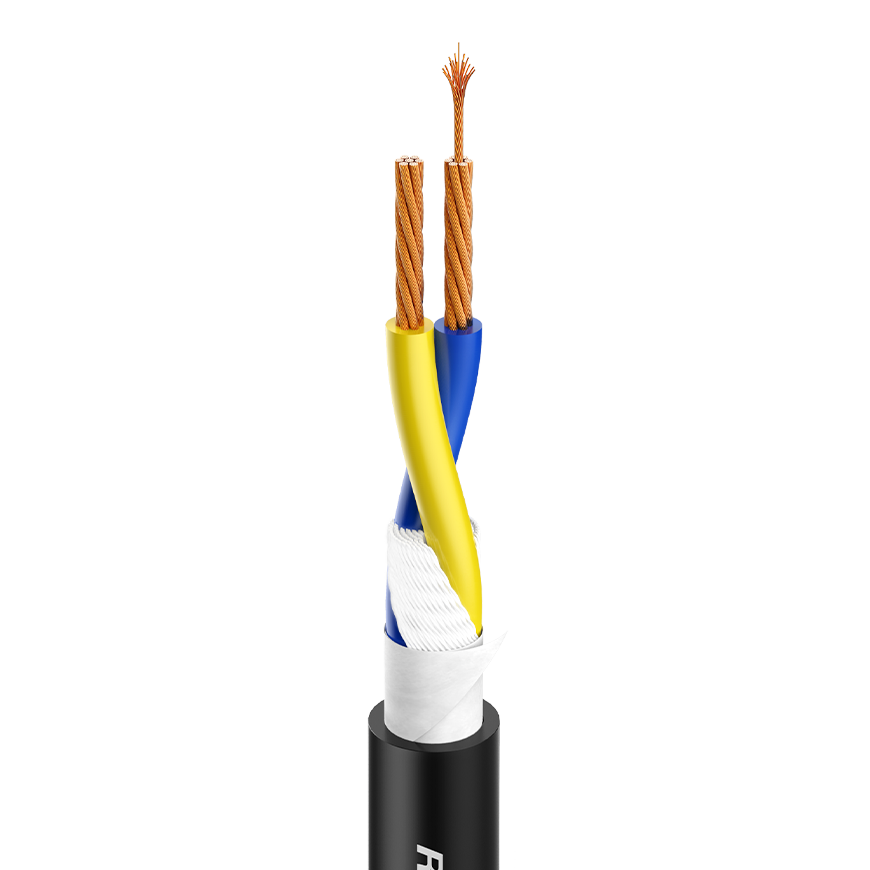

• The special double strands technology with very thin OFC wires ensure the cable to be super highly flexible
• Soft PVC jacket and inner conductors twisted grant a perfect winding
Applications
• All types of sound systems
• Wiring of HiFi-systems
• Mobile outdoor areas
Cable Colour
• Black
• Blue
Technical Data
|
|
|
|
|
|
Order Code
|
HFSC215
|
HFSC215
|
HFSC225
|
HFSC240
|
Jacket, diameter
|
PVC 8.5 mm
|
PVC 9.2 mm
|
PVC 9.5 mm
|
PVC 11.5 mm
|
AWG
|
16
|
14
|
14
|
12
|
No. of inner conductors
|
2 x 1.50 mm²
|
2 x 2.0 mm²
|
2 x 2.5 mm²
|
2 x 4.0 mm²
|
Copper strand per conductor
|
192 x 0.10 mm
|
255 x 0.10 mm
|
318 x 0.10 mm
|
511 x 0.10 mm
|
Cond. PVC insulation, diameter
|
3.0 mm
|
3.25 mm
|
3.4 mm
|
4.2 mm
|
Temperature range
|
min.-20 °C
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max.70 °C
|
max. +70 °C
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
|
|
|
|
|
Electrical Data
|
|
|
|
|
Capac. cond./cond. per 1 m
|
127 pF
|
120 pF
|
109 pF
|
121 pF
|
Cond. resistance per 1 m
|
11.5 mΩ
|
8 mΩ
|
6.6 mΩ
|
3.9 mΩ
|
