AC040

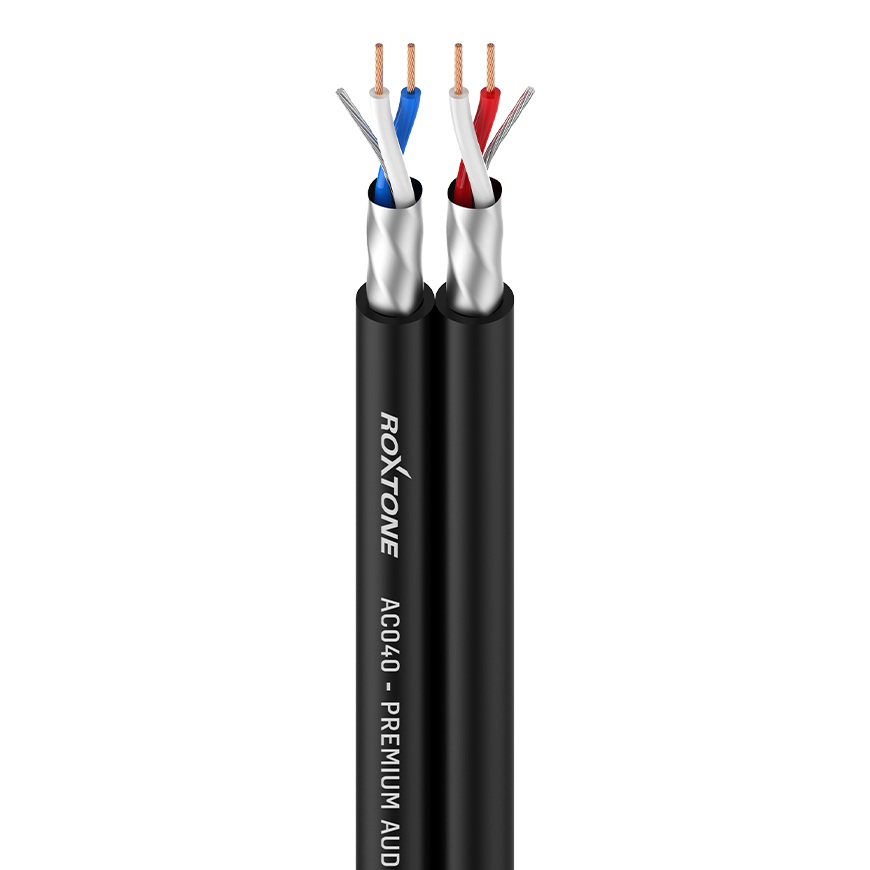

Flat audio cable - 24AWG - 2 x 1 x 0.22mm²

Features
• The use of OFC stands and a large conductor cross-section of 2 x 0.22mm² ensure high quality signal transmission

• Excellent shielding 100% provided by AL fleece and drain wire

• Small jacket diameter, ensuring easy handling with XLR, JACK and RCA connectors


Applications
• Cabling for balanced units

• Connection of HiFi units

• Construction of Y-adapter cables

• Manufacture of insert cables


Cable Colour

• Black


Technical Data

PVC Jacket, diameter
5 x 10 mm
AWG
24
No. of inner conductors
2 x 2 x 0.22 mm²
Copper strand per conductor
28 x 0.10 mm
Conductor insulation
PE 1.40 mm
Shielding

AL fleece

Shielding factor
100 %
Temperature range
min.-20 °C
Temperature range
max.70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./cond. per 1 m
70 pF
Capac. cond./shielding per 1 m
120 pF
Cond. resistance per 1 km
<85 Ω
Shielding resistance per 1 km
26 Ω
Insulation resist. per 1 km > 1 GΩ
Surge impedance
approx.100Ω


Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
