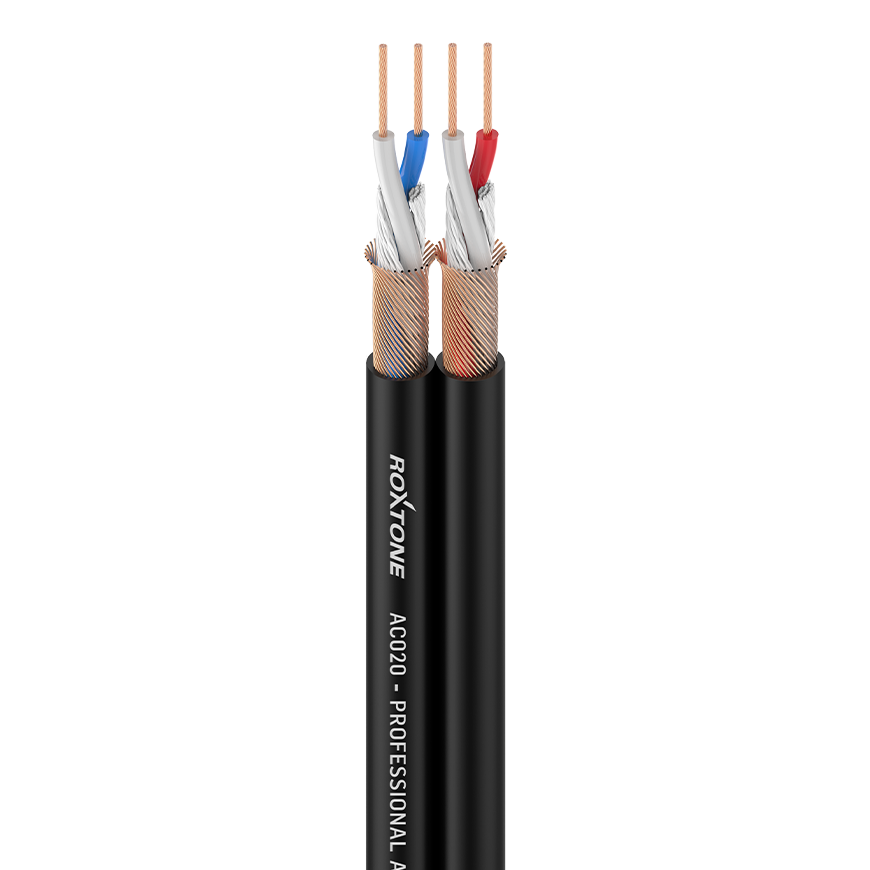

Features
• Very flexible due to the
use of fine individual stranding
•
Every conductor is insulated and individually shielded with copper spiral shielding
•
Small jacket diameter, ensuring easy handling with XLR and jack connectors
Applications
• Cabling for balanced
units
•
Connection of HiFi-units
•
Construction of Y-adapter cables
•
Manufacture of insert cables
Cable Colour
• Black
• Blue
Technical Data
|
|
Jacket, diameter
|
PVC 4 x 8 mm
|
AWG
|
26
|
No. of inner conductors
|
2 x 2 x 0.14 mm²
|
Copper strand per conductor
|
18 x 0.10 mm
|
Conductor insulation
|
PE 1.2 mm
|
Shielding
|
copper spiral shielding
|
Shielding factor
|
90 %
|
Temperature range
|
min.-20 °C
|
Temperature range
|
max.+70 °C
|
Packaging
|
100/300 m roll
|
|
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
50 pF
|
Capac. cond./shield. per 1 m
|
100 pF
|
Cond. resistance per 1 m
|
122 mΩ
|
Shielding resistance per 1 m
|
50 mΩ
|
