Features

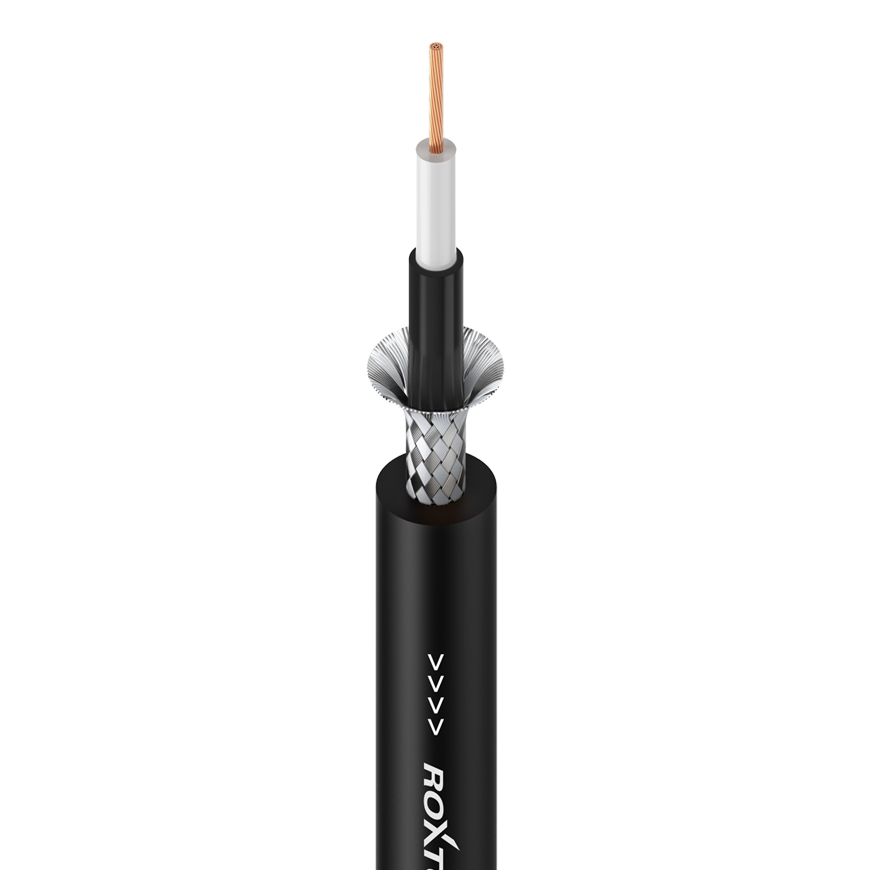

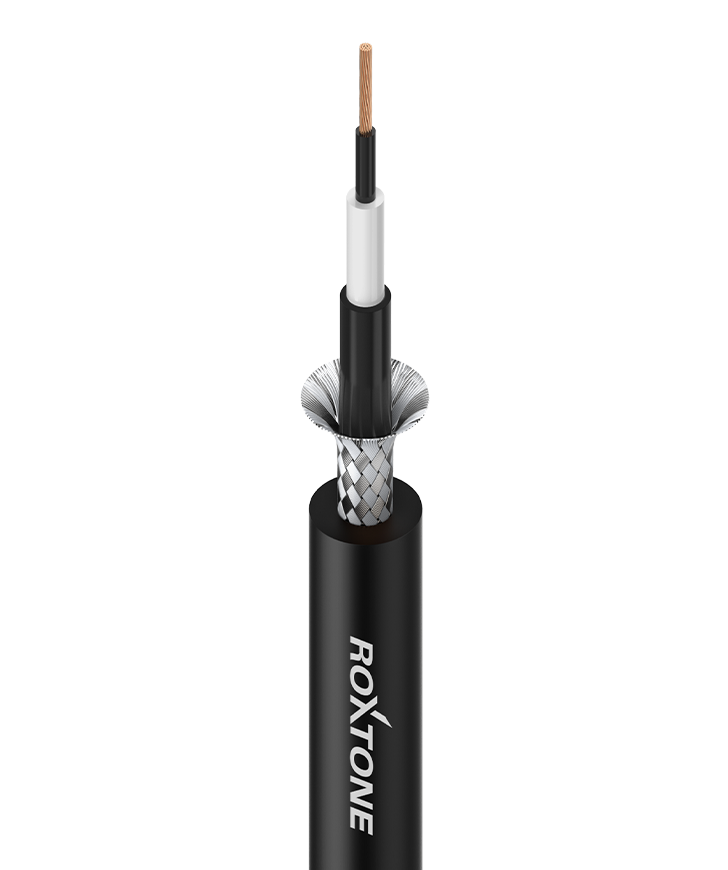

• Very robust due to the large conductor diameter and fine individual stranding
• 100% protected due to double shielding
(“X” mixed braided shielding + semiconductor )
• Good electrical values, super low capacitance 56 pF
• Powerful, clear sound transmission of any instrument signals
Applications
• High end quality cable for guitar and keyboard in studio and stage

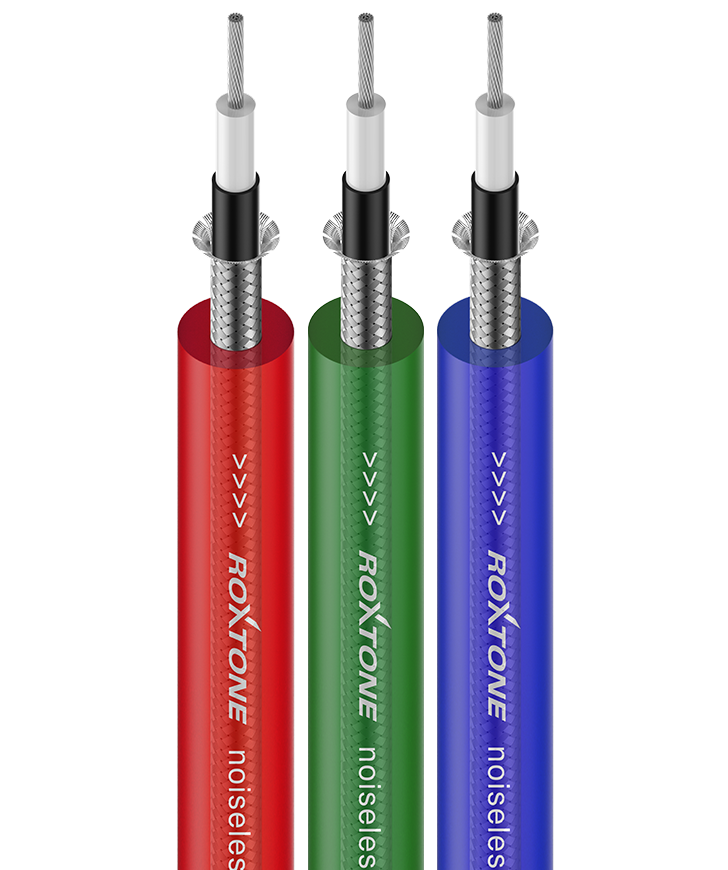

Cable Colour
• Black
• Transparent brown
Technical Data
|
|

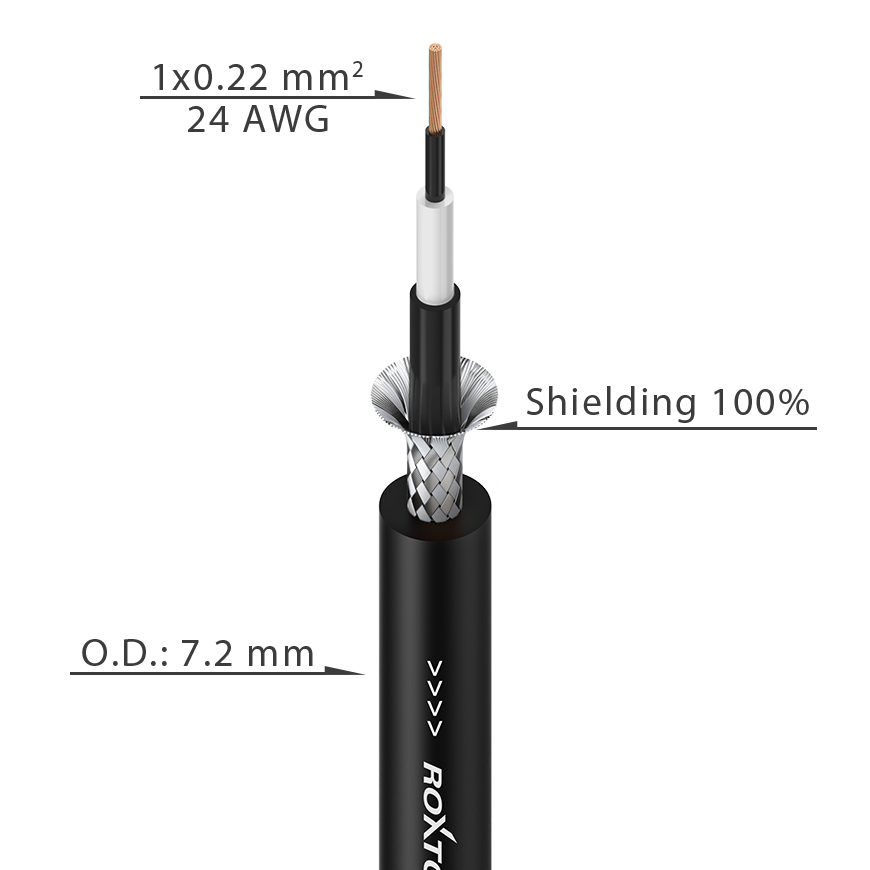

Jacket, diameter
|
PVC 7.2 mm
|
AWG
|
24
|
No. of inner conductors
|
1 x 0.22 mm²
|
Copper strand per conductor
|
28 x 0.10 mm
|
Conductor insulation
|
Foamed PE
|
Shielding
|
“X” mixed braided shielding
+ semiconductor
|
Shielding factor
|
100 %
|
Temperature range
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
Packaging
|
100 m roll
|
|
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
56 pF
|
Cond. resistance per 1 m
|
77 mΩ
|
Shield. resistance per 1 m
|
48.5 mΩ
|
