Features
• D-size feed through pedestal
• ROXTONE brand engraved on the housing
• Patent Protected
Technical Data
|
|
Housing
|
Zinc alloy diecast
|
Insert
|
PA6 30% GR
|
Power Supply
|
5V / 1.5A
|
Insulation Resistance
|
>500MΩ
|
Dielectric Strength
|
1KV dc
|
Contact-Plating
|
Gold 30μ
|
|
|
Order Code
|
Description
|
RAE8FD-C6A
|

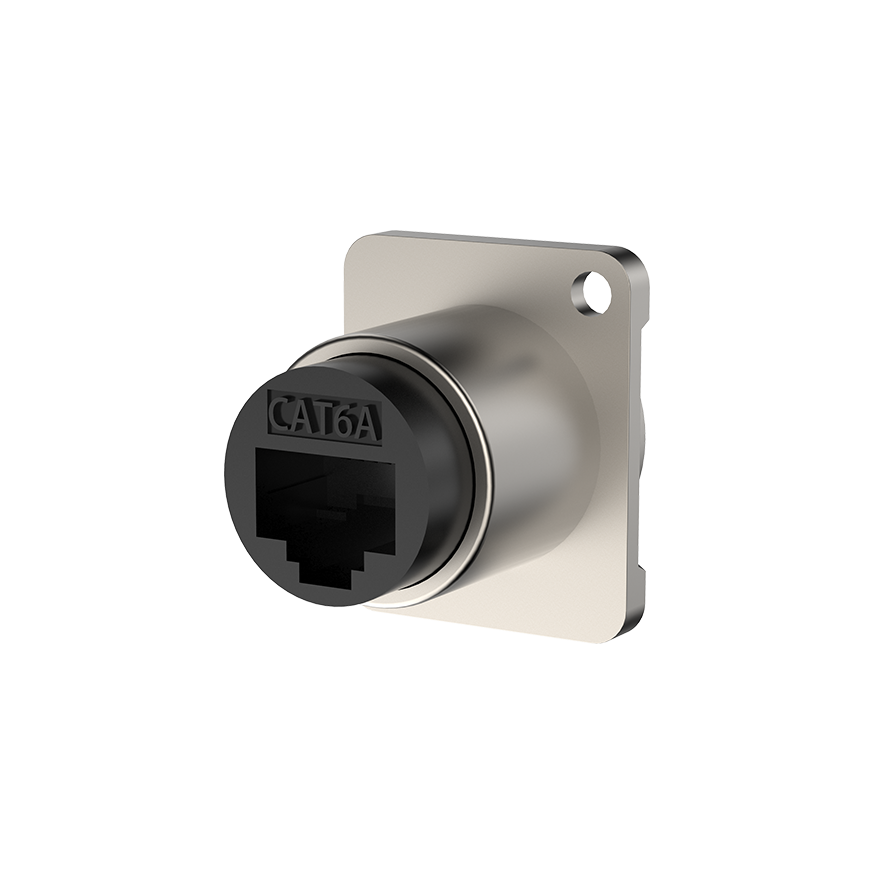

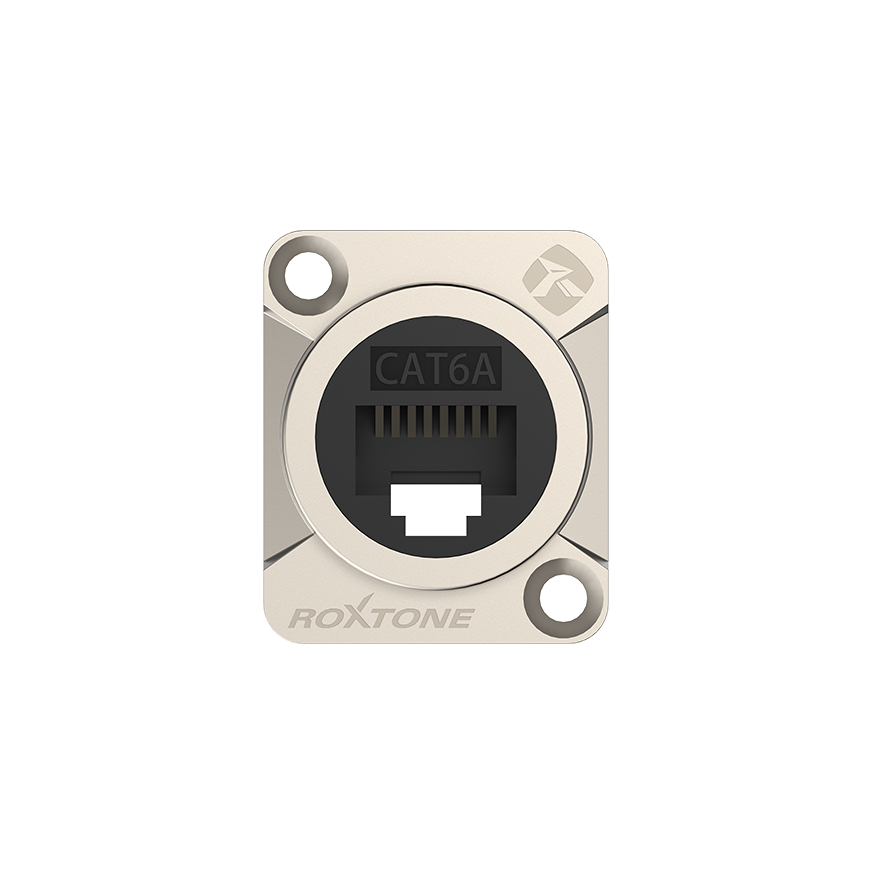

Feed through chassis RJ45 (CAT6A) adapter, Nickel plated housing
|
RAE8FD-C6-B
|

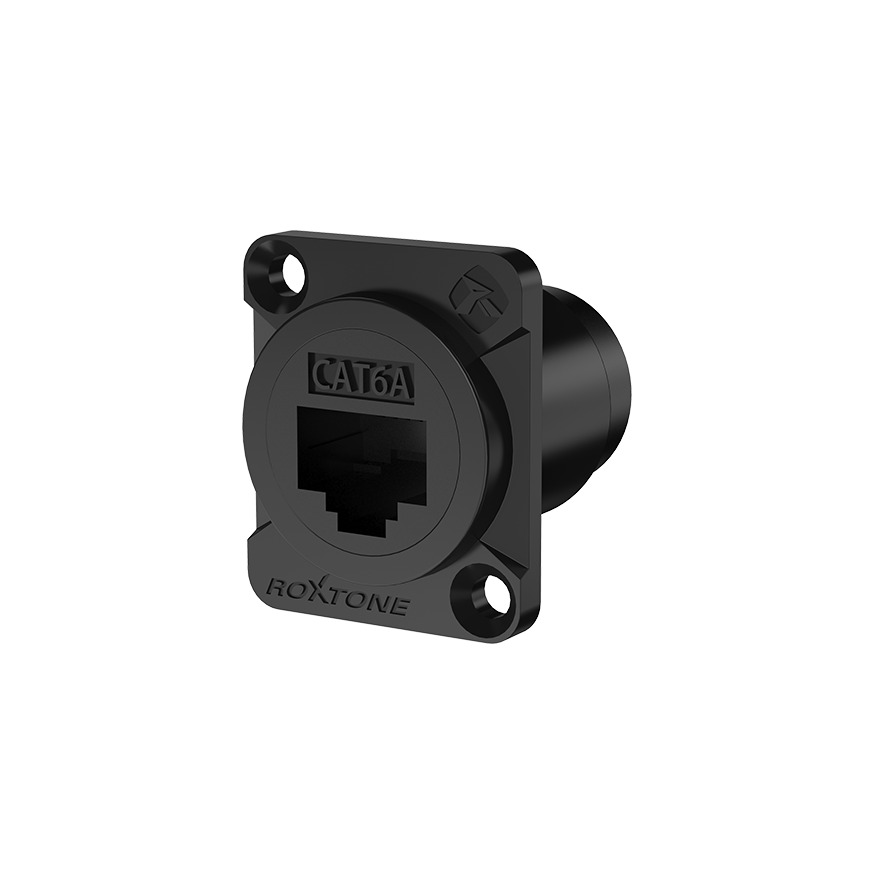

Feed through chassis RJ45 (CAT6A) adapter Black housing
|

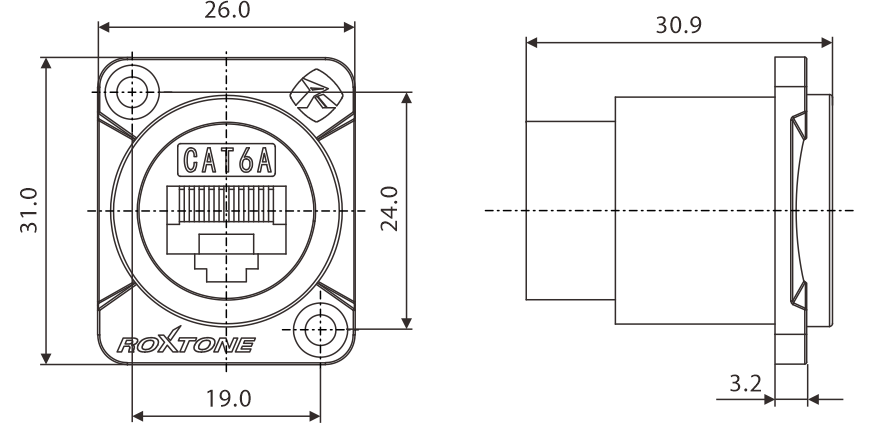

Engineering Drawing
