Features
• IP66 Waterproof heavy-duty XLR sockets
• Mating works with any waterproof XLR connector
• Full metal solid structure housing for long life using
• Excellent shielding effect due to the full metal housing
• Equipped with a separate grounding ring to provide better protection for equipment
• Unique creative waterproof system supply the reliable and durable waterproof effect
• Passed the testing of beyond 2,000 mating cycles, due to made from high-quality raw materials

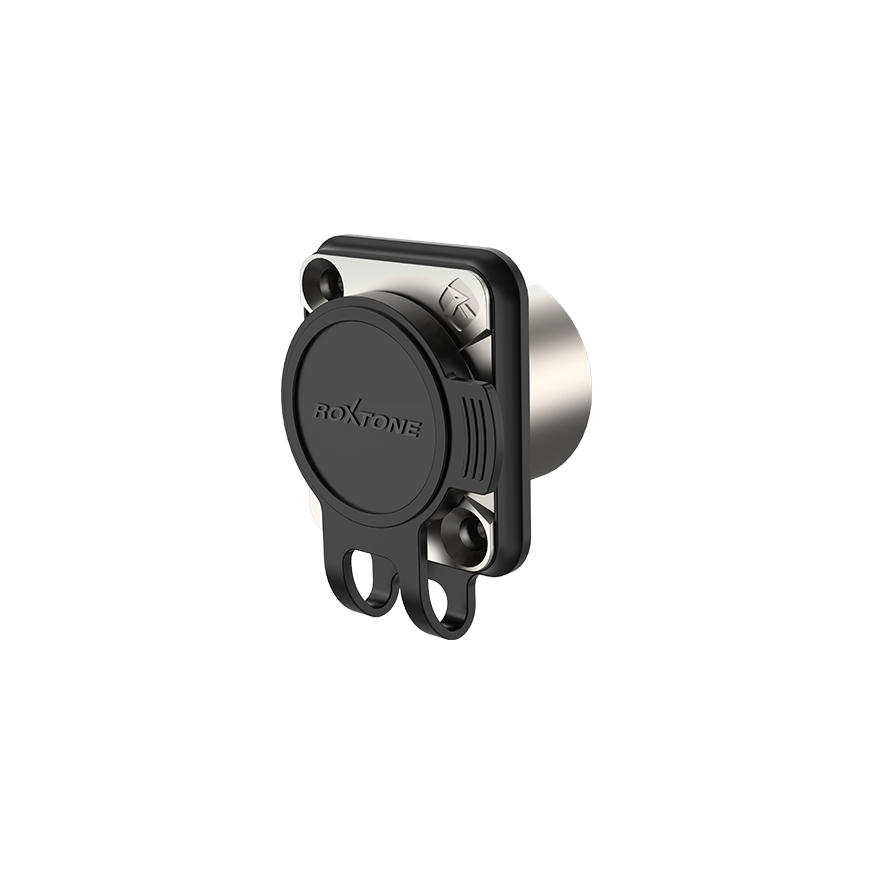

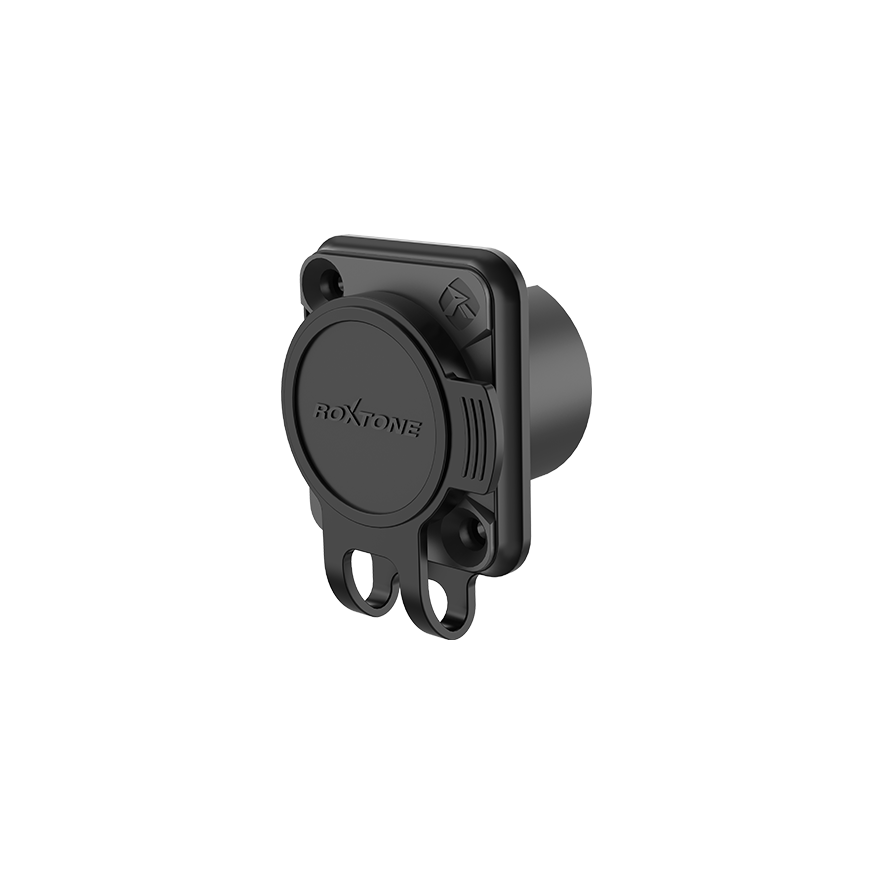

• Dust resistant cover of socket protects non-use equipment (must be purchased separately)
• Passed SGS IP66 testing
• Invention patent protecting
Technical Data
|
|
Housing
|
Zinc alloy diecast
|
Insert
|
PBT
|
Contacts
|
Brass
|
Contacts plating
|
Gold
|
Latch
|
Strainless steel
|
Dust cover
|
Silicone
|
Sealing ring
|
Silicone
|
|
|
|
Order Code
|
Description
|

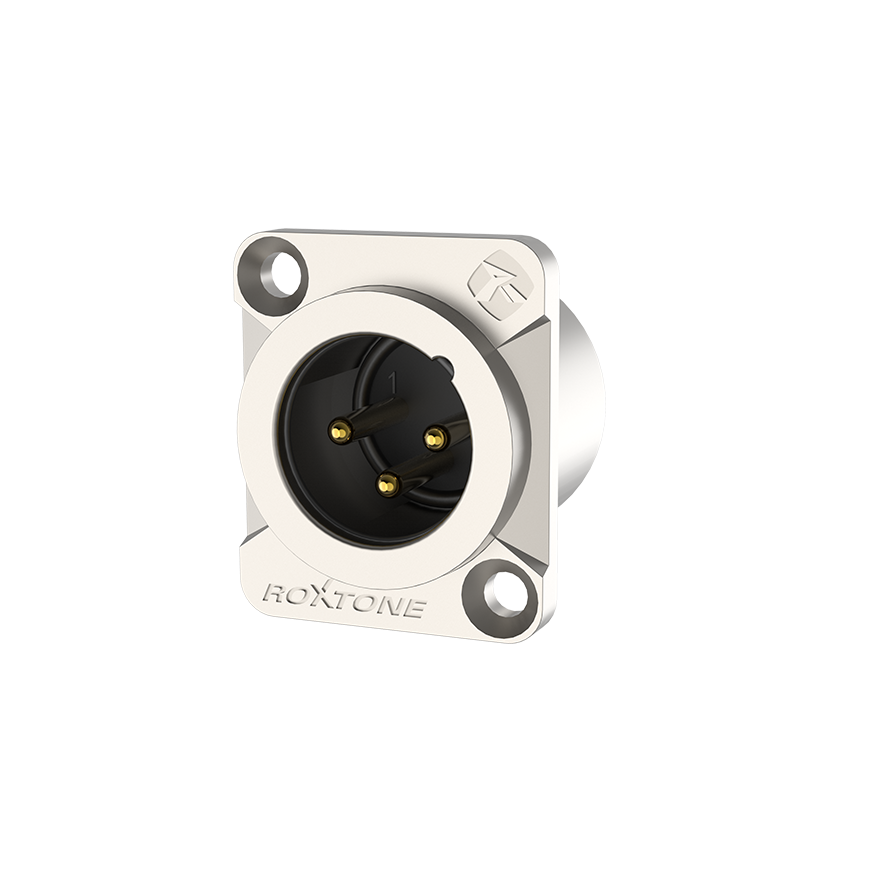

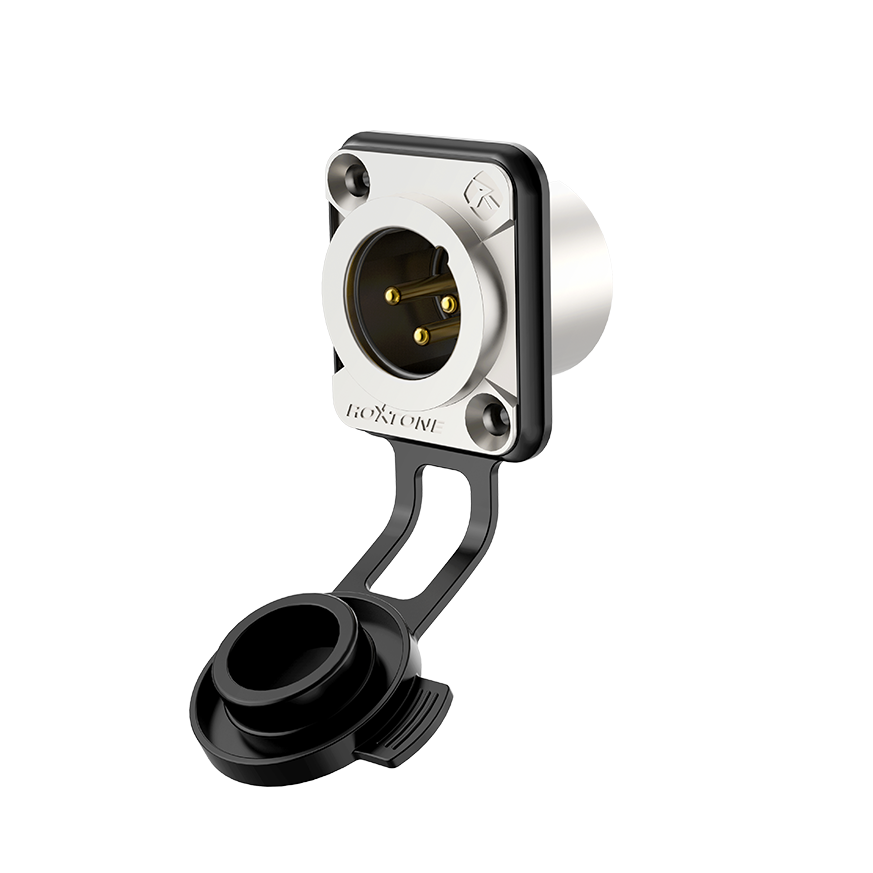

RX3MDWP-NG
|
3 pole XLR male socket, Nickel plated housing, Gold plated contacts
|

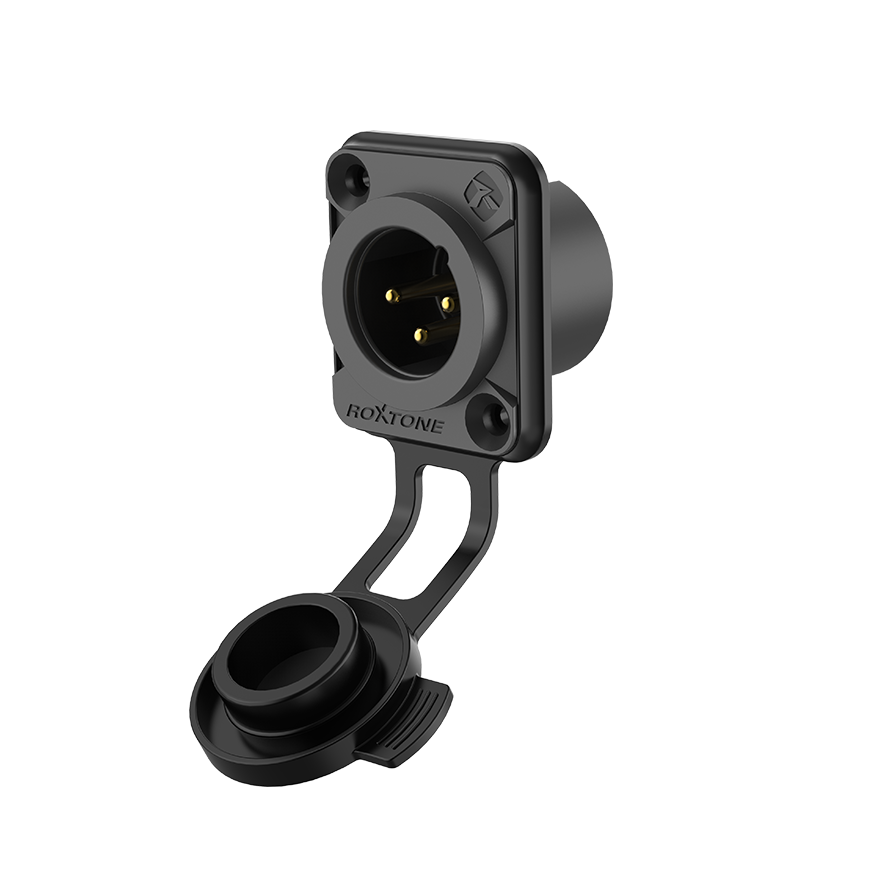

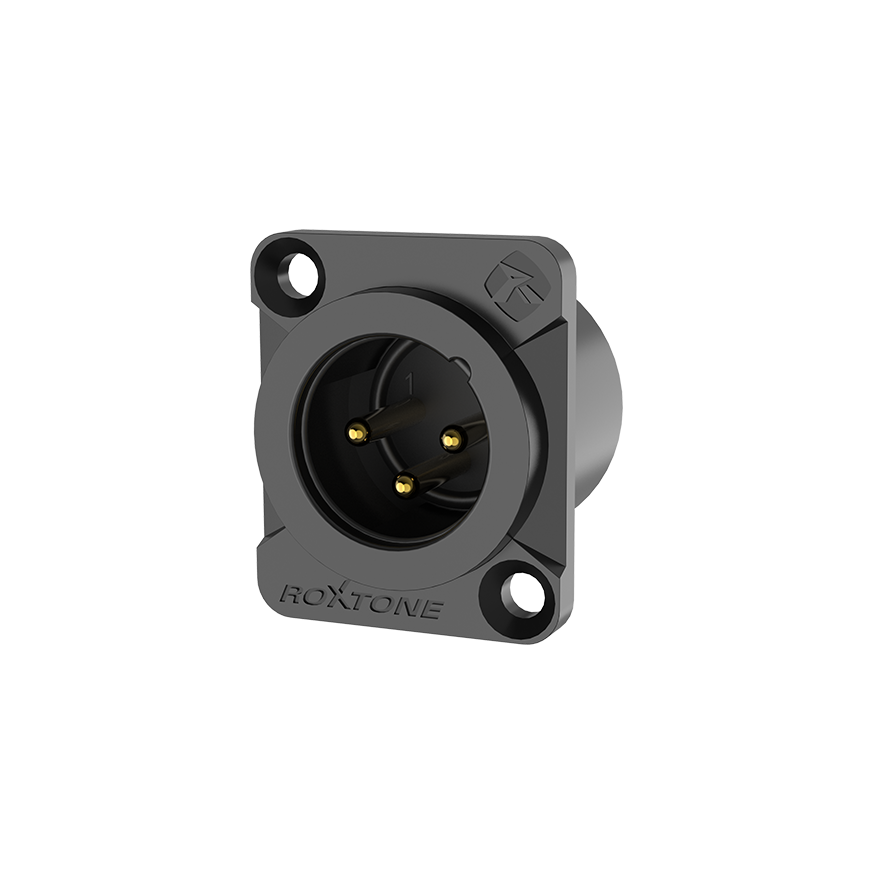

RX3MDWP-BG
|
3 pole XLR male socket, Black housing, Gold plated contacts
|

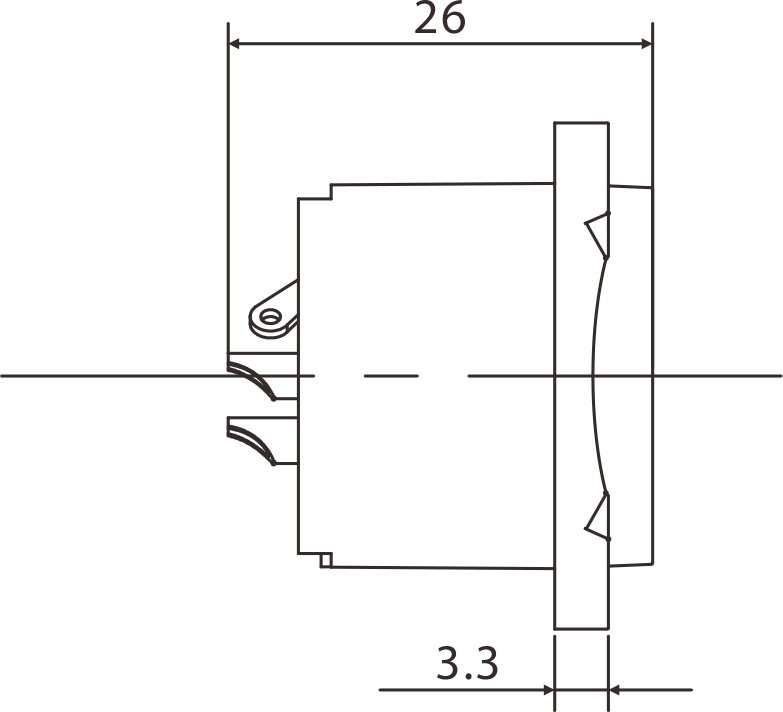

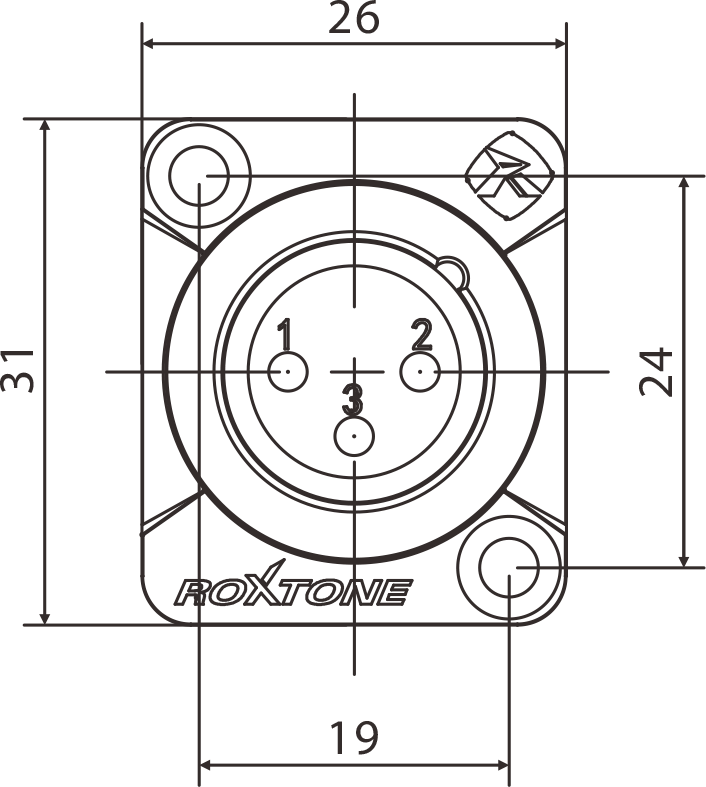

Engineering Drawing
Accessories
Order Code
|
DCXM
|
Description
|
Silicone dust cover
|
