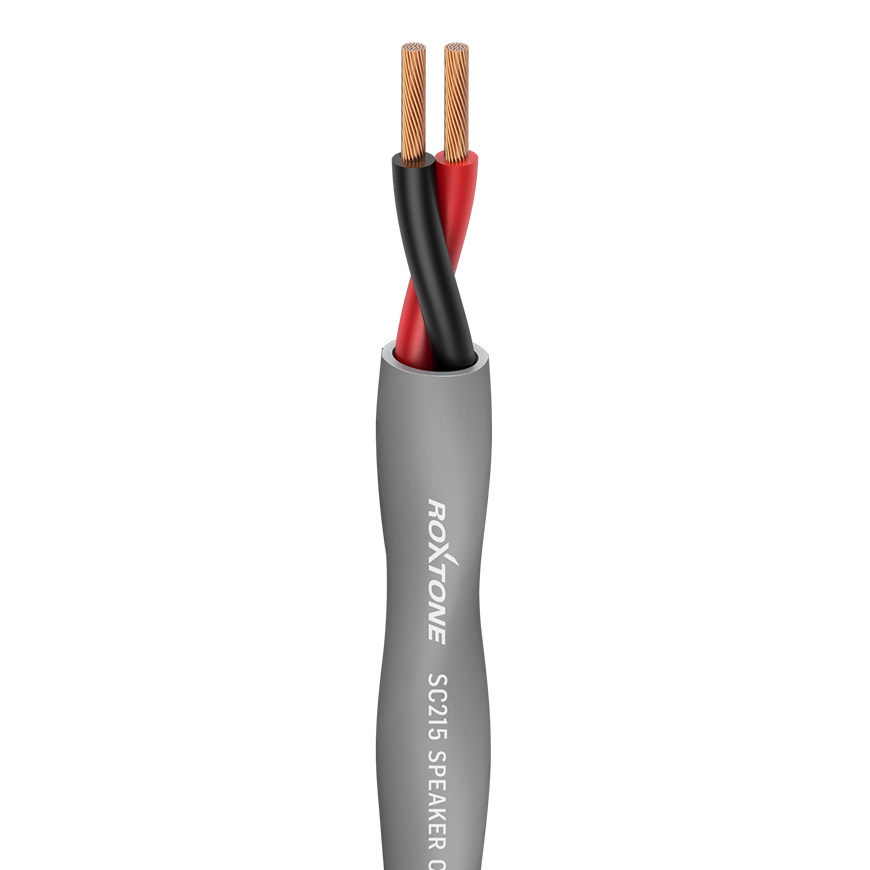

Features
• Flexible and small diameter
• Compact structure , easy for use in building conduits
• Competitive price
Applications
• Fixed installation in building services engineering
• Wiring of hi-fi system
Cable Colour
• Grey
Technical Data
|
|
|
|
|
|
Order Code
|
SC215
|
SC220
|
SC225
|
SC240
|
Jacket, diameter
|
PVC 7.5 mm
|
PVC 8.0 mm
|
PVC 8.5 mm
|
PVC 10.2 mm
|
AWG
|
16
|
14
|
14
|
12
|
No. of inner conductors
|
2 x 1.5 mm²
|
2 x 2.0 mm²
|
2 x 2.5 mm²
|
2 x 4.0 mm²
|
Copper strand per conductor
|
48 x 0.20 mm
|
64 x 0.20 mm
|
80 x 0.20 mm
|
80 x 0.25 mm
|
Cond. insulation, diameter
|
PVC 2.8 mm
|
PVC 3.0 mm
|
PVC 3.2 mm
|
PVC 4.0 mm
|
Temperature range
|
min. -15 °C
|
min. -15 °C
|
min. -15 °C
|
min. -15 °C
|
Temperature range
|
max. +70 °C
|
max. +70 °C
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
|
|
|
|
|
Electrical Data
|
|
|
|
|
Capac. cond./cond. per 1 m
|
94 pF
|
83 pF
|
100 pF
|
96 pF
|
Cond. resistance per 1 m
|
12 mΩ
|
7.3 mΩ
|
2.4 mΩ
|
4.3 mΩ
|
