Features

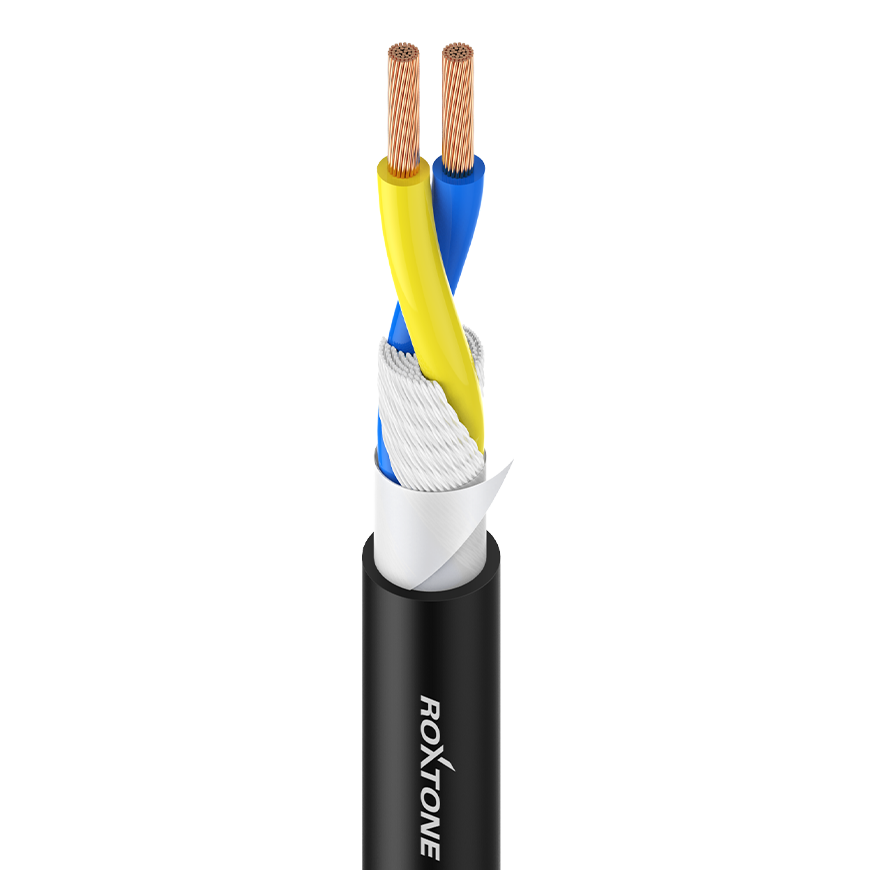

• Soft PVC jacket and inner
conductors twisted grant a perfect winding
•
Small diameter
•
Very affordable
Applications
• All types of sound
systems
•
For permanent installation
•
Wiring of HiFi-systems
•
Mobile outdoor areas
Cable Colour
• Black
• Blue
Technical Data
|
|
|
|
|
Order Code
|
SC020G
|
SC020B
|
SC020C
|
Jacket, diameter
|
PVC 7.0 mm
|
PVC 8.0 mm
|
PVC 8.5 mm
|
AWG
|
16
|
16
|
14
|
No. of inner conductors
|
2 x 1.3 mm²
|
2 x 1.5 mm²
|
2 x 2.0 mm²
|
Copper strand per conductor
|
42 x 0.20 mm
|
48 x 0.20mm
|
64 x 0.20mm
|
Cond. insulation, diameter
|
PVC 2.4 mm
|
PVC 2.7 mm
|
PVC 2.9 mm
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
|
|
|
|
Electrical Data
|
|
|
|
Capac. cond./cond. per 1 m
|
164 pF
|
126 pF
|
134 pF
|
Cond. resistance per 1 m
|
12.15 mΩ
|
9.5 mΩ
|
5.3 mΩ
|
Technical Data
|
|
|
|
|
Order Code
|
SC020D
|
SC020E
|
SC020F
|
Jacket, diameter
|
PVC 9.0 mm
|
PVC 10.0 mm
|
PVC 11.0 mm
|
AWG
|
14
|
13
|
12
|
No. of inner conductors
|
2 x 2.5 mm²
|
2 x 3.0 mm²
|
2 x 4.0 mm²
|
Copper strand per conductor
|
80 x 0.20 mm
|
60 x 0.25 mm
|
80 x 0.25 mm
|
Cond. insulation, diameter
|
PVC 3.1 mm
|
PVC 3.5 mm
|
PVC 4.0 mm
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
|
|
|
|
Electrical Data
|
|
|
|
Capac. cond./cond. per 1 m
|
138 pF
|
140 pF
|
128 pF
|
Cond. resistance per 1 m
|
6.3 mΩ
|
5 mΩ
|
3.7 mΩ
|
