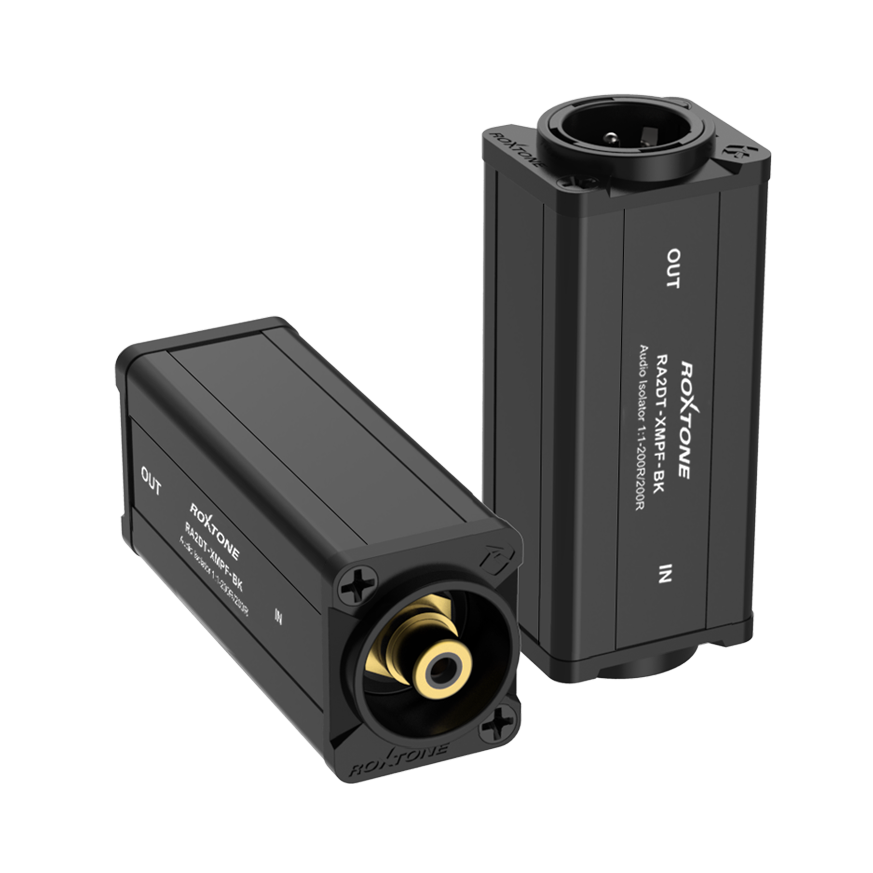

Professional “D” shape black aluminum-alloy adapter with audio transformer: 3-pole XLR male socket to RCA female socket with gold contact

• Audio Transformer 1:1 impedance ratio 200:200
• Low cost solution for unbalanced / balanced line conversion and passive Dl applications, where no earth or gain switching is required
• Source/ Load impedance 600 / 10K
Max. input level @ 50Hz at 1%thd:-3dBu

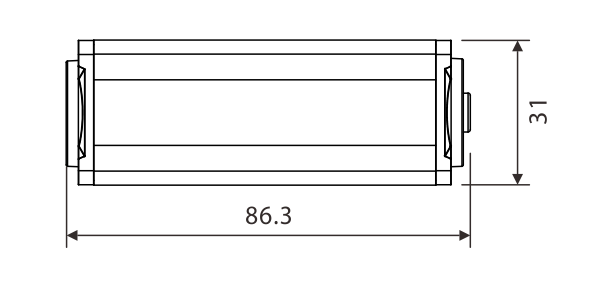

ENGINEERING DRAWING:

WIRING DIAGRAM:
