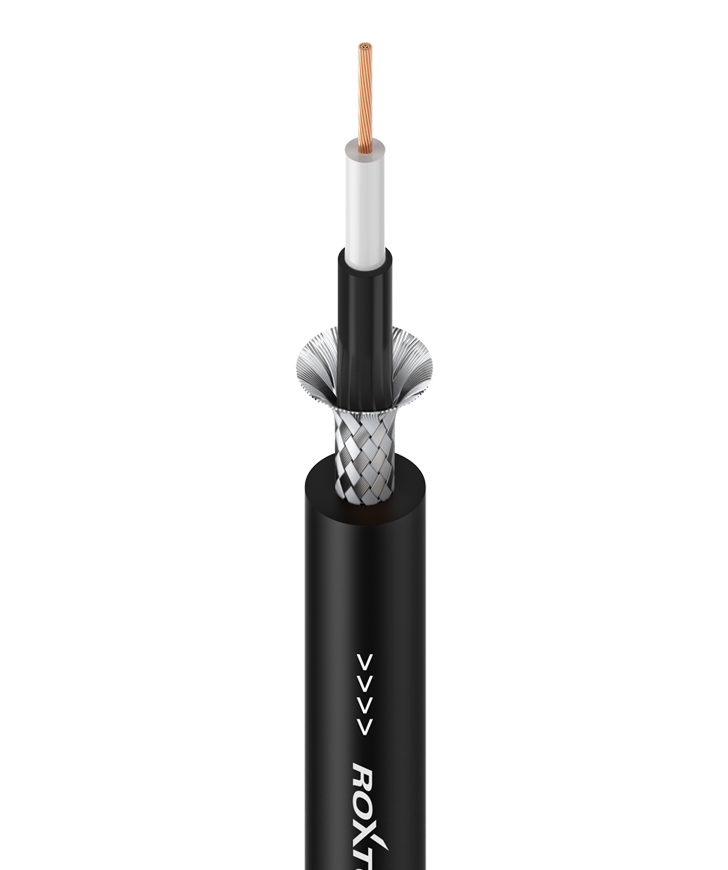

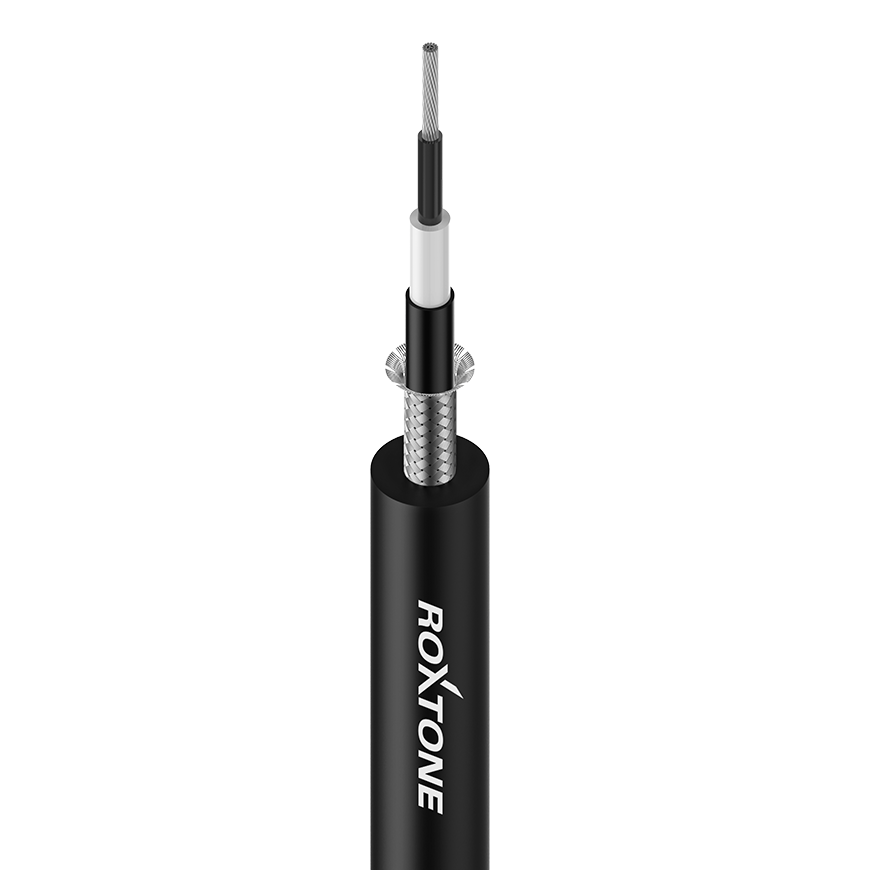

GC060T
Matt transparent instrument cable - 20AWG - 1 x 0.5mm²

Features

• Enormously powerful and clear sound image for bass, guitar, and keyboard due to the special stranding and a wire diameter of 0.50 mm²

• Double shielding due to the combination of copper braided shield and semiconductor shielding

• Very flexible and easy to wind due to the use of fine individual stranding

• Durability and robustness due to a special high quality PVC for the jacket

• Strain relief and good protection against bending due to the thick PVC-jacket


Applications

• High quality guitar cable for studio and stage

• Unbalanced cable for keyboards, samplers, mixing boards, etc.

• Connection of stereo video recorder and DAT-recorder


Cable Colour

• Transparent red
• Transparent oragne
• Transparent yellow

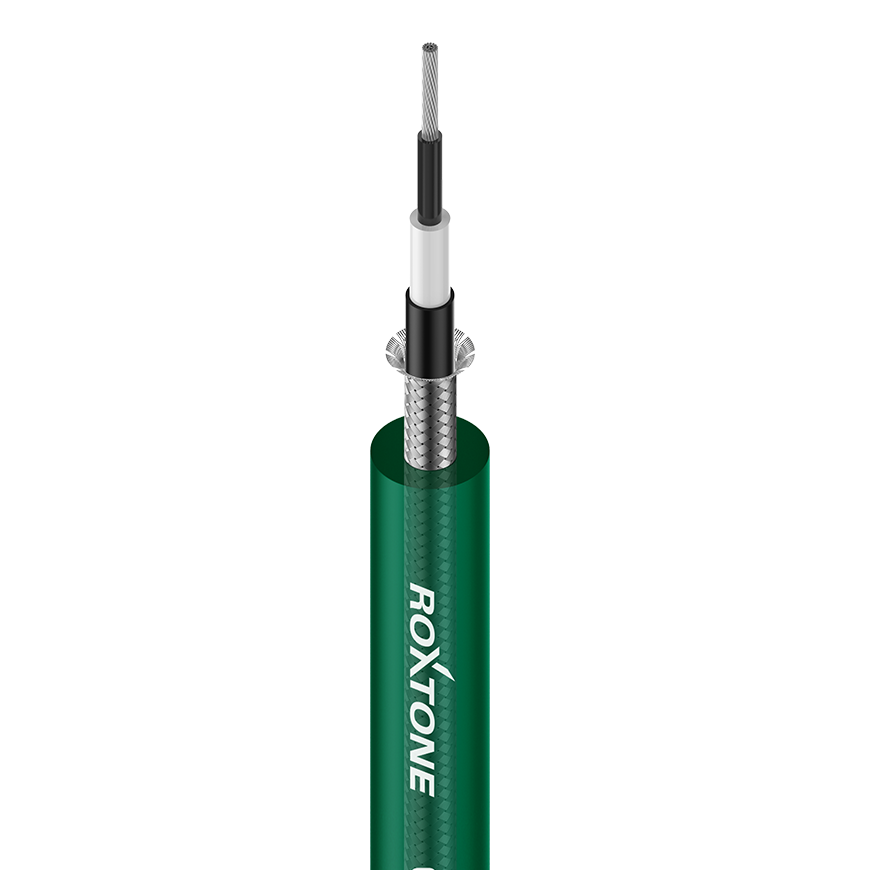

• Transparent green
• Transparent blue
• Transparent purple

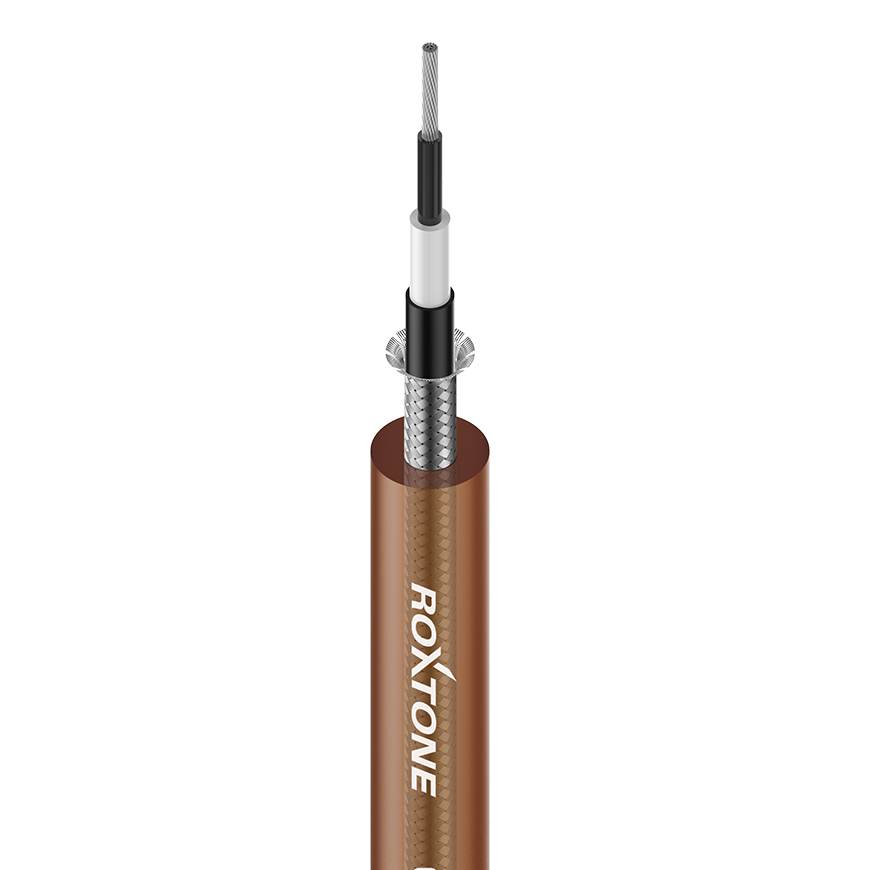

• Transparent brown


Technical Data

Jacket, diameter
PVC 7.0 mm
AWG
20
No. of inner conductors
1 x 0.5 mm²
Copper strand per conductor

28 x 0.15 mm tin

plated copper

Conductor insulation
PE 2.40 mm
Shielding

tin plated copper braided

shielding with

128 x 0.10 mm

+ semiconductor

Shielding factor
100 %
Temperature range
min.-20 °C
Temperature range
max.70 °C
Packaging
100/300 m roll


Electrical Data

Capac. cond./shield. per 1 m
130 pF
Cond. resistance per 1 km
39 Ω
Insulation resist. per 1 km
> 1 GΩ


Packaging

Wooden drum packaging


Carton drum packaging


Plastic drum packaging


Film packaging
