Features
• IP65 Waterproof
• Ruggedized and lockable RJ45 system
• Ergonomic heavy duty design with Zinc alloy shell
• Used for cable diameter 6.0-6.2mm / 6.5-6.8mm
• Patent-protected
• RJ45 plug is not included
Technical Data
|
|
Housing
|
Zinc alloy diecast
|
Strain-relief clamp
|
PA
|
Bushing
|
PA 30%GF
|
|
|
Order Code
|
Description
|

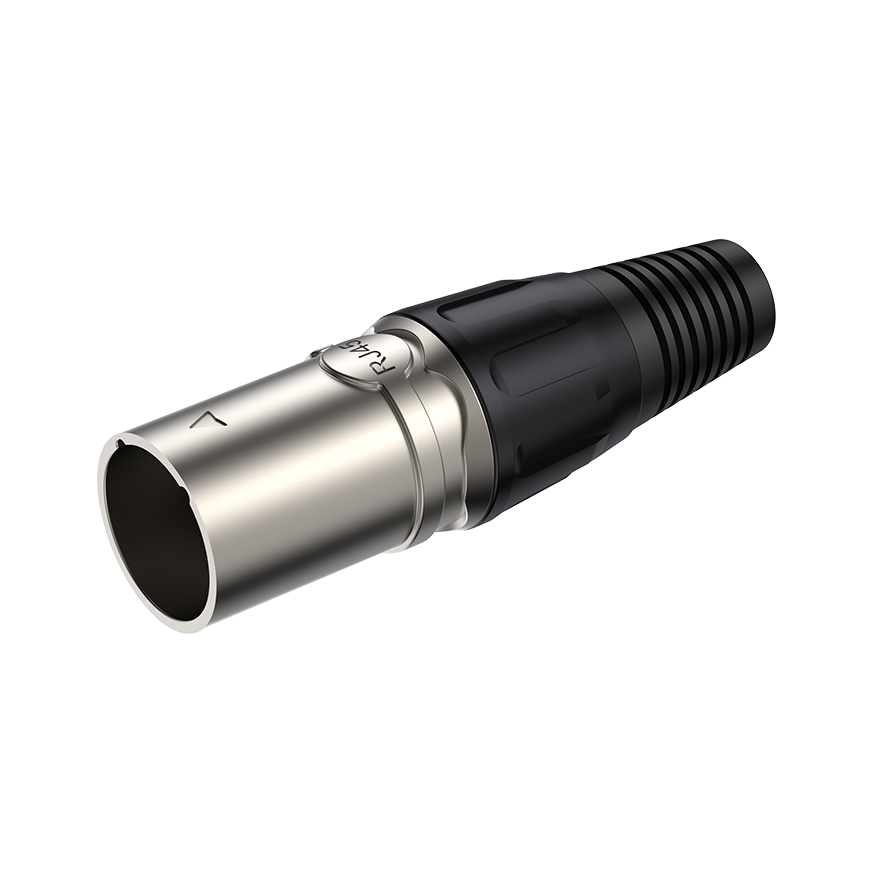

RE8MW
|
Connector housing in XLR-type for standard RJ45
|

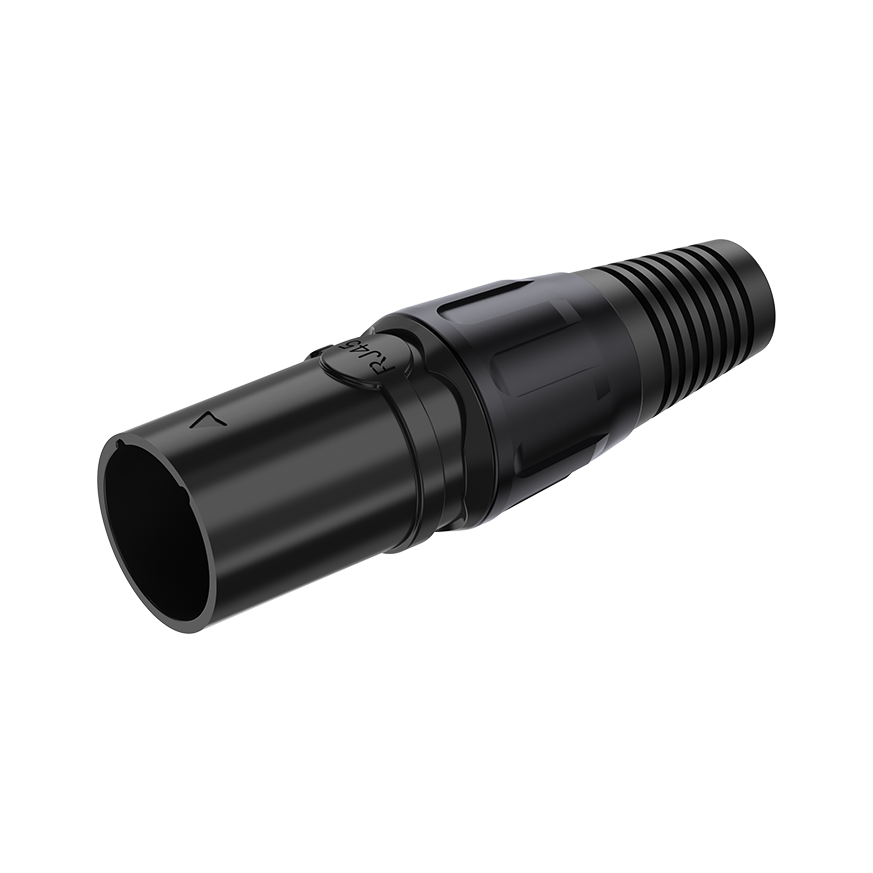

RE8MW-BK
|
Connector housing in XLR-type for standard RJ45
|

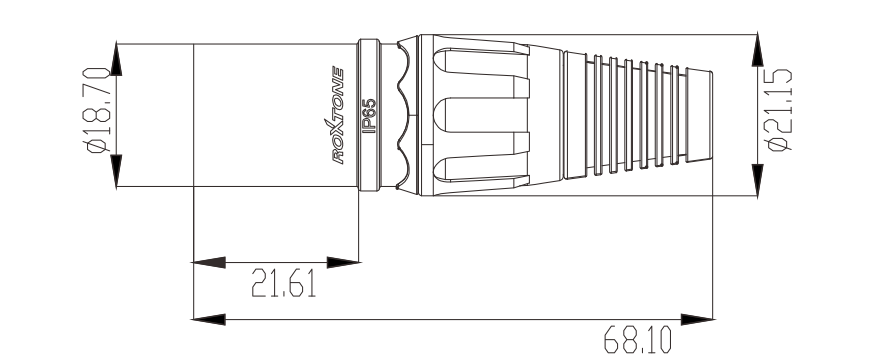

Engineering Drawing
