RX5F
5 pole XLR female, Nickel plated housing / Black housing
Qtys:
400
Unit: piece(s)
INQUIRY LIST

Features

• Ergonomic heavy duty design with Zinc alloy housing and PA 30% GR bushing
• Improved big button for latch lock
• Solid brass female contacts, increases conductivity and stablity
• ROXTONE brand engraved on the housing
• Replaceable color ring with a special strain-relief clamp for ease tightening the cable diameter from 3mm to 7mm
• Patent protected



Available Color Rings





Technical Data

Housing
Zinc alloy diecast
Insert
PBT
Contacts
Bronze
Contacts plating
Tin or Gold
Strain-relief clamp
POM
Bushing
PA 30% GR
Coding ring
PA6 30% GR


Order Code
Description
RX5F-NT
5 pole XLR female, Nickel plated housing, Tin plated contacts
RX5F-BG

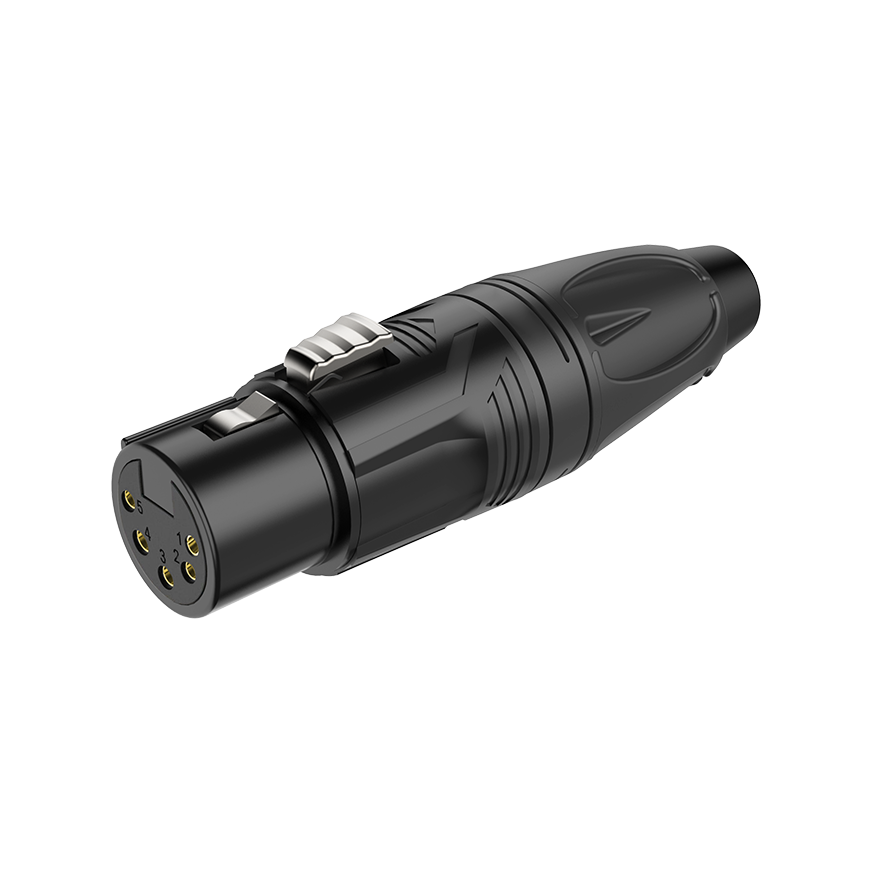

5 pole XLR female, Black housing, Gold plated contacts




Engineering Drawing




PACKAGING:
