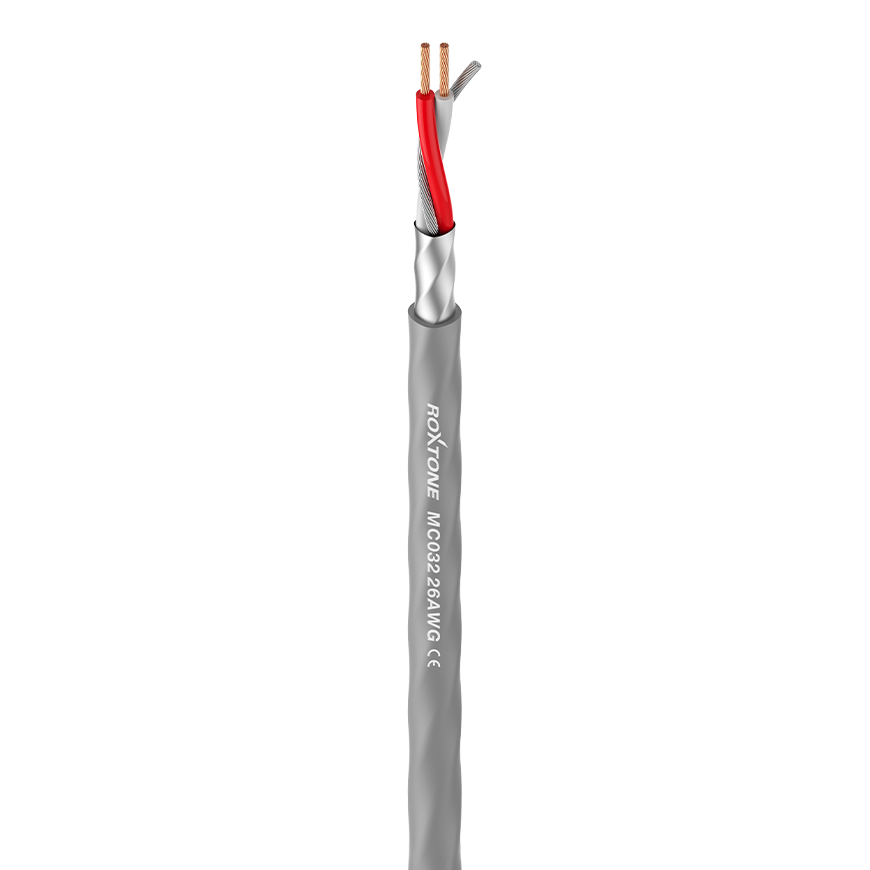

MC032
Balanced patch cable for installation - 26AWG - 2 x 0,18mm²

Features:
• Very thin PVC jacket with a diameter of 3.2mm, suitable for the wiring inside thecabinet, save more space

• Durability due to the special robust PVC jacket

• Use special LLDPE for the insulation, ensure a good electrical performanceand tensile strength

• Wonderful shielding 100% provided by AL fleece and drain wire

• Highly flexible due to a professional stranded wire technology


Applications:
• Internal wiring of racks
• audio and HiFi components


Cable Colour:
• Grey
• Black


TECHNICAL DATA:

Jacket, diameter
PVC 3,3mm
AWG
26
No. of inner conductors
2 x 0,18 mm²
Copper strand per conductor
16 x 0,12 mm
Conductor insulation
LLDPE 1,20 mm
Drain Wire
25 x 0,12mm Tin copper
Shielding
AL fleece
Shielding factor
100%
Temperature range
min. -20 °C
Temperature range
max. 70 °C
Packaging
100/300 m roll


ELECTRICAL DATA:

Capac. cond./cond. per 1 m
73 pF
Capac. cond./shield. per 1 m
120 pF
Cond. resistance per 1 km
127Ω


Packaging:

Wooden drum packaging



Carton drum packaging


Plastic drum packaging



Film packaging
