Features

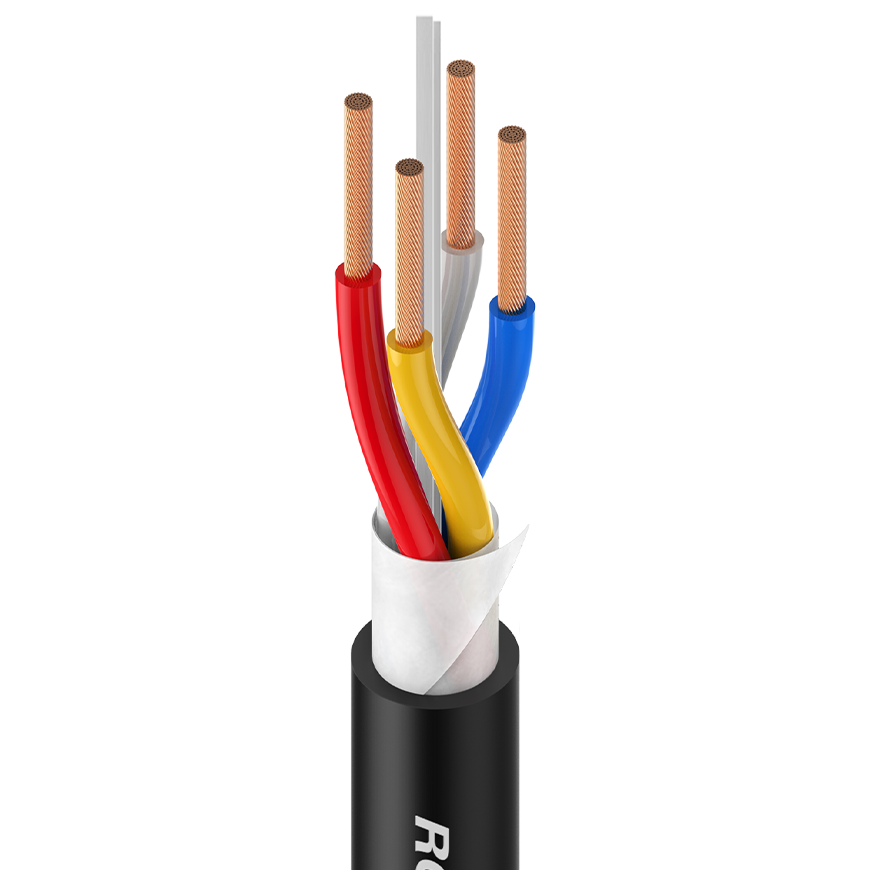

• Soft PVC jacket and cores twisted to a StarQuad grant a perfectwinding
• Loss-free transmission due to the special stranding
• Easy to work with due to good insulation and numbered wiring
Applications
• Professional PA/sound systems
• Surround and woofer systems
• For fixed installation in building technology
Cable Colour
• Black
• Blue
Technical Data
|
|
|
|
|
Order Code
|
SC040B
|
SC040C
|
SC040D
|
Jacket, diameter
|
PVC 10.5 mm
|
PVC 11 mm
|
PVC 13.2 mm
|
AWG
|
14
|
14
|
12
|
No. of inner conductors
|
4 x 2.0 mm²
|
4 x 2.5 mm²
|
4 x 4.0 mm²
|
Copper strand per conductor
|
64 x 0.20 mm
|
80 x 0.20 mm
|
80 x 0.25 mm
|
Cond. PVC insulation, diameter
|
2.9 mm
|
3.1 mm
|
4.0 mm
|
Temperature range
|
min. -20 °C
|
min. -20 °C
|
min. -20 °C
|
Temperature range
|
max. +70 °C
|
max. +70 °C
|
max. +70 °C
|
Packaging
|
100/300 m roll
|
100/300 m roll
|
100/300 m roll
|
|
|
|
|
|
Electrical Data
|
|
|
|
Capac. cond./cond. per 1 m
|
102 pF
|
110 pF
|
108 pF
|
Cond. resistance per 1 m
|
7 mΩ
|
5.2 mΩ
|
3.9 mΩ
|
