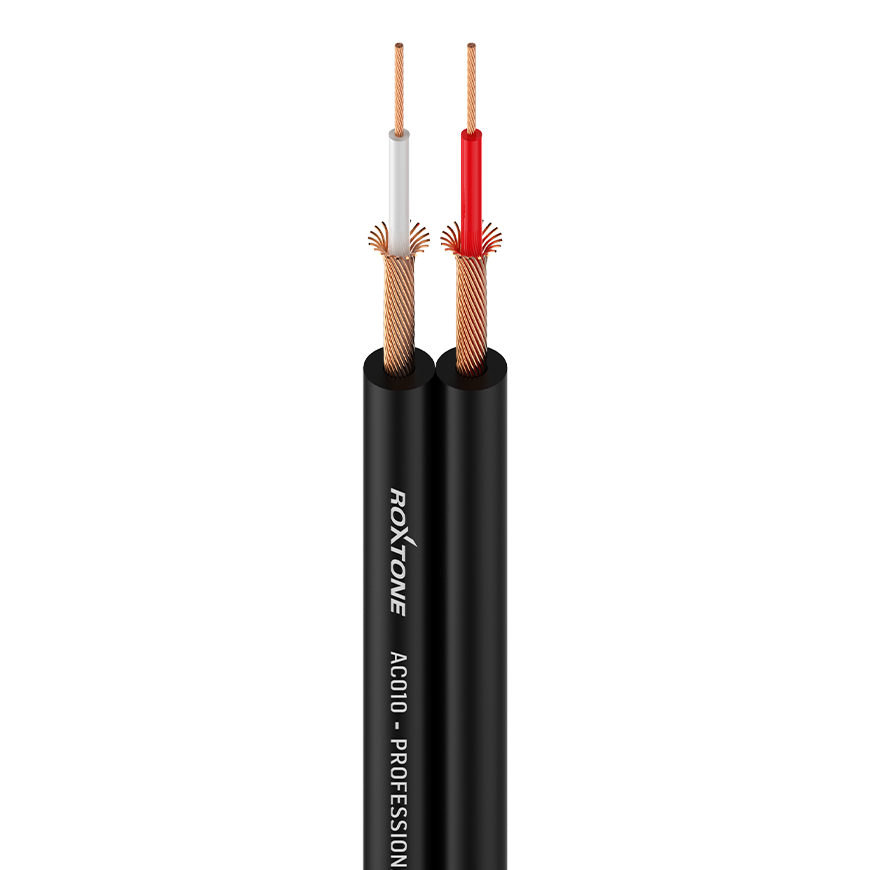

AC010
Flat audio cable - 26AWG - 2 x 1 x 0,14mm²

Features:
• Very flexible due to the use of fine individual stranding

• Every conductor is insulated and individually shielded with copper spiral shielding

• Small jacket diameter, ensuring easy handling with RCA and jack connectors


Applications:
• Cabling for unbalanced units (keyboards)

• Connection of HiFi-units

• Construction of Y-adapter cables

• Manufacture of insert cables


Cable Colour:
• Black
• Blue


TECHNICAL DATA:

PVC Jacket, diameter
4 x 8 mm
AWG
26
No. of inner conductors
2 x 1 X 0,14 mm²
Copper strand per conductor
18 X 0,10mm
Conductor insulation
PE
Shielding

copper spiral shielding

Shielding factor
90 %
Temperature range
min.-20 °C
Temperature range
max.70 °C
Packaging
100/300 m roll


ELECTRICAL DATA

Capac. cond./shield. per 1 m
250 pF
Cond. resistance per 1 km
125 Ω
Insulation resist. per 1 km
> 1 GΩ


Packaging:

Wooden drum packaging



Carton drum packaging


Plastic drum packaging



Film packaging
